Seat Switch Pack

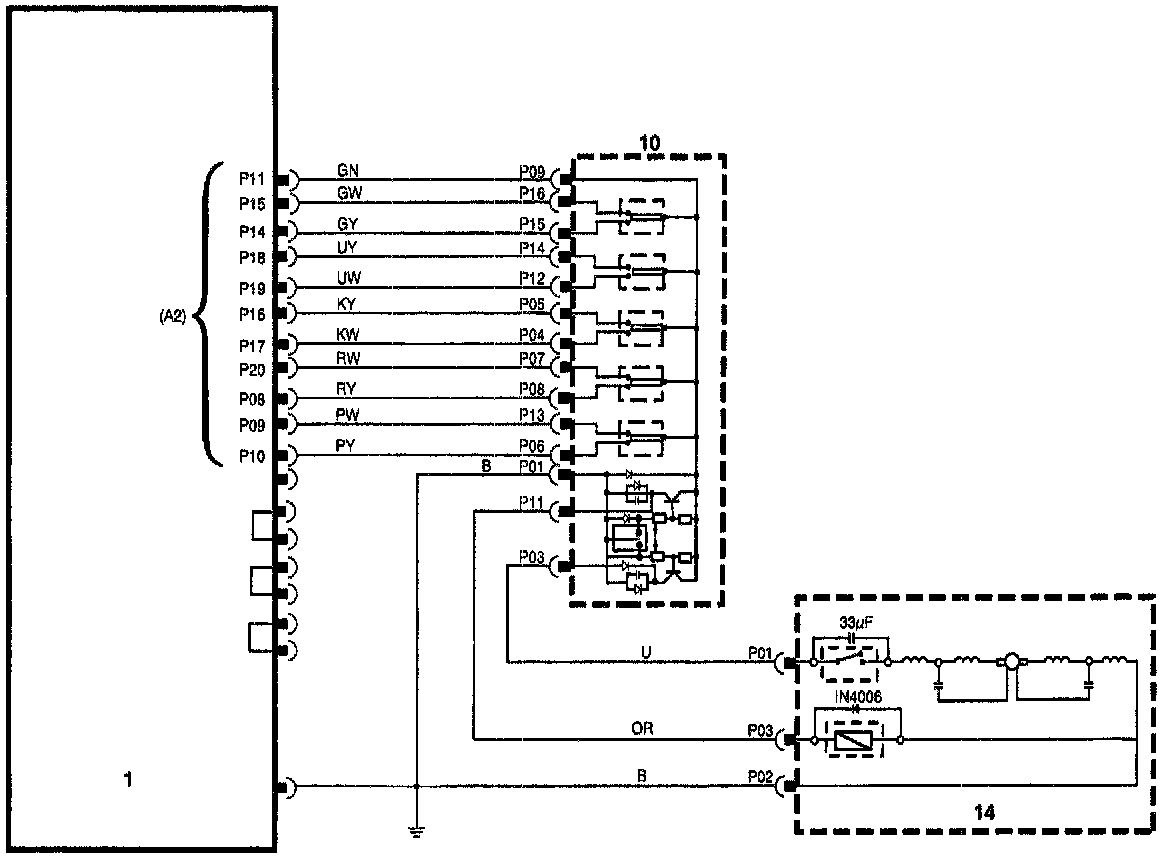

Seat Switch Pack, Fig.1:

7.
a. Examine harness wiring, checking continuity between SCM multi-pin connector A2 and switch pack connector pins as follows:

A2 Pin Function Pack pin
08 Squab recline 08
09 Seat reward 13
10 Seat forward 06
11 Common +ve 09
14 Headrest lower 15
15 Headrest raise 16
16 Seat rear lower 05
17 Seat rear raise 04
18 Seat front lower 14
19 Seat front raise 12
20 Squab incline 07


b. Disconnect harness from switch pack and check continuity of each pin to common +ve (pin 9) when relevant switch is operated e.g. operation of seat forward switch will give continuity between pin 9 and pin 6 of the pack.
c. Test the operation of the lumbar pump switches (at pins, 03 and 11) by checking that voltage on each pin toggles between ground and +12 V with each switch operation.
