Power Operated

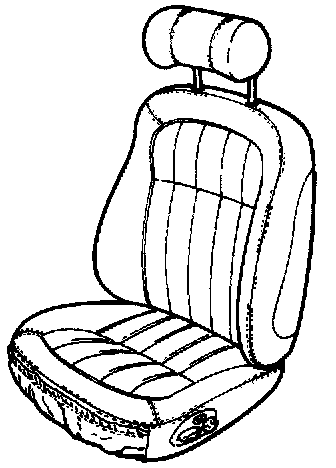

Fig. 1:

- Position seat as required for access.
- Disconnect vehicle battery ground lead.
- Release sound insulation retainers and displace insulation.
- Remove the seat forward fixings and move the seat fully forward.
- Remove the seat rearward fixing covers and remove the seat rearward fixings.
- Disconnect multi-plugs, seat switch and motor harness to SCM.
- Remove seat assembly (Fig.1) from vehicle.

Refit in the reverse order of the removal procedure.
