Sliding Roof Panel Trim Assembly

- Switch ignition on, open sliding roof to fully open tilt position.
- Switch ignition off.
- Displace trim panel front corners from slider mechanism pegs by pulling trim panel rearwards.

NOTE: Trim panel has detent spring fitted at front corner for slider mechanism peg engagement.

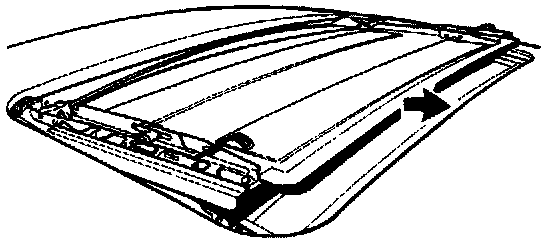

- Carefully remove trim panel (Image) rearwards through open aperture and place aside..

NOTE: Ensure trim panel central guide lugs are above mechanism tilt levers.

Refit in the reverse order of removal procedure.
