Rear Seat

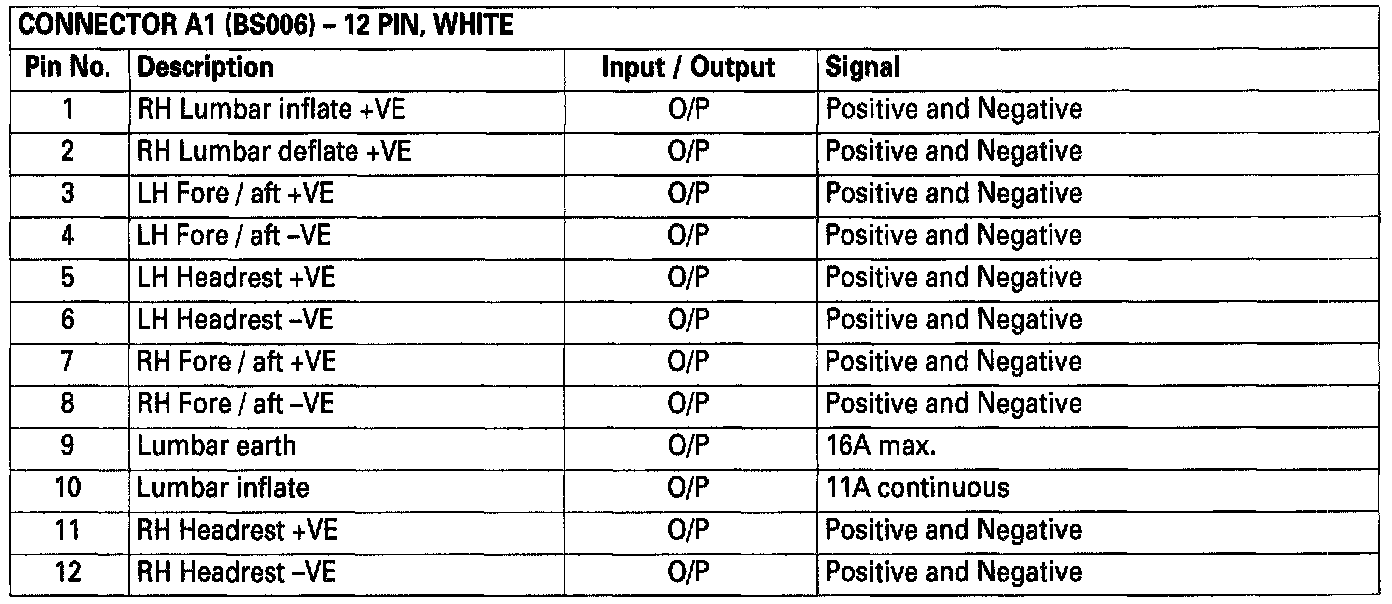

Seat Control Module Connector Pin Connections (Part 1 of 3)

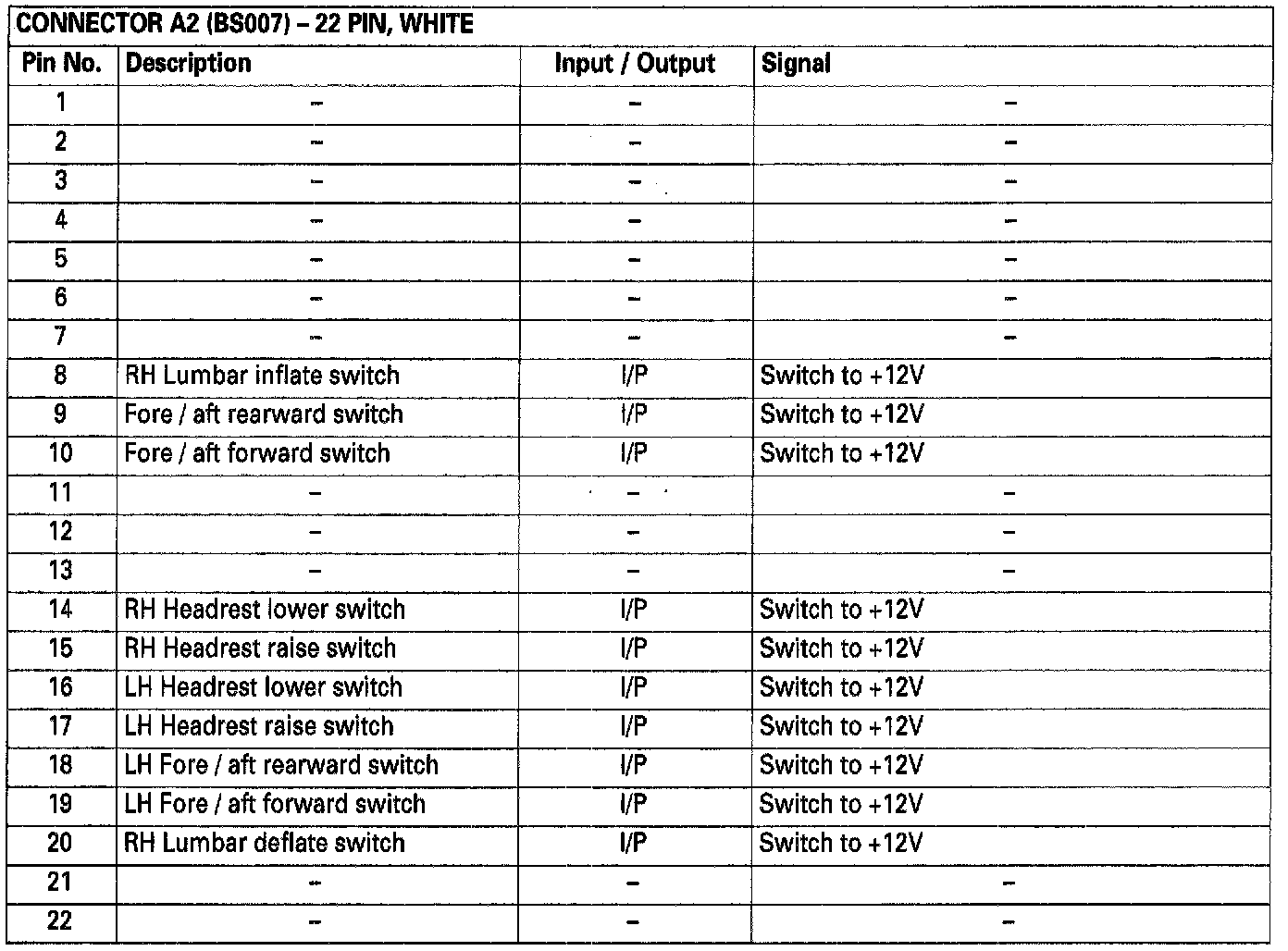

Seat Control Module Connector Pin Connections (Part 2 of 3)

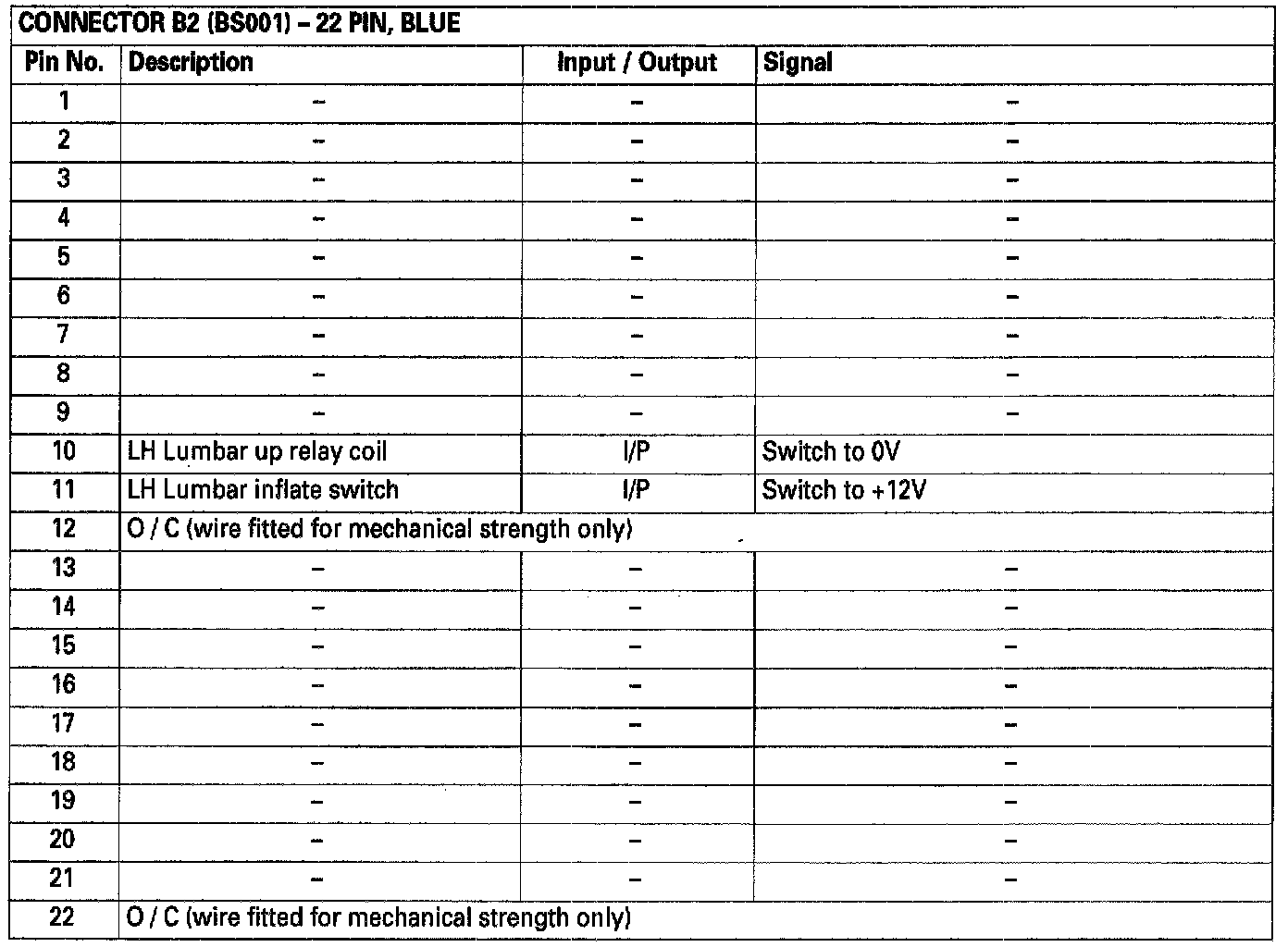

Seat Control Module Connector Pin Connections (Part 3 of 3)
