Front Seat

Connectors A1 and A2 form the seat internal harness interface. Connectors B1 and B2 form the cabin/seat link harness interface

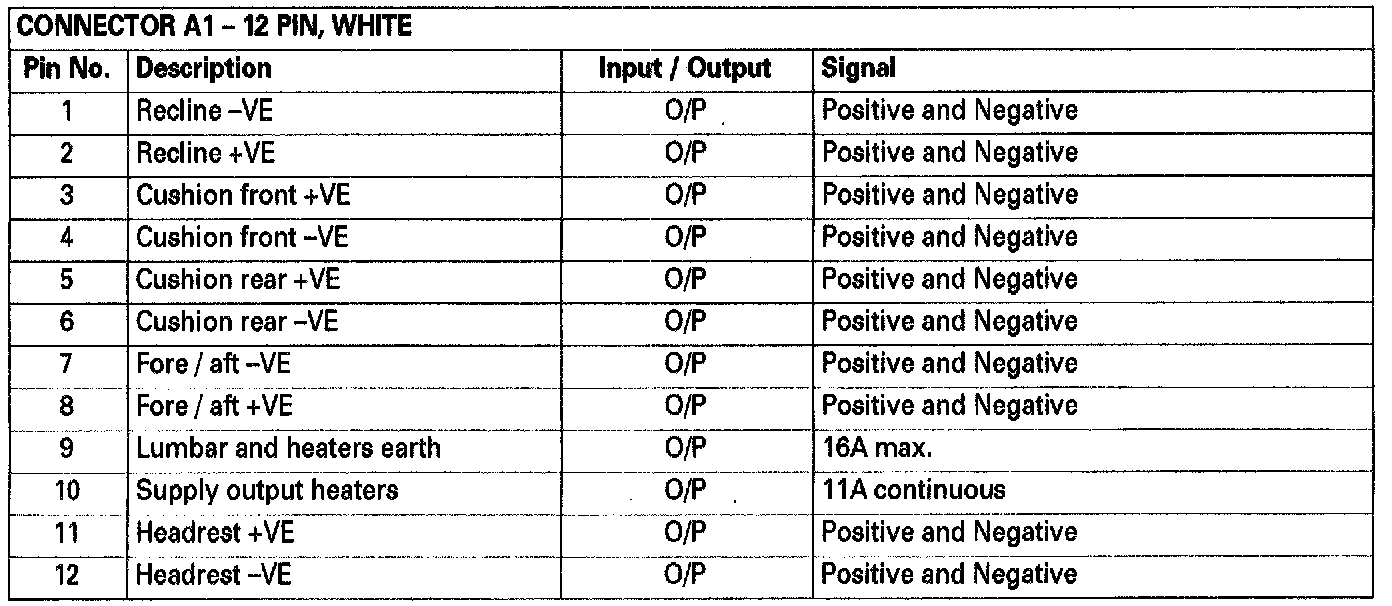

Connector Pin Description (Part 1 of 4)

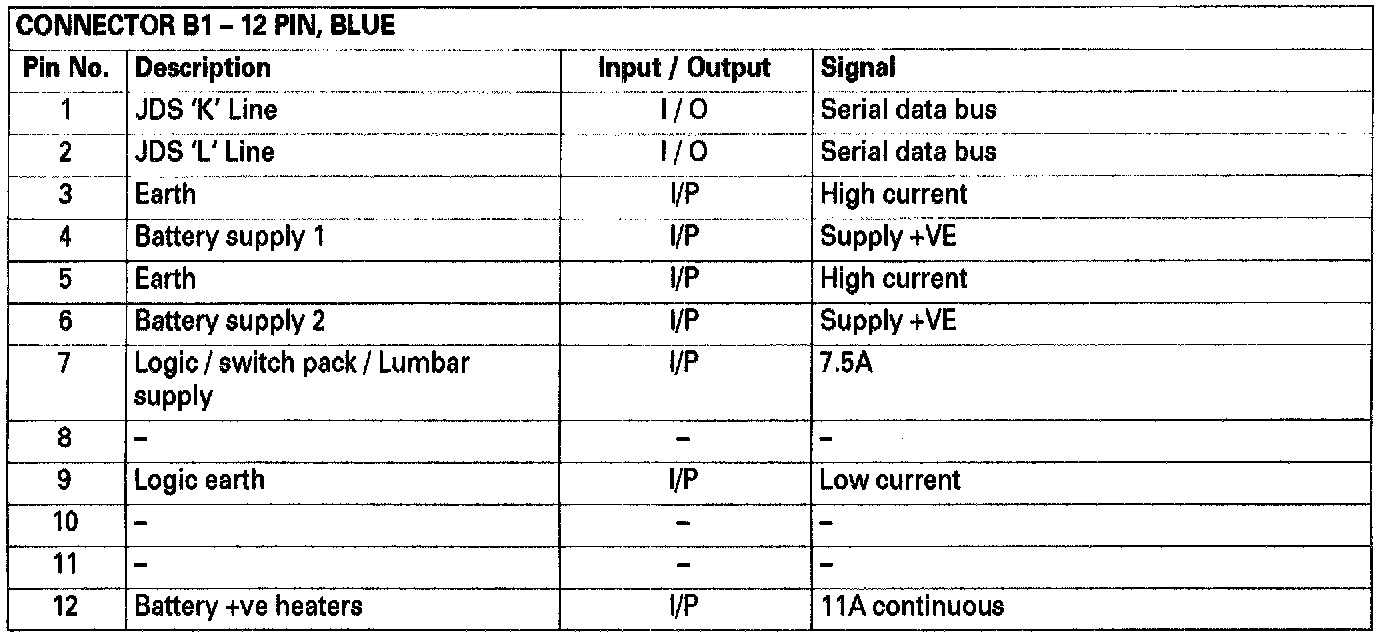

Connector Pin Description (Part 2 of 4)

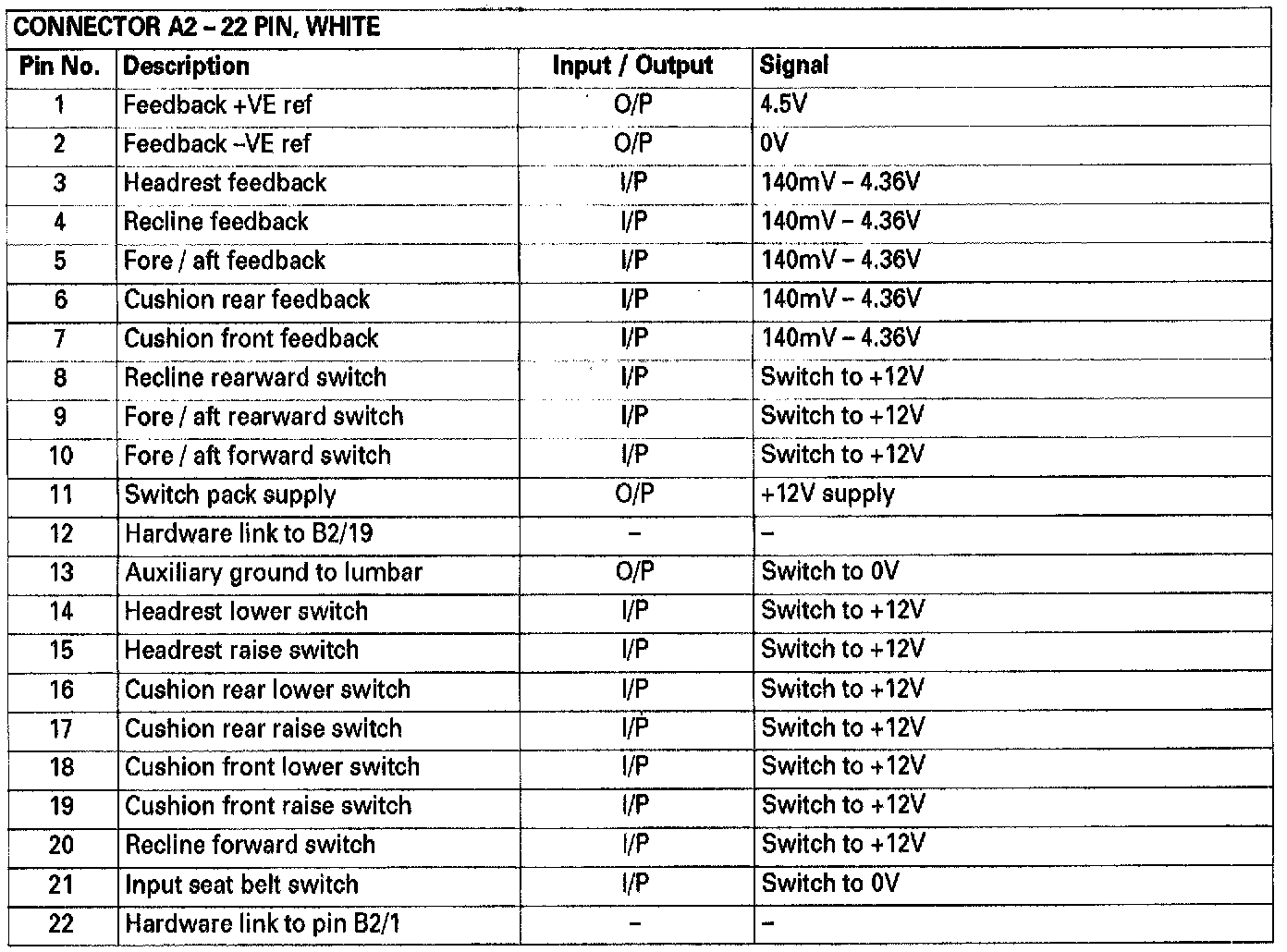

Connector Pin Description (Part 3 of 4)

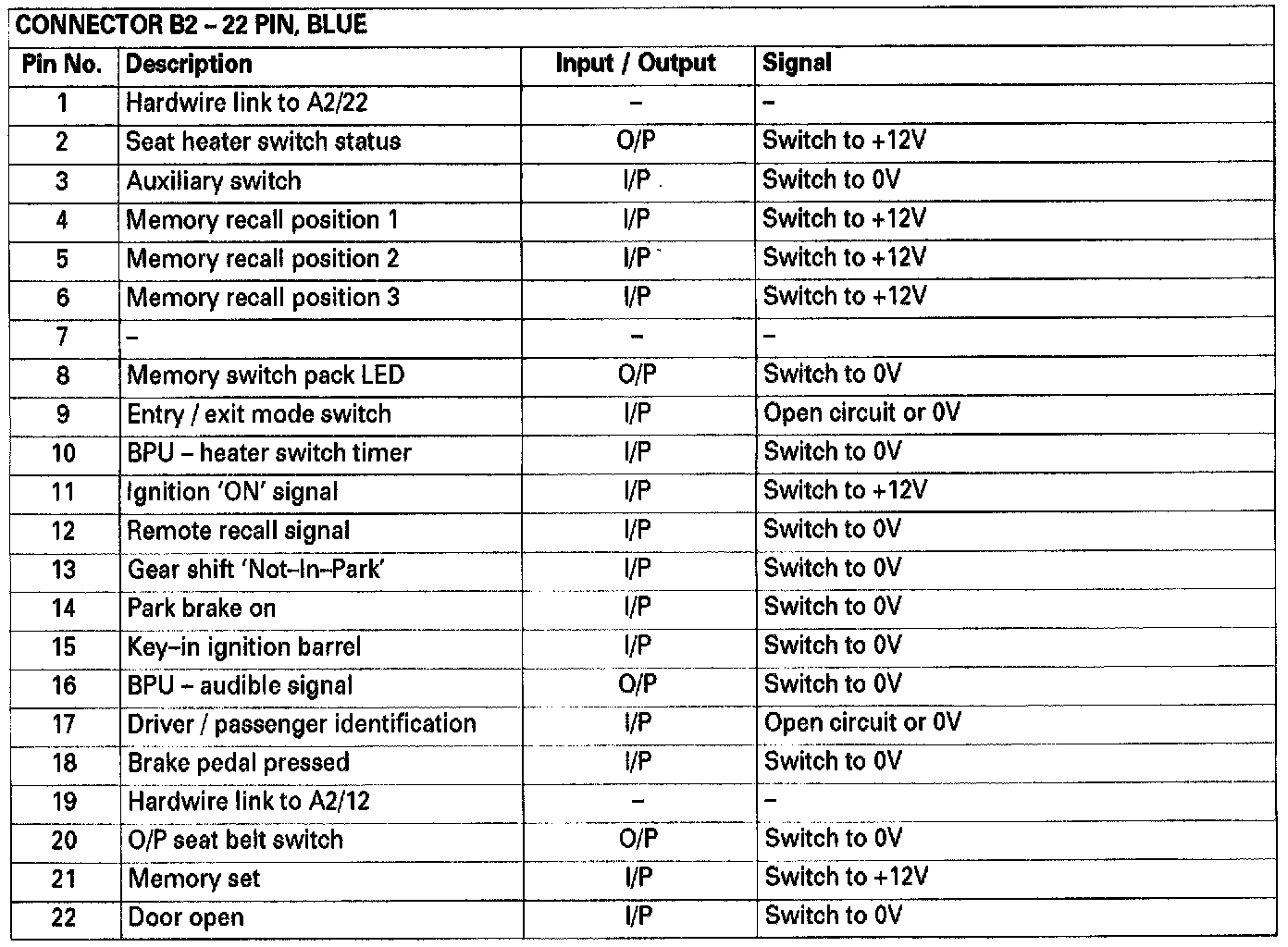

Connector Pin Description (Part 4 of 4)
