Approved Paint Systems

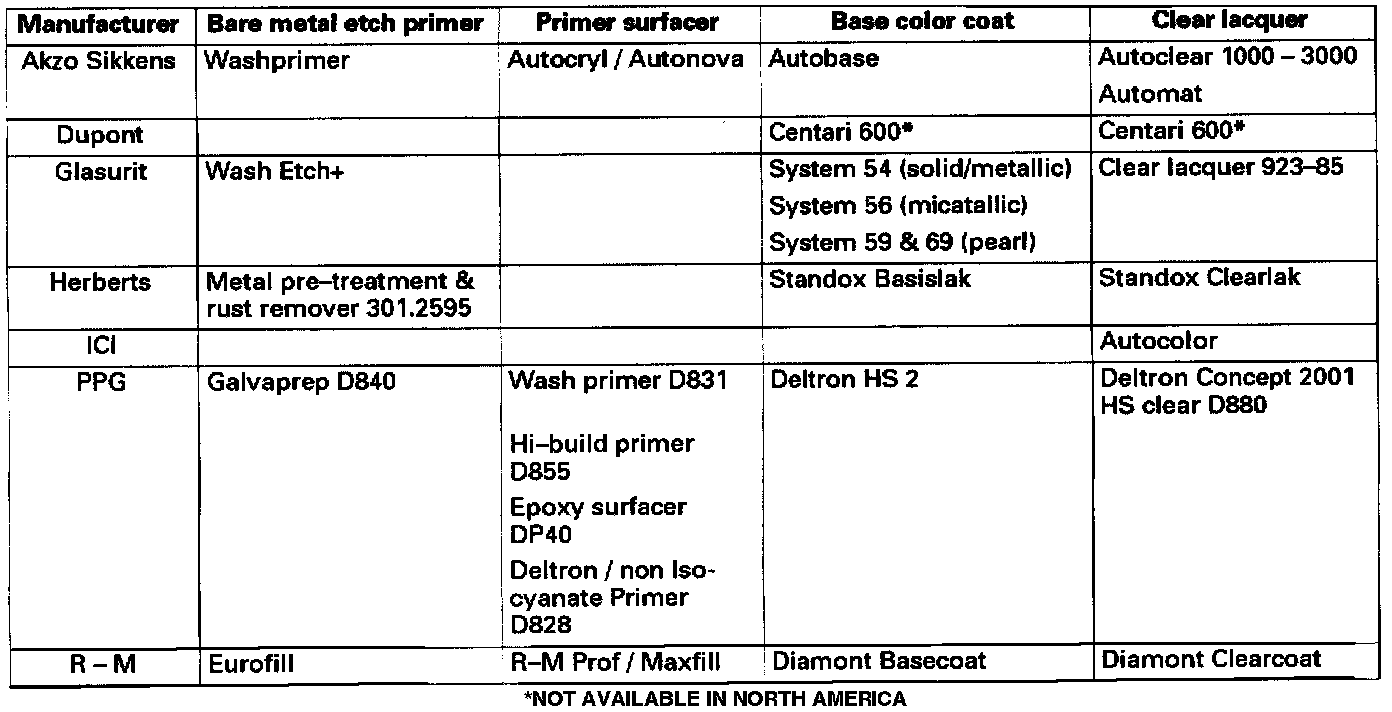

The manufacturer's paint systems listed in Image are currently approved for refinishing Jaguar vehicles.





NOTE: * Not available North America

In markets which do not support any of the nominated systems, alternatives may be used, provided that they comply with the following company standards.

Product type: Applicable standard:

Bare metal etch primer JMS 20.29.06
Primer surfacer JMS 20.29.11
Base color and clear lacquer JMS 20.29.09

CAUTION: To avoid damage to the vehicle interior, trim and plastic items, effective panel temperature must not exceed 95°C during paint cure process.
