Interior Rear View Mirror

- Disconnect vehicle battery ground lead.

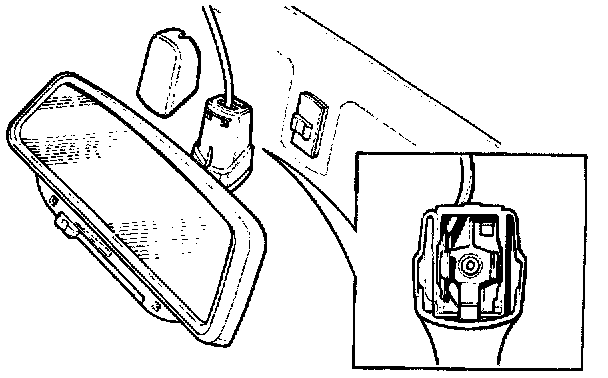

- Rotate mirror stem approximately one quarter turn clockwise to release stem from spring contact on windscreen boss.
- Disconnect mirror harness.
- To refit, locate mirror stem base on windscreen boss with stem parallel to top of windscreen, ie one quarter turn displaced from normal position; apply firmly over boss and turn anti-clockwise to lock stem on windscreen boss.

Refit in the reverse order of the removal procedure.
