Electrical Diagrams

A*�Central Door Locking-NAS:

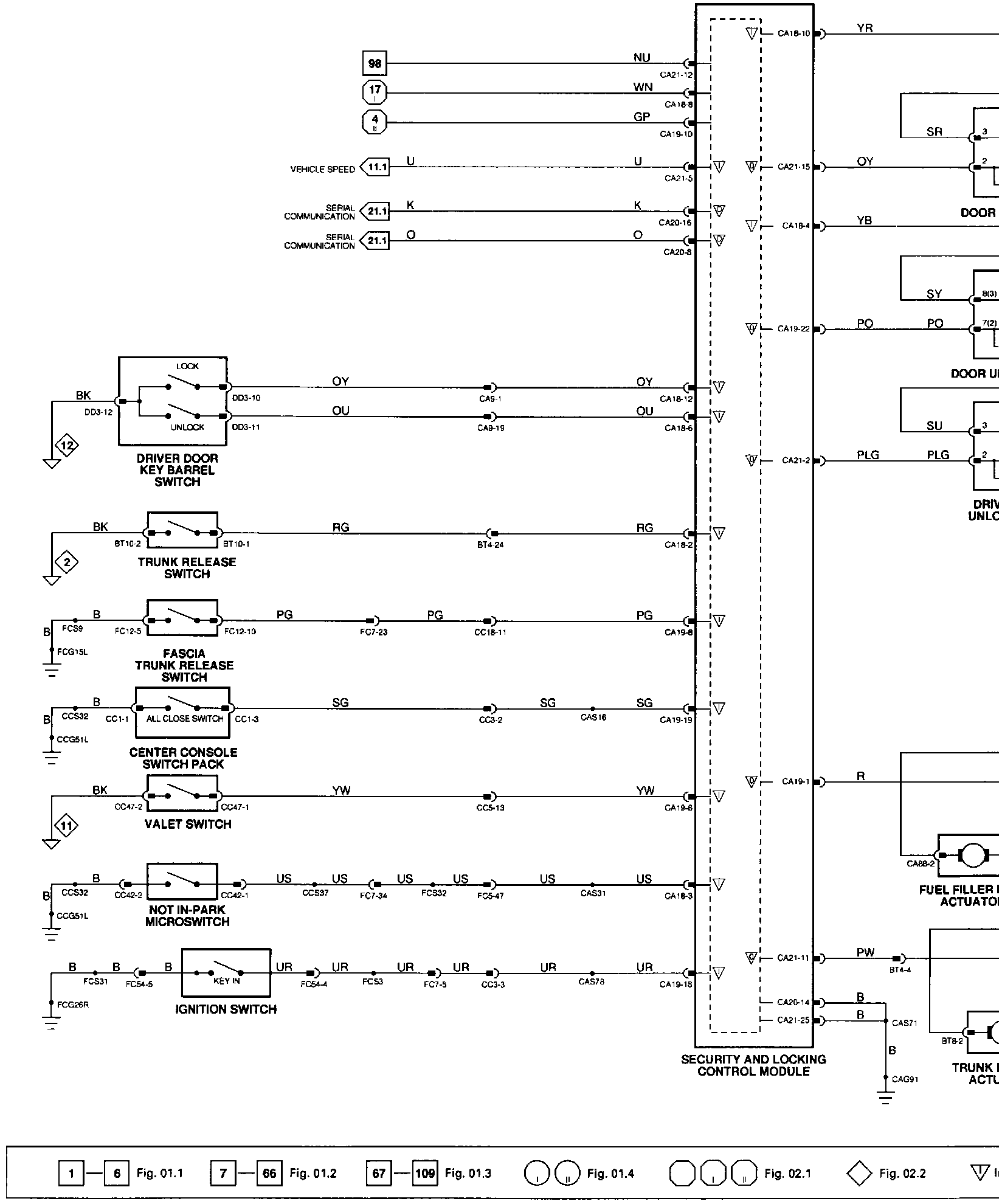

Wiring Diagram

Use the Hyperlink (VIEW) button to access Figure Numbers referred to in the wiring diagram. Refer to -- Vehicle / Diagrams Electrical Diagrams

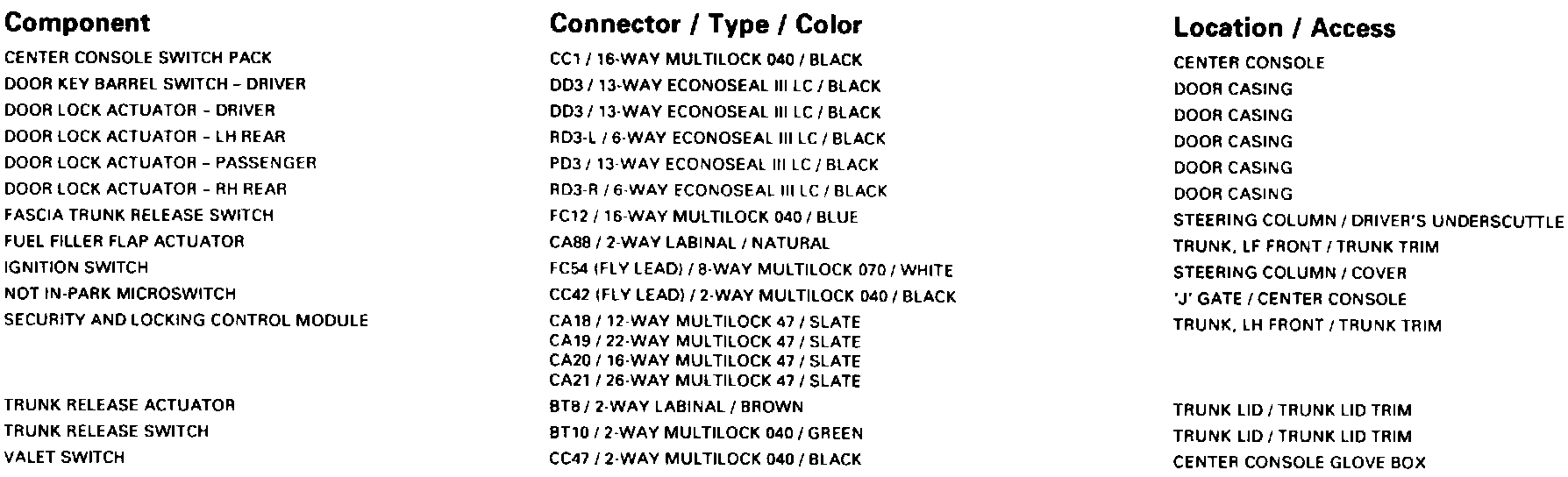

Central Door Locking-NAS: Components:

Component Information

Central Door Locking-NAS: Relays:

Relay Information

Central Door Locking-NAS: Harness-To-Harness Connectors:

Harness-To-Harness Connectors Informations

Central Door Locking-NAS: Grounds:

Ground Information

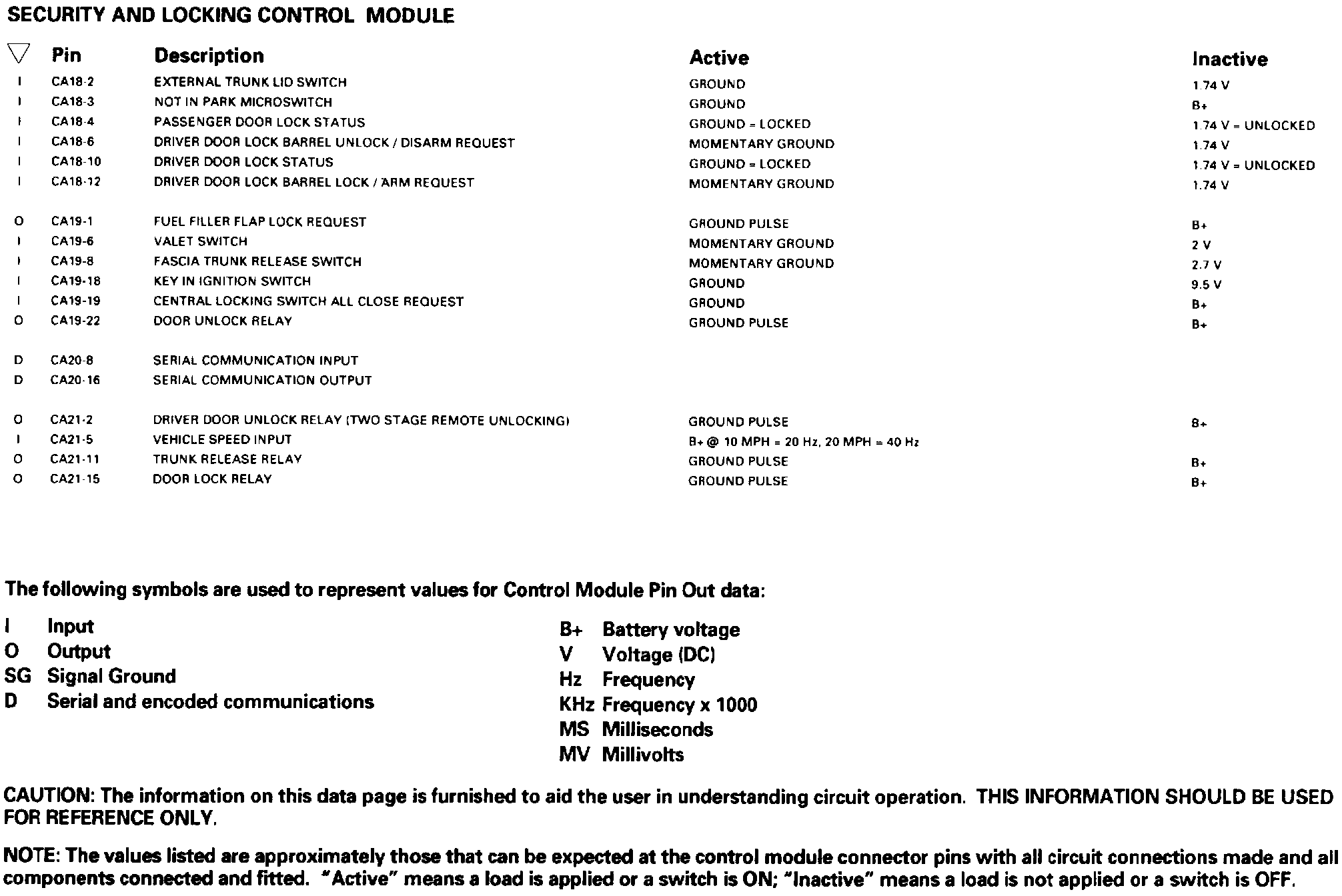

Central Door Locking-NAS: Control Module Pin Out Information:

Control Module Pin Out Informations
