Drivers Side

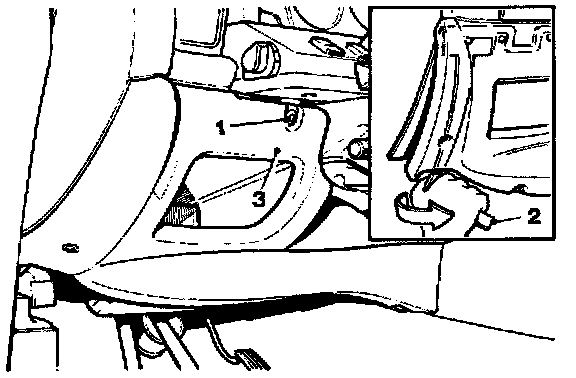

Fig. 1:

- Motor the drivers seat fully rearwards.
- Undo and remove the underscuttle pad securing screws (1 Fig. 1).
- Using special tool JD 188(2 Fig. 1), displace securing clip.
- Displace and reposition the underscuttle pad assembly (3 Fig 1).
- Disconnect the air conditioning aspirator multi-plug.
- Remove the underscuttle pad.

Refit in the reverse order of the removal procedure.
