Radio Console

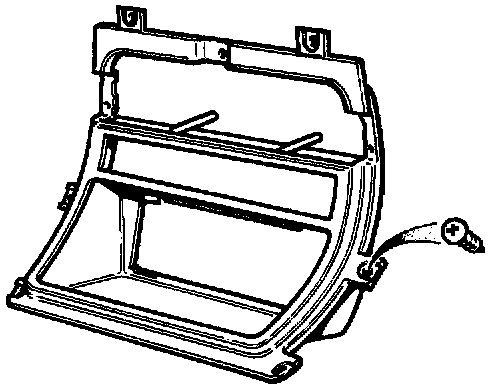

Fig. 1:

- Remove the battery cover. Disconnect the battery.
- Remove the console ashtray.
- Remove console veneer panel.
- Remove the gear selector ident plate securing screws.
- Carefully reposition the radio console assembly from the mounted position.
- Disconnect the assembly harness multi-plugs.
- Disconnect the antenna co-axial connector.
- Undo and remove the ground lead to radio securing nut.
- Reposition the ground lead from radio stud.
- Disconnect the radio harness multi-plugs.
- Reposition the radio harness from the center console.
- Displace the radio console assembly.
- Remove the radio assembly from the console.
- Remove the radio retaining plate.
- Undo and remove the air conditioning control module securing screws.
- Displace and remove the module.
- Undo and remove switch/clock module securing screws.
- Displace and remove the module assembly.
- Place the radio console (Fig.1) aside.

Refit in the reverse order of the removal procedure.
