Gear Selector Trim & Mode Switch

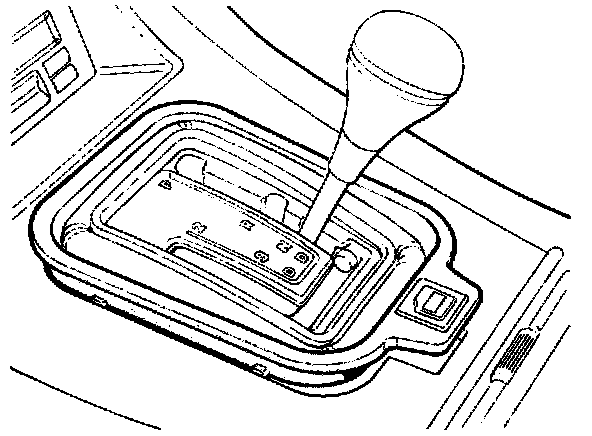

Fig. 1:

- Displace and remove the selector chrome and leather trim finisher.
- Refit the mode switch finisher.
- Refit the mode switch.
- Carefully displace and remove the gearshift aperture plastic finisher, (Fig.1).
- Remove the mode switch (Fig.1) (4.0 Liter, 4.0 Liter SC & 6.0 Liter).
- Remove the mode switch finisher (Fig.1) (4.0 Liter, 4.0 Liter SC & 6.0 Liter).

Refit in the reverse order of the removal procedure.
