Cupholder Assembly

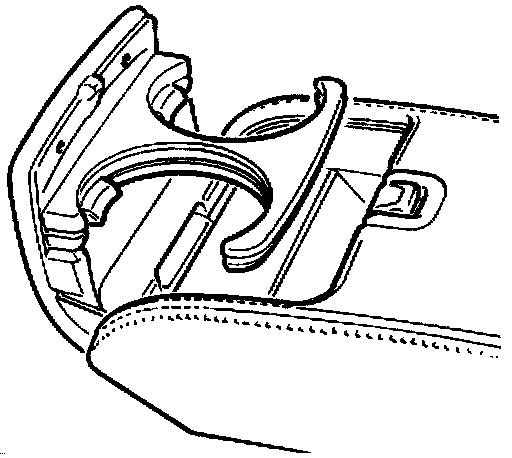

Fig. 1:

- Remove the console glove box lid.
- Undo and remove the inner lid securing screws.
- Displace and remove the inner lid.
- Open the cupholder.
- Undo and remove the cupholder trim panel securing screws.
- Displace and remove the trim panel assembly by releasing the lower edge and then displacing upwards.
- Displace and reposition the cupholder assembly from base (upholder remains captive by spring).
- Using a suitable implement, disconnect the the spring from the base and remove the cupholder.
- Disconnect the return spring from the cupholder and place the cupholder (Fig.1) aside.

Refit in the reverse order of the removal procedure.
