Console Glove Box

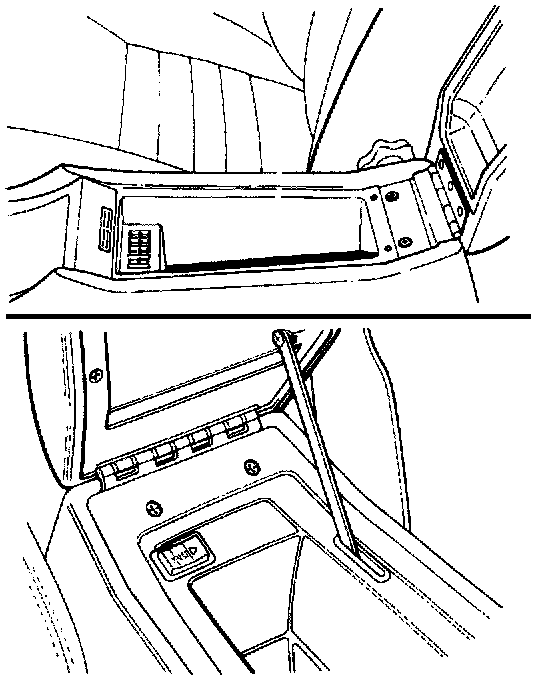

Fig. 1:

- Open the console glove box lid.
- Undo and remove the glove box lid checkarm to lid securing screw.
- Reposition the checkarm.
- Undo and remove the glove box/ashtray securing screws.
- Carefully displace the ashtray upwards for access.
- Displace and remove the ashtray lid catch.
- Displace and reposition the glove box assembly.
- Disconnect the security valet switch harness multi-plug.
- Remove the glove box.
- Place the glove box to the front.
- Displace and remove the valet switch.
- Displace and remove the glove box lid checkarm.
- Displace and remove the glove box lid checkarm guide.
- Place the glove box (Fig.1) aside.

Refit in the reverse order of the removal procedure.
