Center Console Veneer Panel

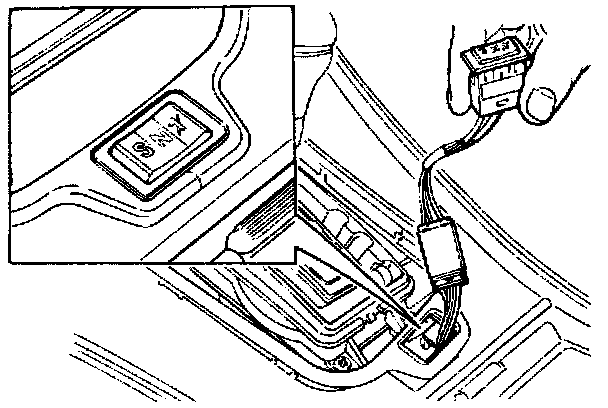

Fig. 1:

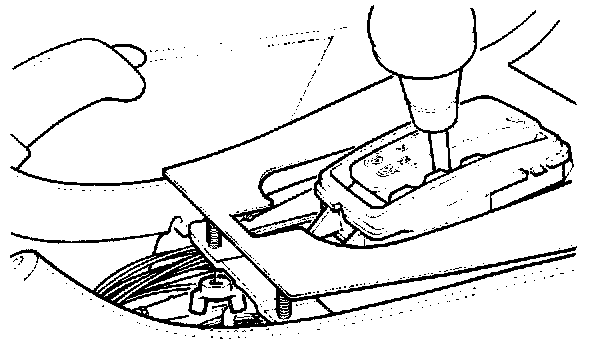

Fig. 2:

- Apply the handbrake.
- Turn the ignition ON.
- Press the brake pedal and position the gear selector in 'N'.
- Turn the ignition OFF.
- Remove the console ashtray.
- Carefully displace the mode switch from the gear surround finisher. See Fig. 1.
- Disconnect the mode switch from the harness multi-plug. See Fig. 1.
- Displace and remove the switch surround finisher.
- Displace and remove the gear lever surround finisher.
- Displace and remove the veneer panel rear finisher.
- Undo and remove the veneer panel wing nuts. See Fig. 2 and remove the console finisher veneer panel.
- Remove the stud plates.
- Place the veneer panel aside.

Refit in the reverse order of the removal procedure.
