Center Console Ashtray

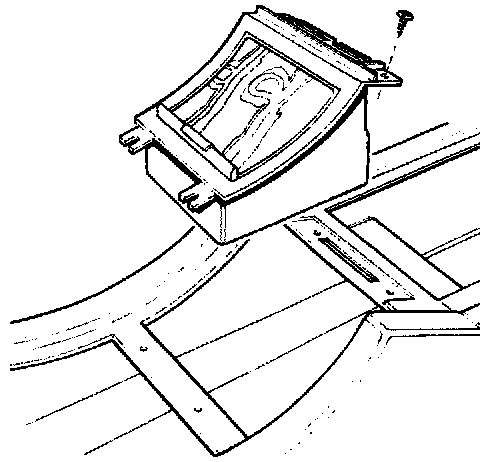

Fig. 1:

- Raise the trunk lid.
- Remove the battery cover and disconnect the battery.
- Open the glove box lid.
- Undo and remove the ashtray assembly securing screws.
- Displace the ashtray for access.
- Disconnect cigar lighter/illumination Lucar connectors.
- Displace and remove the ashtray assembly.
- Place the ashtray assembly to the front.
- Open the ashtray lid.
- Displace and remove the inner ashtray.
- Displace and remove the cigar lighter element assembly.
- Carefully displace and remove the cigar lighter illumination bulb holder assembly.
- Carefully displace and remove the cigar lighter assembly from the ashtray.
- Carefully remove and discard the ashtray surround veneer panel securing clips.
- Displace and remove the ashtray surround veneer panel.
- Carefully remove and discard the ashtray lid veneer panel securing clips.
- Close the ashtray.
- Displace and remove the ashtray lid veneer panel.
- Displace and remove the inner ashtray retaining clips.
- Place the ashtray (Fig.1) aside.

Refit in the reverse order of the removal procedure.
