Trunk Liner

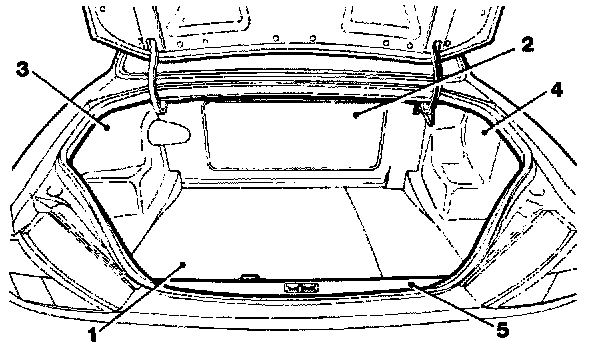

Fig. 1:

- Raise trunk lid.
- Remove the trunk floor carpet (1 Fig. 1).
- Remove the trunk battery cover (6 Fig.1).
- Remove the trunk front liner (2 Fig. 1).
- Remove the trunk seal retainer (5 Fig. 1) as in 13.4.3.
- Displace and remove the trunk side liner (3 Fig. 1), passing the fuel filler manual release cable through the liner.
- Displace and remove the trunk side liner (4 Fig. 1
- Remove the warning triangle (UK & Europe only.)
- Undo and remove the warning triangle retaining bracket screws and remove bracket.
- Remove trunk lamp (Trunk Lid Liner).
- Release fir-tree fasteners and remove lid liner (Trunk Lid Liner).

Refit in the reverse order of the removal procedure.
