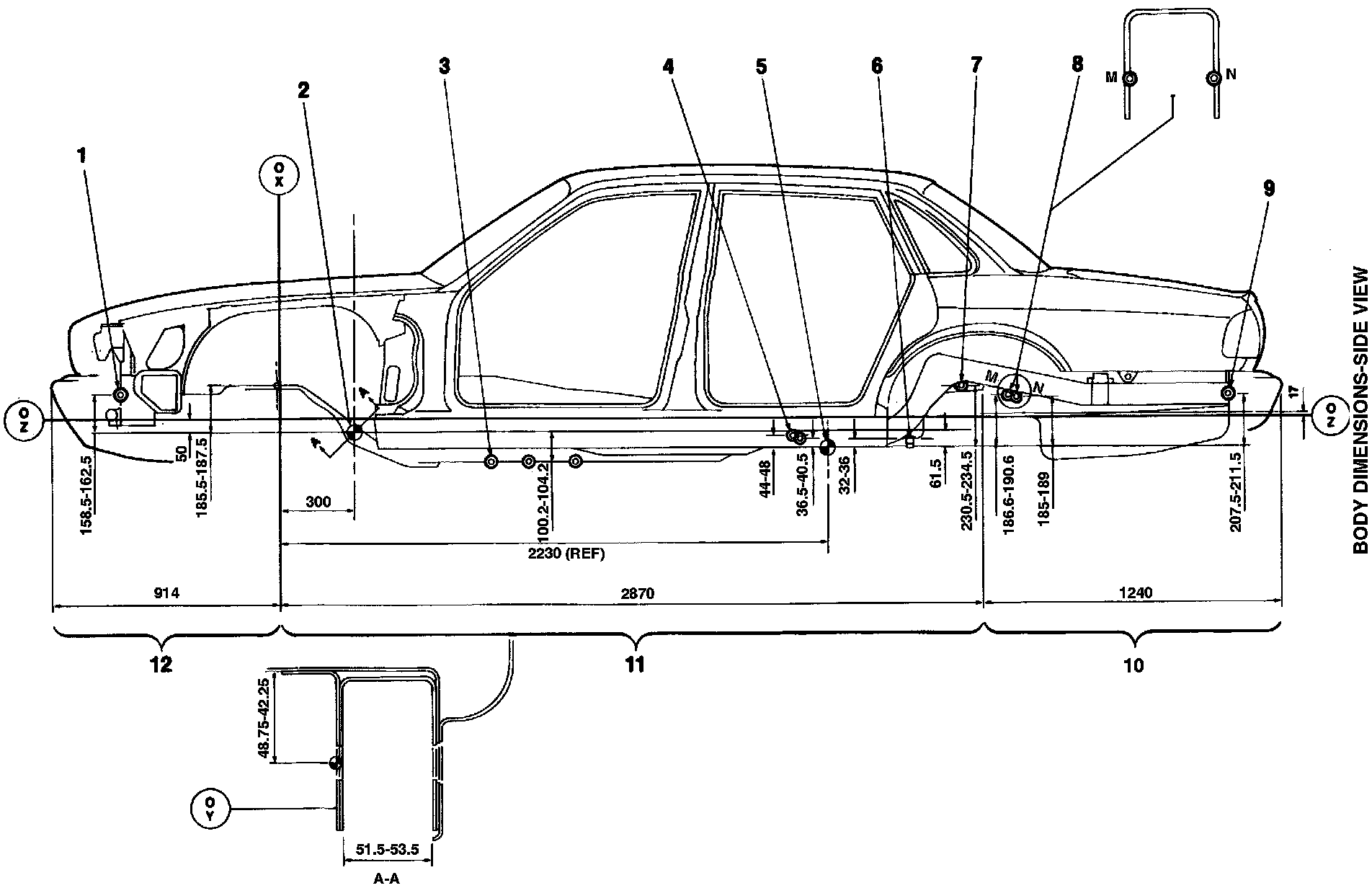

Body Dimensions Side View

Key Location

1. Front face body - bumper strut / mounting point
2. Front Master Datum Vertical, center line of the front crossmember rear mounting
3. Transmission mountings at the main floor longitudinal
4. Driveshaft center bearing fixings
5. Rear Master Datum Vertical, rear longitudinal
6. Tapped boss, rear suspension 'A' frame mounting bush
7. Rear suspension spring-pan damper mounting
8. Rear suspension differential strut mounting
9. Rear face body - bumper strut / mounting point
10. Wheel center to bumper cover face
11. Wheelbase
12. Wheel center to bumper cover face
