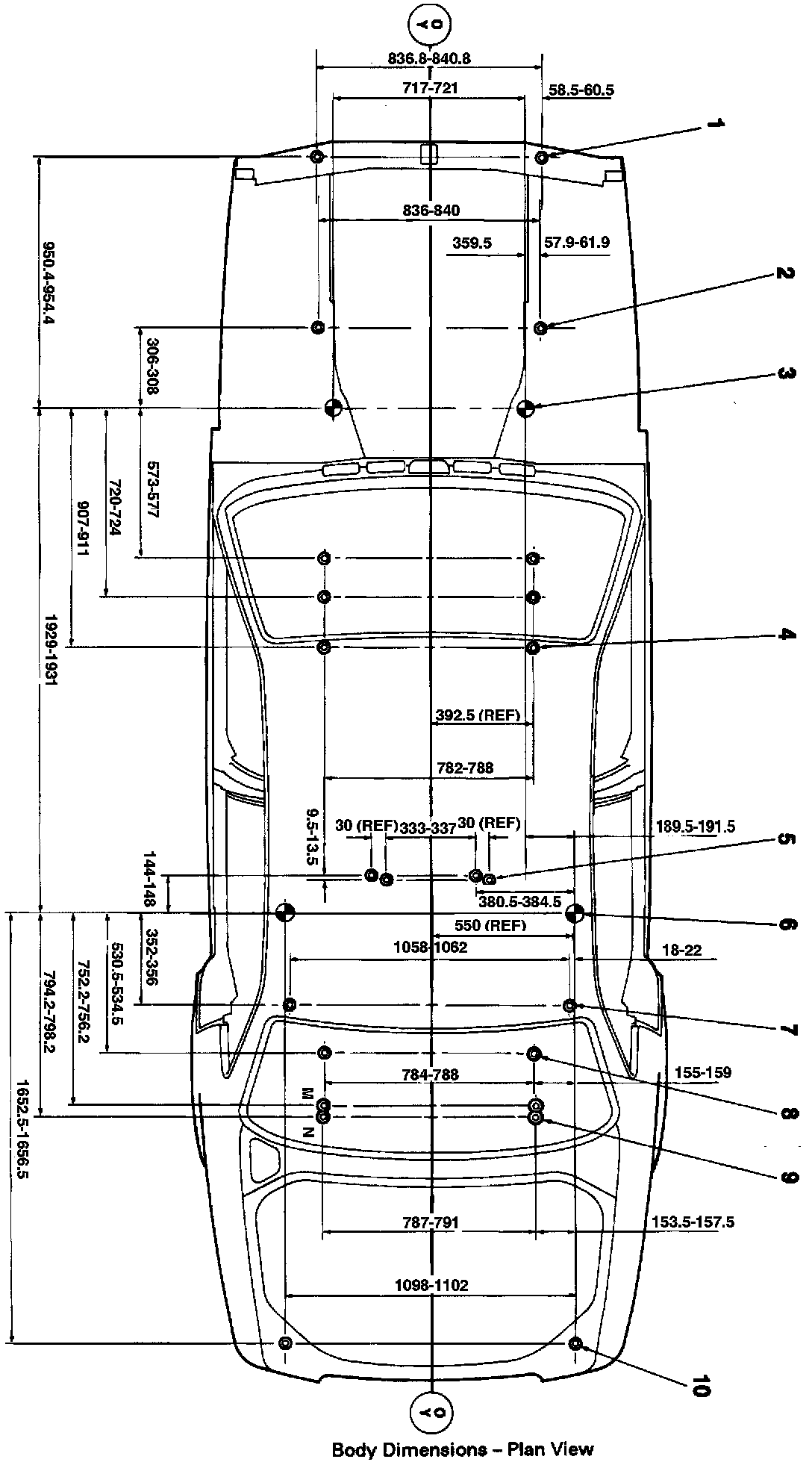

Body Dimensions Plan View

Key Location

1 Front face body - bumper strut / mounting point
2 Rearmost hole, Vee-mount to crush tube
3 Front Master Datum Plan, center line of the front crossmember rear mounting at the main floor RH longitudinal
4 Rearmost hole, transmission mounting at the main floor RH longitudinal
5 Driveshaft center bearing fixings
6 Rear Master Datum Plan, rear longitudinal
7 Tapped boss, rear suspension 'A' frame mounting bush
8 Rear suspension spring-pan damper mounting
9 Rear suspension differential strut mounting
10 Rear face body - bumper strut / mounting point
