Body and Frame: Application and ID

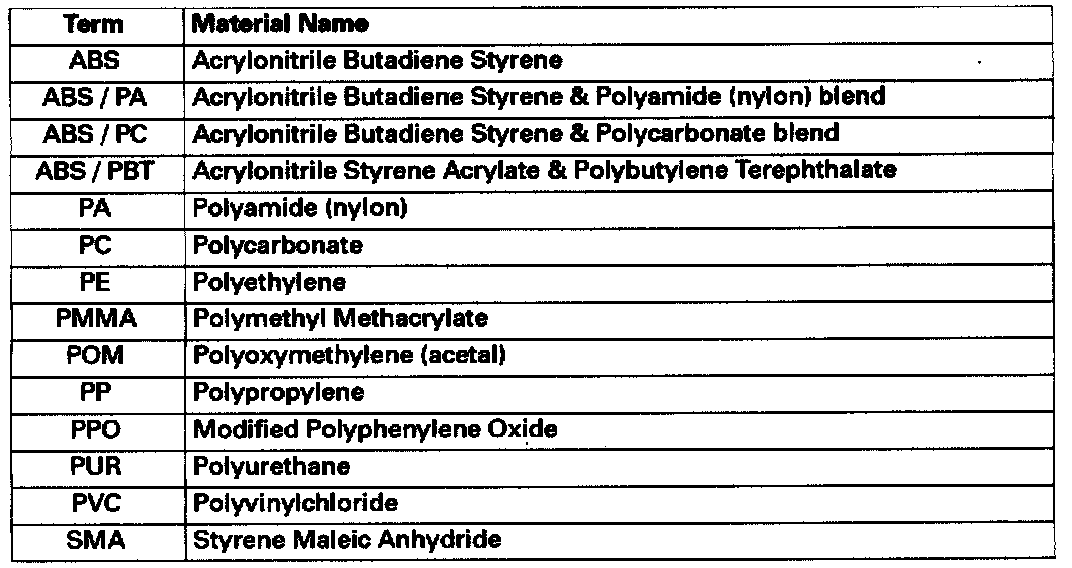

Use Images below in conjunction with Image above for rapid component identification. Not all plastic components are nominated, only those suitable for economic reclamation.

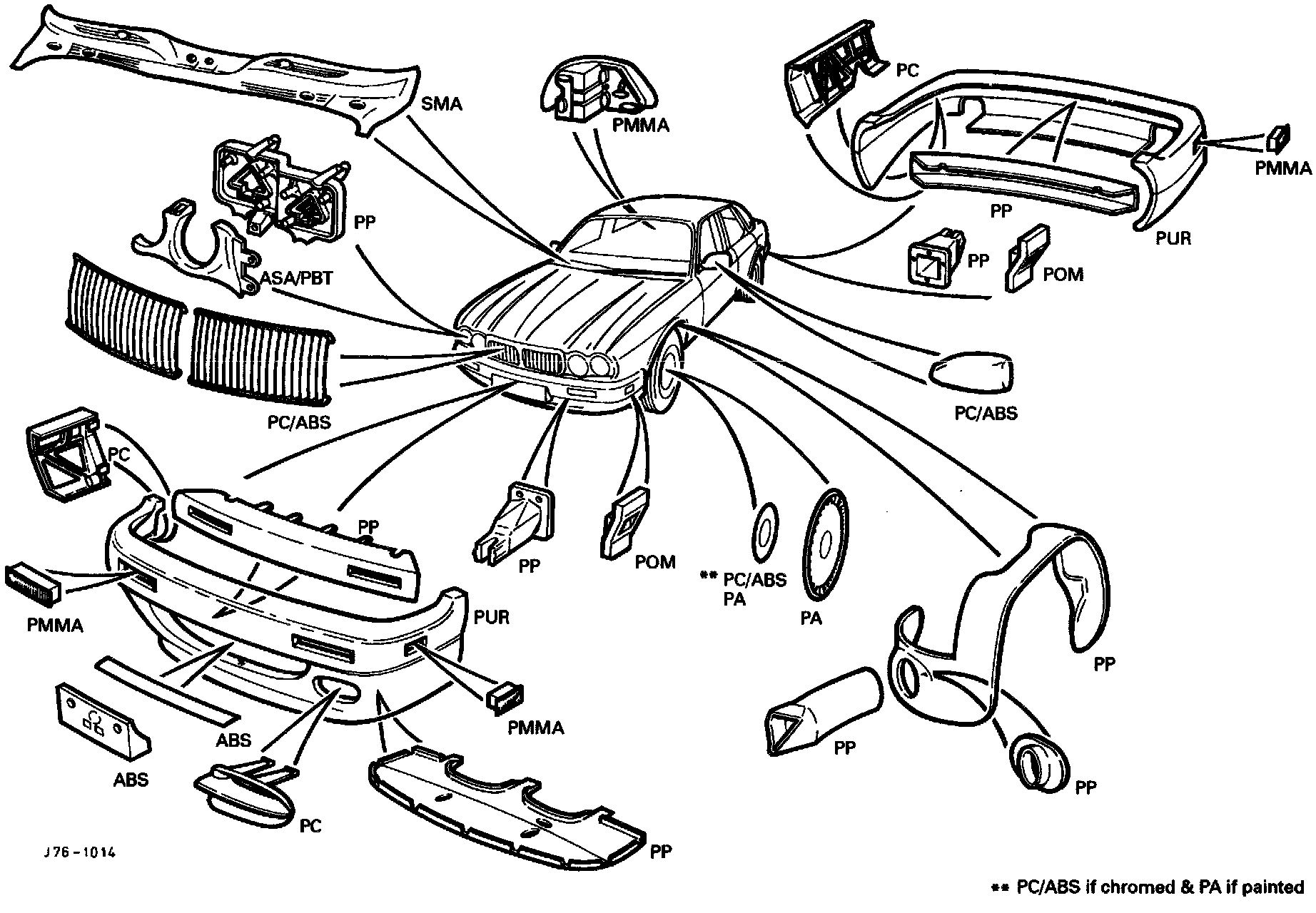

External:

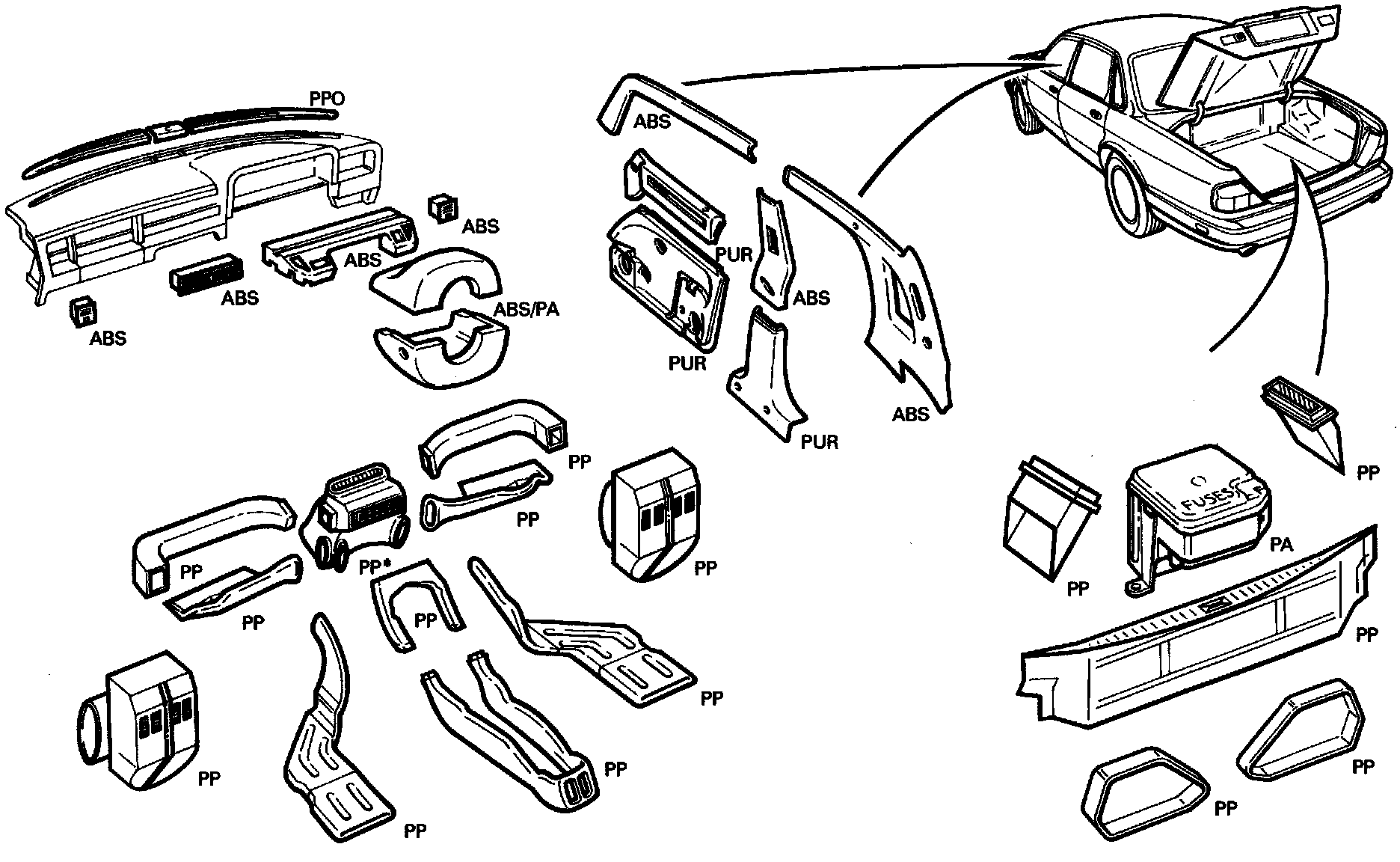

Internal:

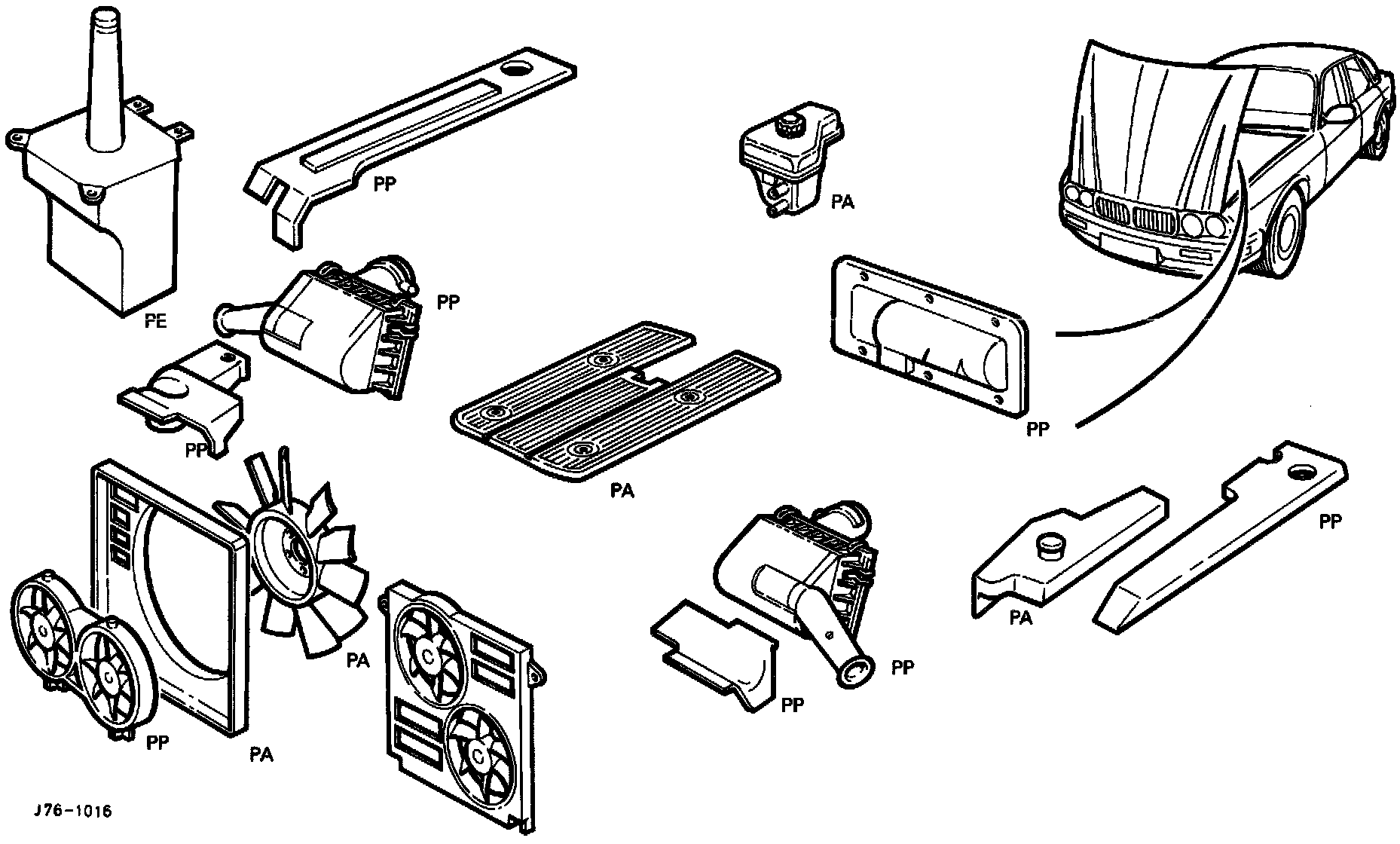

Underhood:
