Security System - Fault Diagnosis

Sedan Range

DATE 10/95

18-10

Security System - Fault Diagnosis Guide

MODEL
1995-96 MY
Sedan Range

VIN
720001-ON

ISSUE:

Additional fault tracing information for Sedan Range vehicle security system.

ACTION:














Refer to the possible symptom and cause information grouped by topic on these illustrations.

FAULT TRACING CONTENTS

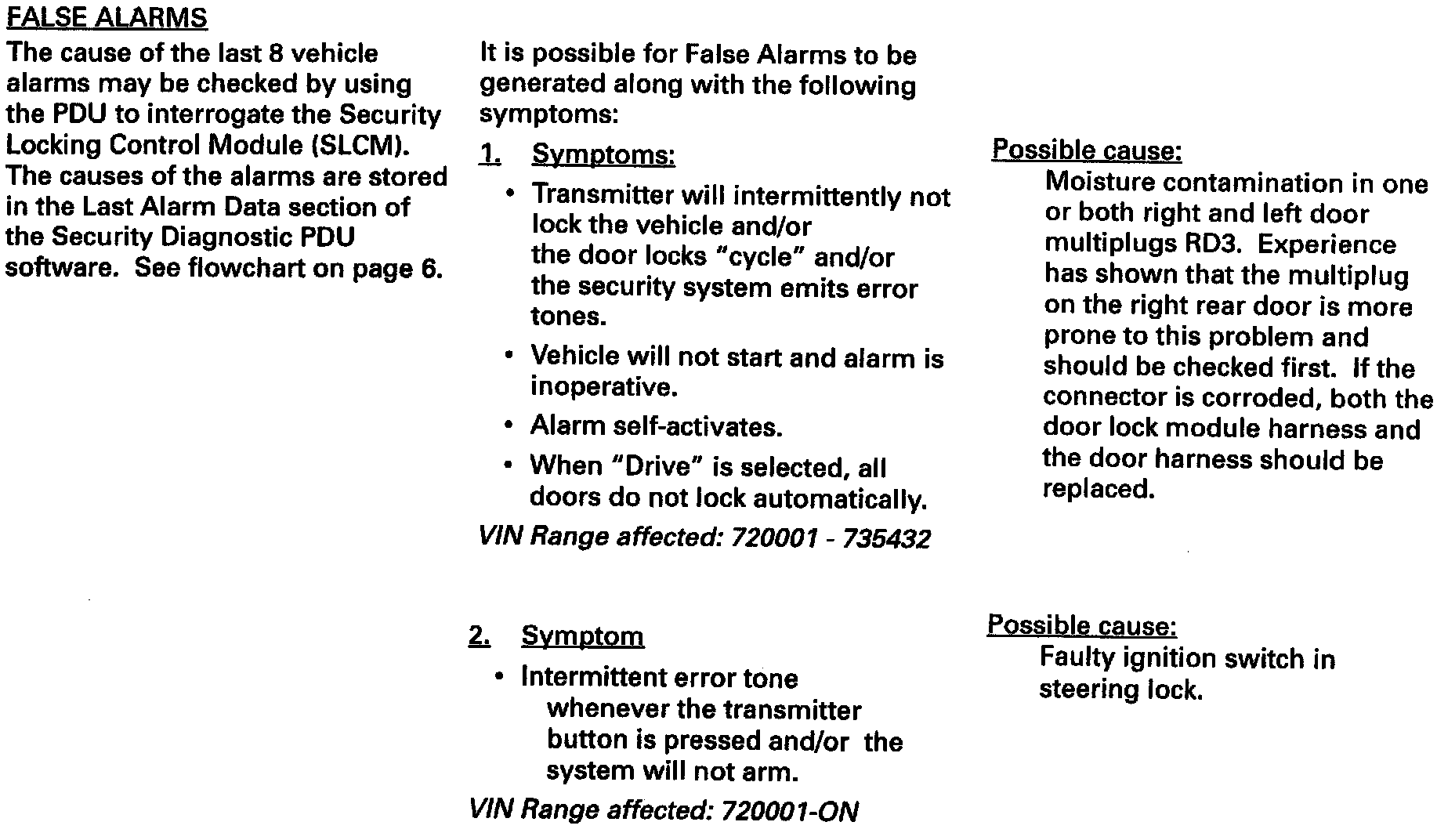

False Alarms

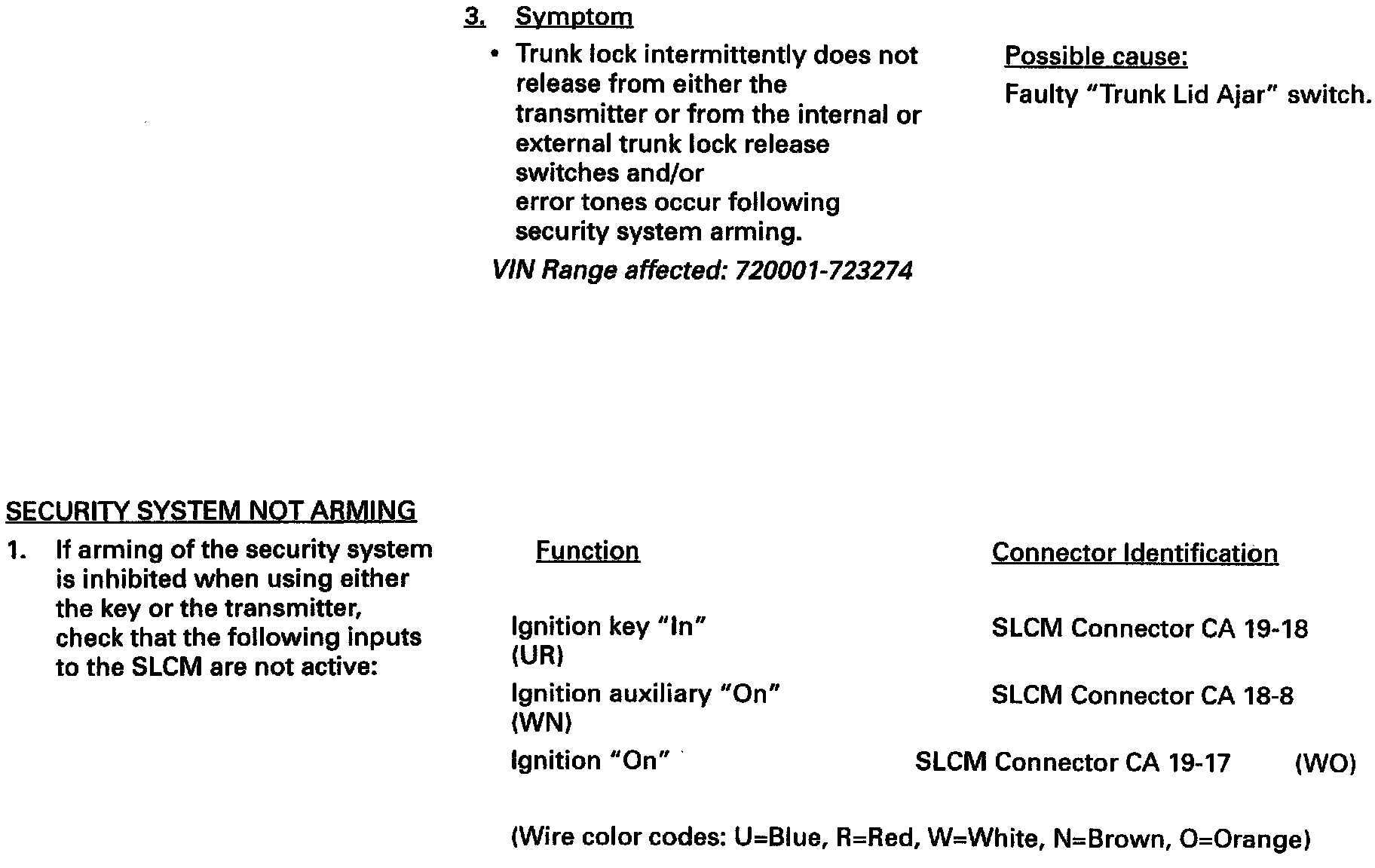

Security System not arming

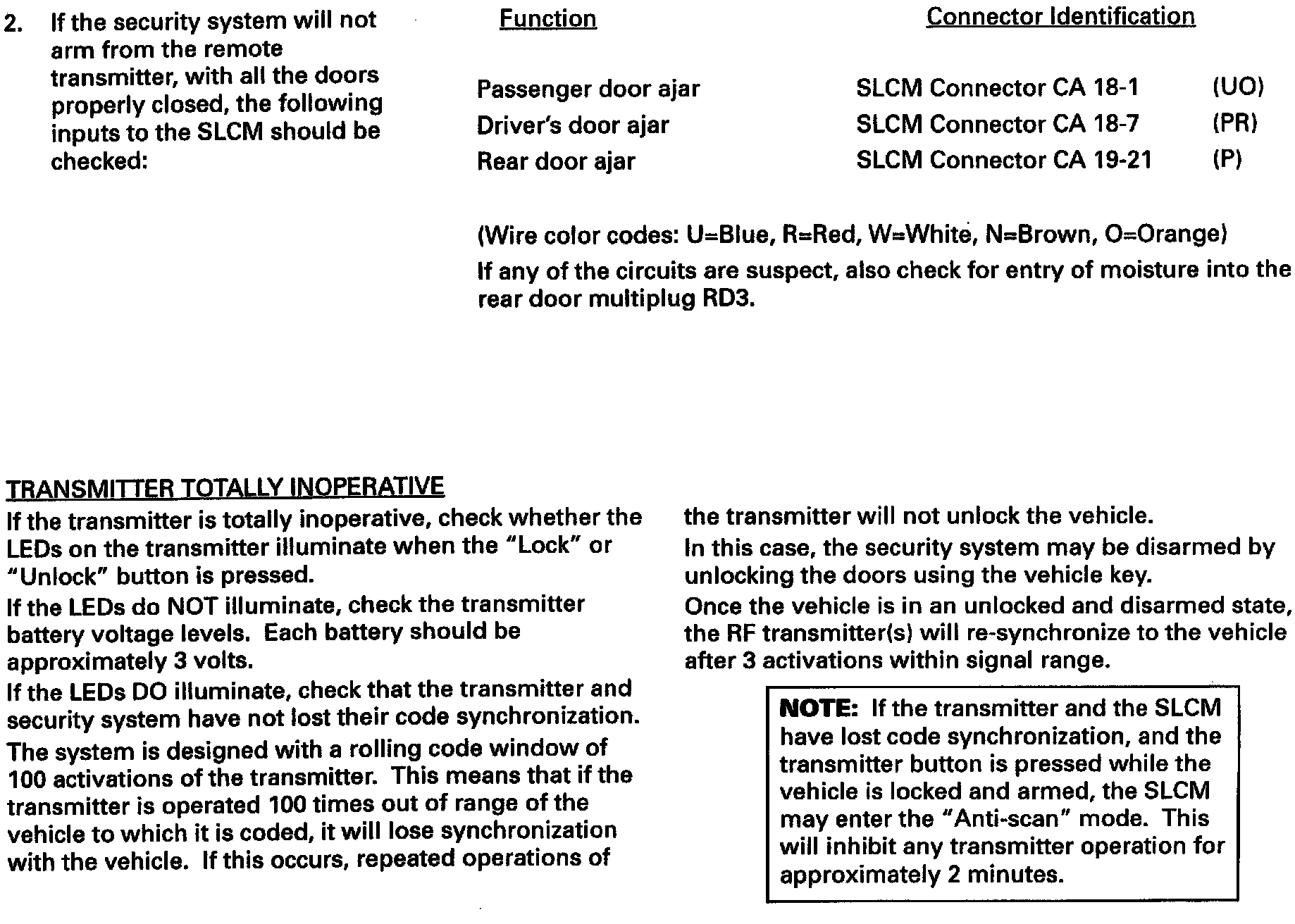

Transmitter totally inoperative

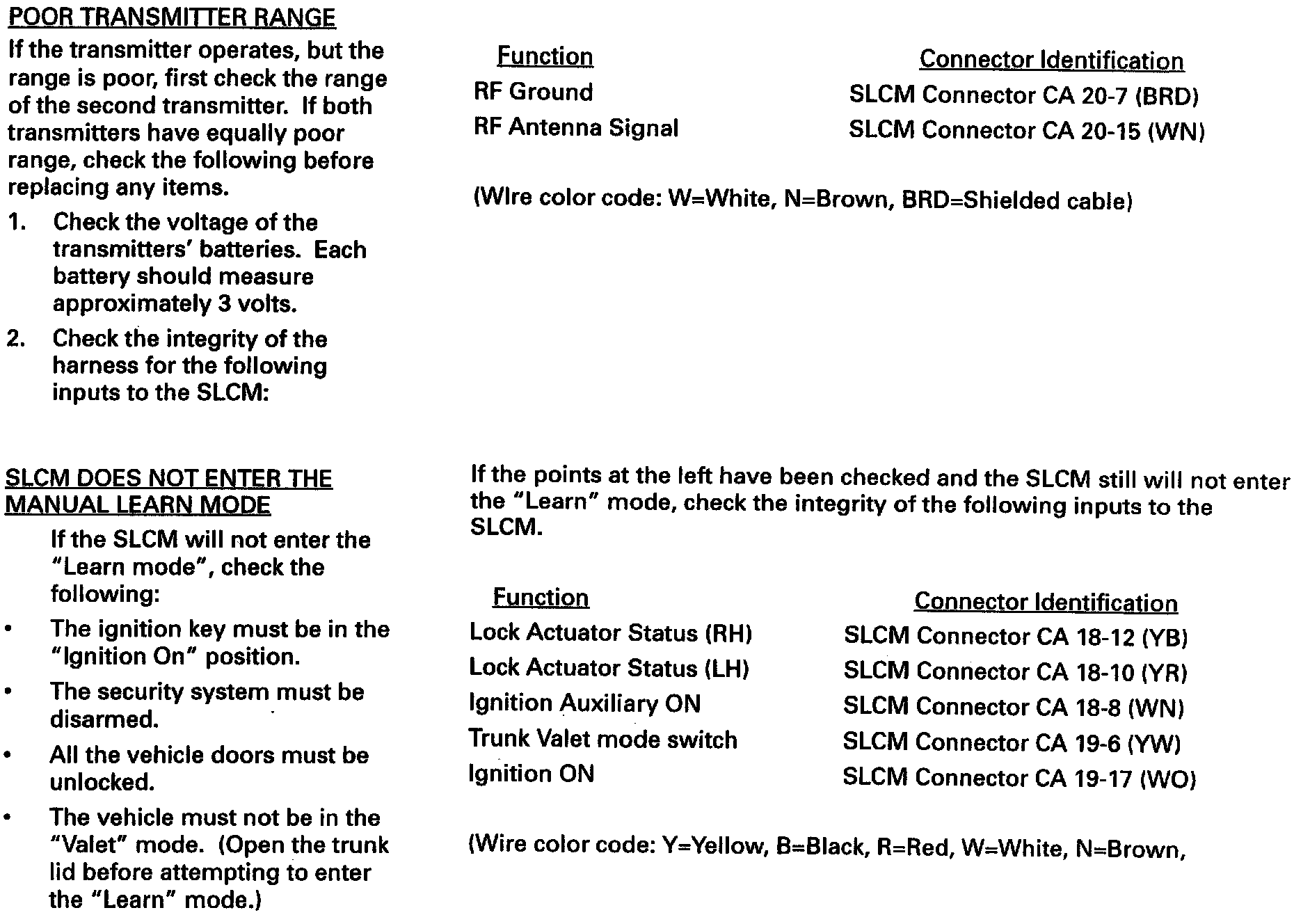

Poor transmitter range
SLCM does not enter Manual Learn mode
Checking the "Last Alarm" data using the PDU

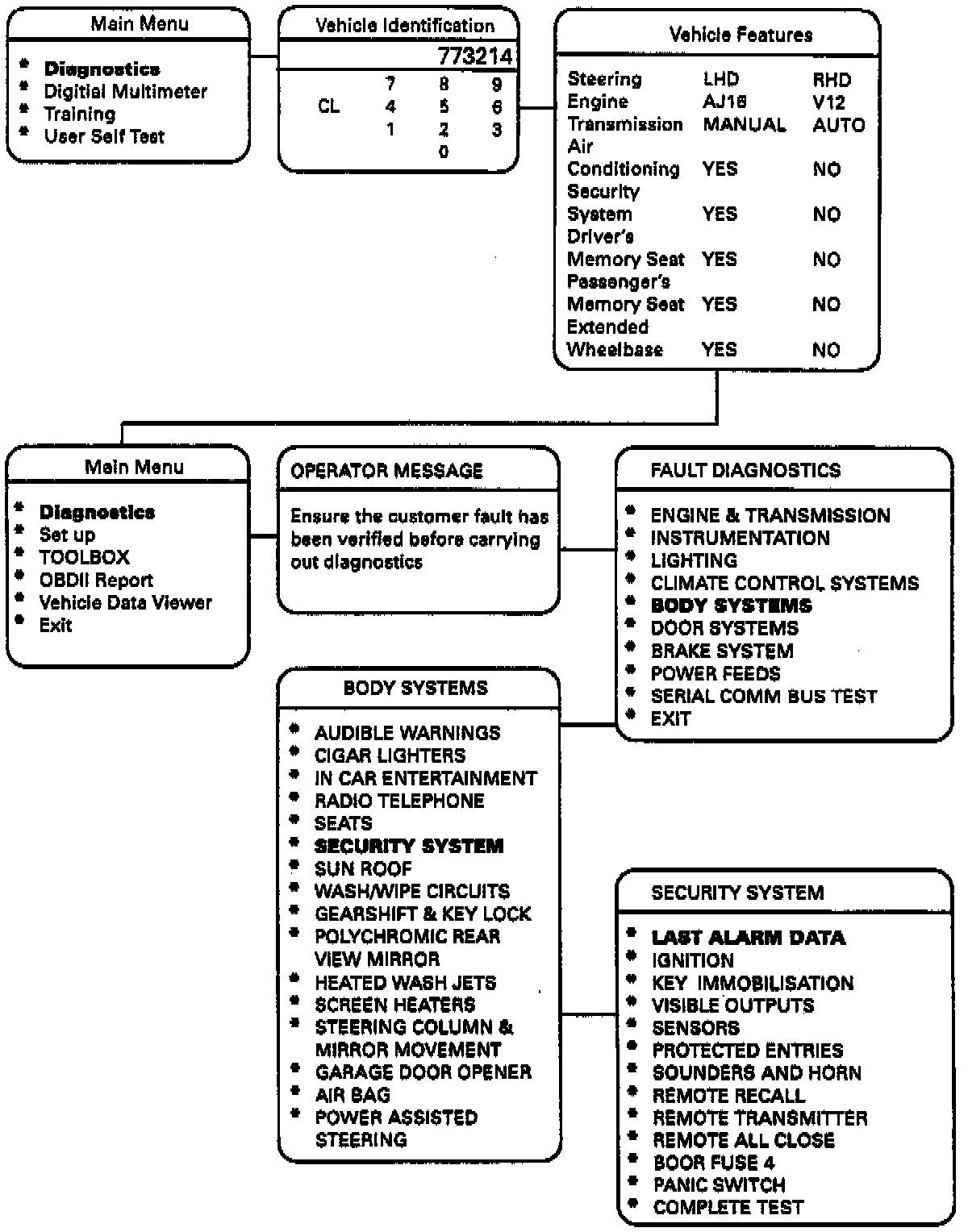

CHECKING THE "LAST ALARM" DATA USING THE PORTABLE DIAGNOSTIC UNIT

PARTS INFORMATION:

Any parts determined necessary as a result of tracing a fault in the Security system should be ordered as necessary from Jaguar Parts.

WARRANTY INFORMATION:

Warranty claims must be submitted in accordance with the current published Jaguar Warranty Policy and Procedures Manual, and Amendments.
