Security System - Transmitter Battery Replacement

18-09

DATE
11/94

Sedan Range

Security System Transmitter -
Battery Replacement

MODEL
1995 MY
Sedan Range

VIN
720001-ON

ISSUE:

Attempting to pry the battery access cover off of the security system transmitter may cause the transmitter to separate and damage electronic components.

ACTION:

To prevent damage when removing the battery access cover of 1995 MY Sedan Range security system transmitters, use the following procedure.

SECURITY SYSTEM TRANSMITTER BATTERY ACCESS COVER REMOVAL

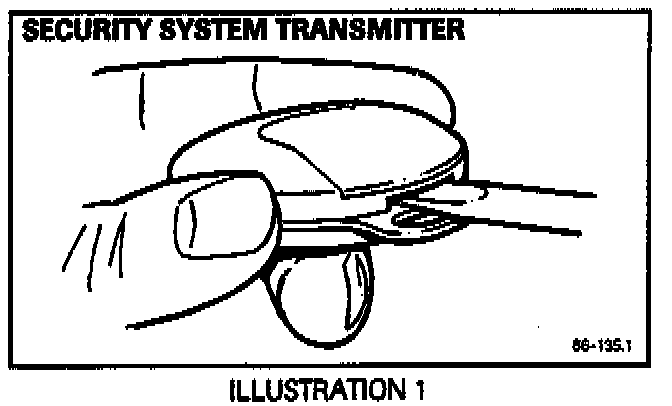

1. Insert a small (1/16" thick) screwdriver between the access cover and body (Illustration 1).

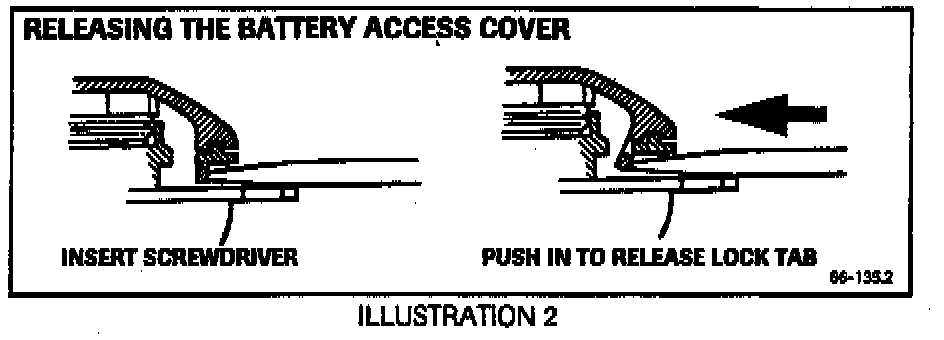

2. Push the screwdriver straight in to release the lock as shown in Illustration 2.

CAUTION:
Twisting the screwdriver or attempting to pry the cover open will damage the transmitter.

3. The internal spring will push the access cover open.

NOTE:
Dispose of used batteries according to local laws.
