Getrag 290 Manual Transmission Torque Specifications

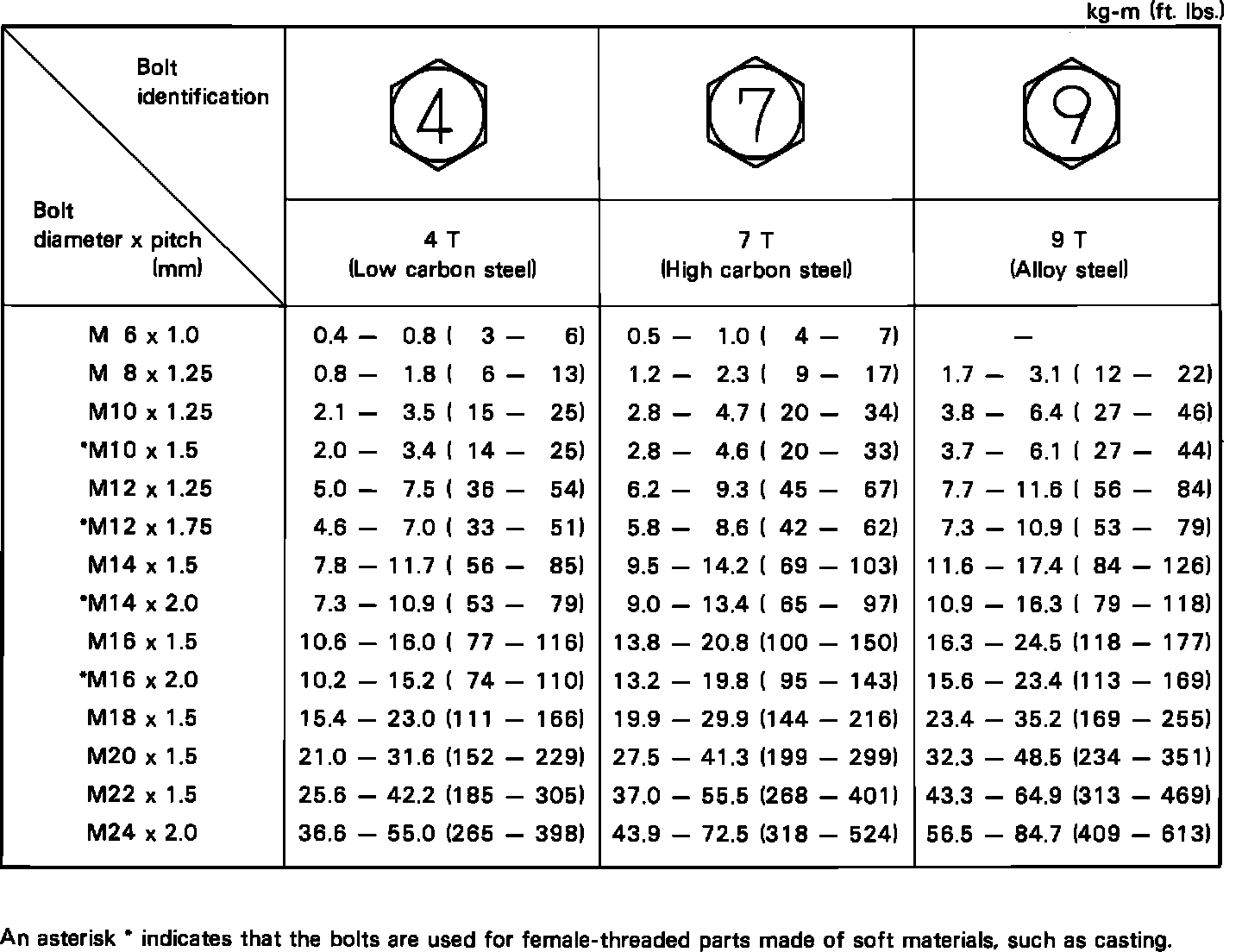

Standardized Bolt Torque Specifications:

Component Nm
________________________________________________________________

Bell Housing To Adapter Plate 49-54

Bleed Nipple To Slave Cylinder 8-10

Center Bearing To Body 22-28

Center Bearing To Mounting Plate 22-24

Clutch Cover To Flywheel 23-27

Clutch Dampener To Mounting Bracket 7-10

Flywheel To Crankshaft 123-149

Front Cover To Transmission 23-27

Front Pipe To Intermediate Pipe 15-18

Gearshift Lever Housing To Transmission 23-27

Hydraulic Pipes To Clutch Damper 16-22

Hydraulic Pipe To Clutch Master Cylinder 16-22

Hydraulic Pipe To Clutch Slave Cylinder 16-22

Master Cylinder To Housing 15-21

Pedal Housing To Body 24-30

Pedal Steady Bracket To Housing 18-20

Drive (propeller) Shaft Center Mounting To Body 22-28

Drive (propeller) Shafts Transmission 95-105

Slave Cylinder To Bell Housing 15-21
