Pinpoint Tests

TRANSMISSION ELECTRICAL PIN POINT TESTS
The following tests describe methods of testing the transmission control solenoid valves from the multi-pin connector.

The solenoid valves are located on the valve block in the transmission assembly and can be identified by their position. Connection is made via a connector located on the LHS of the transmission assembly.

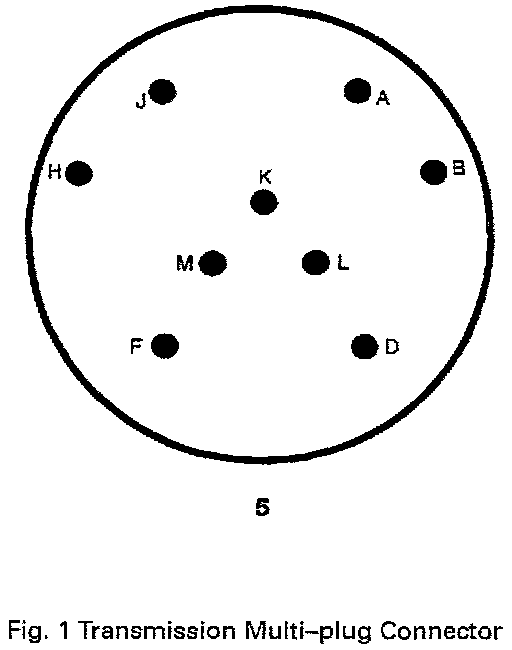

Transmission Connector (G8003)
A = Road Speed Sensor
B = Pressure Regulator
D = Oil Temperature Signal
F = Road Speed Sensor
H = MV1 Solenoid
J = Oil Temperature Ground
K = MV2 Solenoid
L = MVWK Solenoid
M = Solenoid Supply

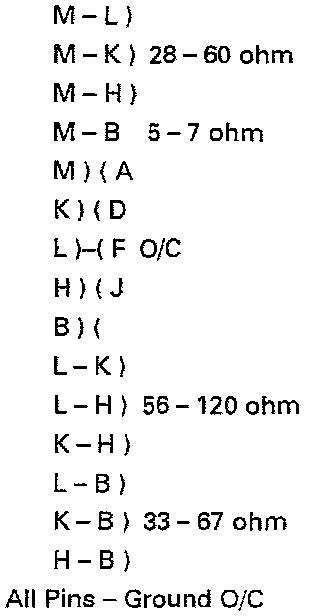

Impedance Checks
