Home >> Jaguar >> 1996 >> XJ-S Convertible (XJ27) L6-4.0L >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Fuse Block >> Application and ID >> From VIN 198335

From VIN 198335



Fuse Identification and Location

Component Panel Location:

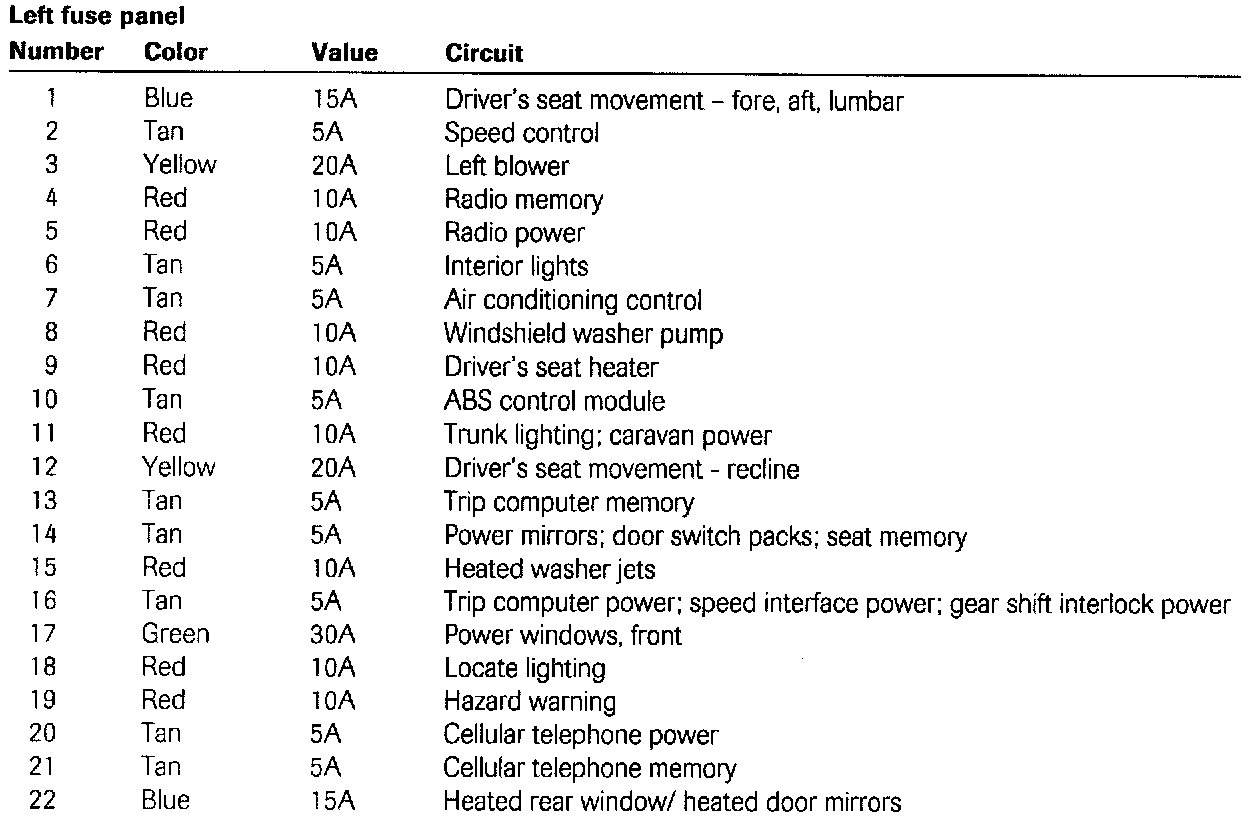

Fuse Identification And Location: Left Fuse Panel:

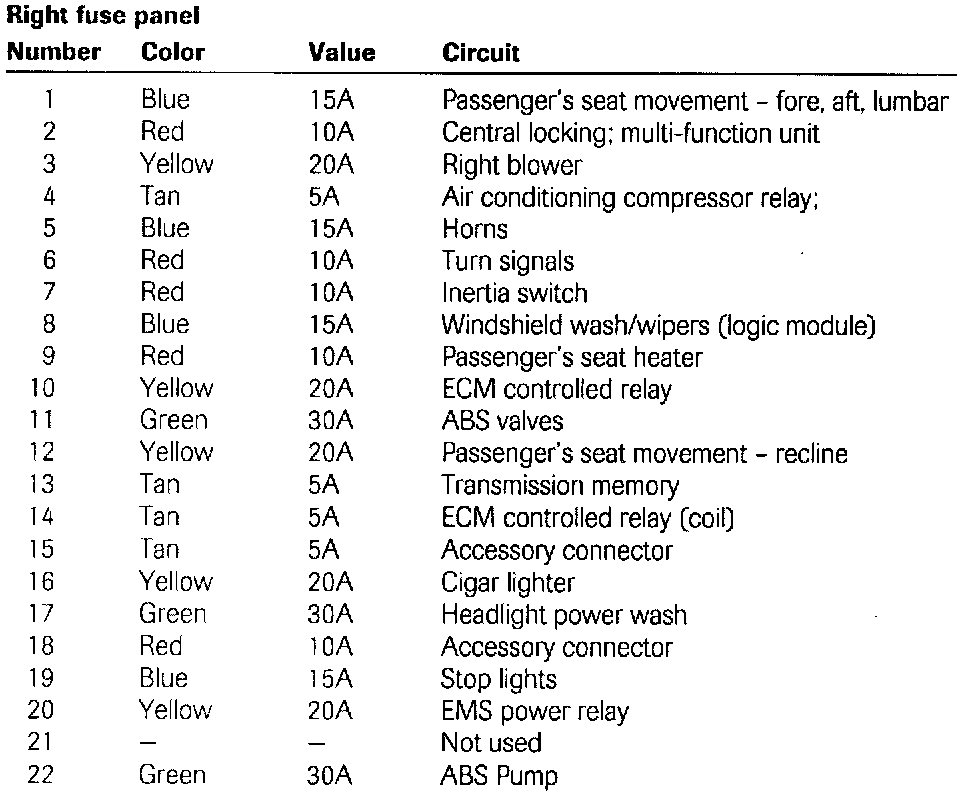

Fuse Identification And Location: Right Fuse Panel:

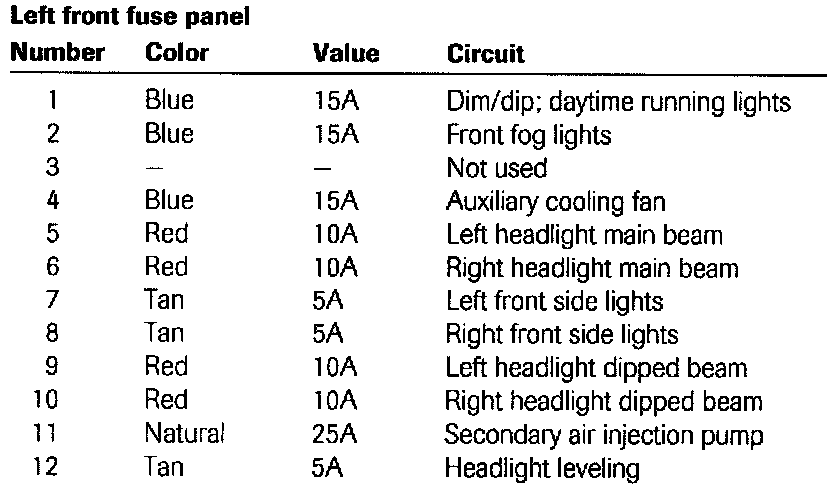

Fuse Identification And Location: Left Front Fuse Panel:

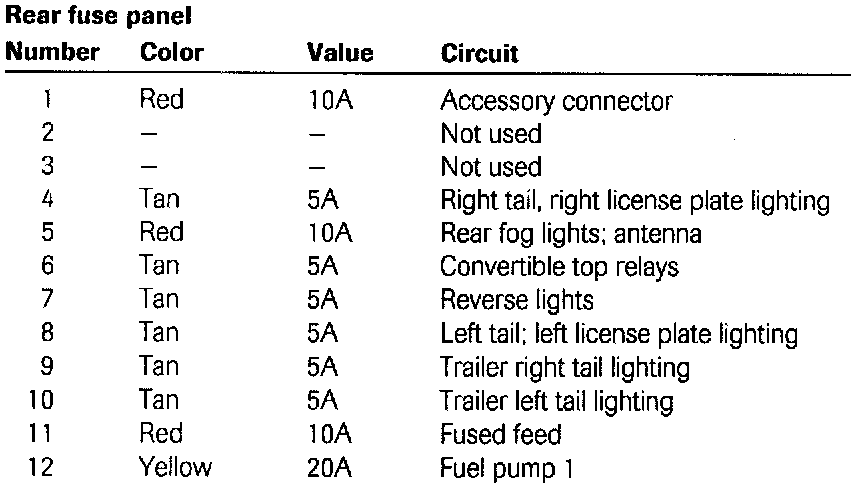

Fuse Identification And Location: Rear Fuse Panel:
