Electrical Diagrams

�(TBattery Power Distribution:

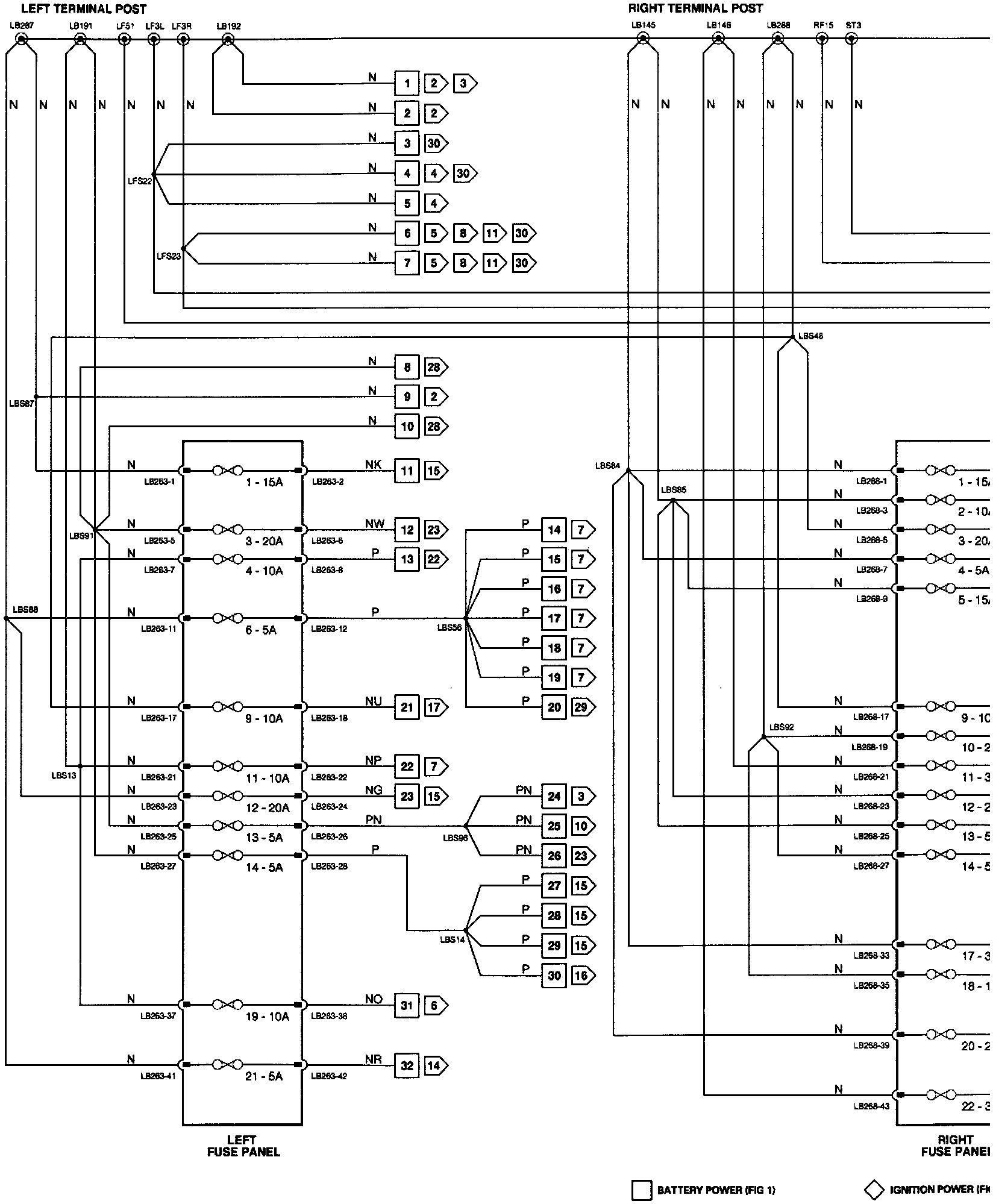

Wiring Diagram

Use the Hyperlink to access Figure Numbers referred to in the wiring diagram. Refer to -- Vehicle / Diagrams Electrical Diagrams

Battery Power Distribution: Components:

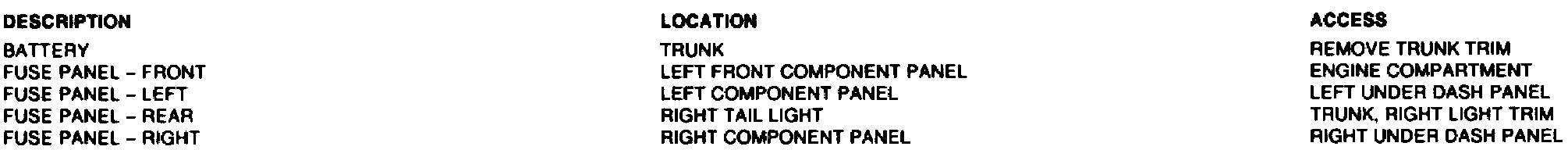

Component Informations

Battery Power Distribution: Connectors:

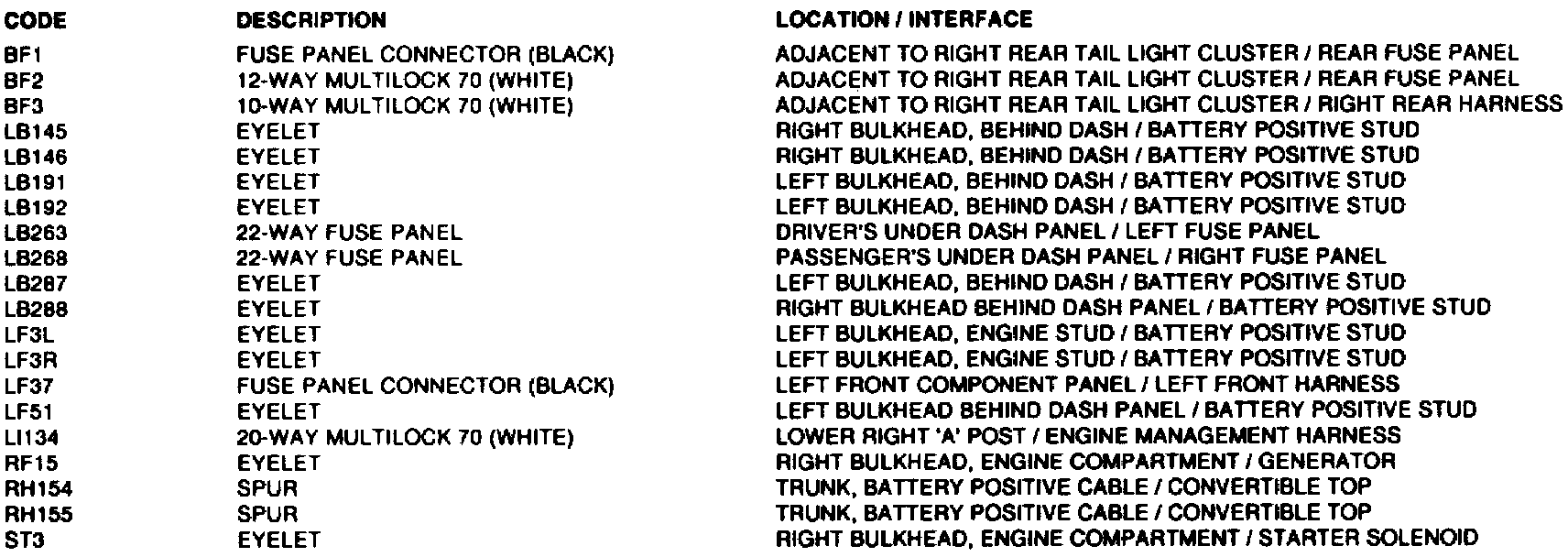

Connector Informations
