Electrical Diagrams

�2Ignition Switched Power Distribution:

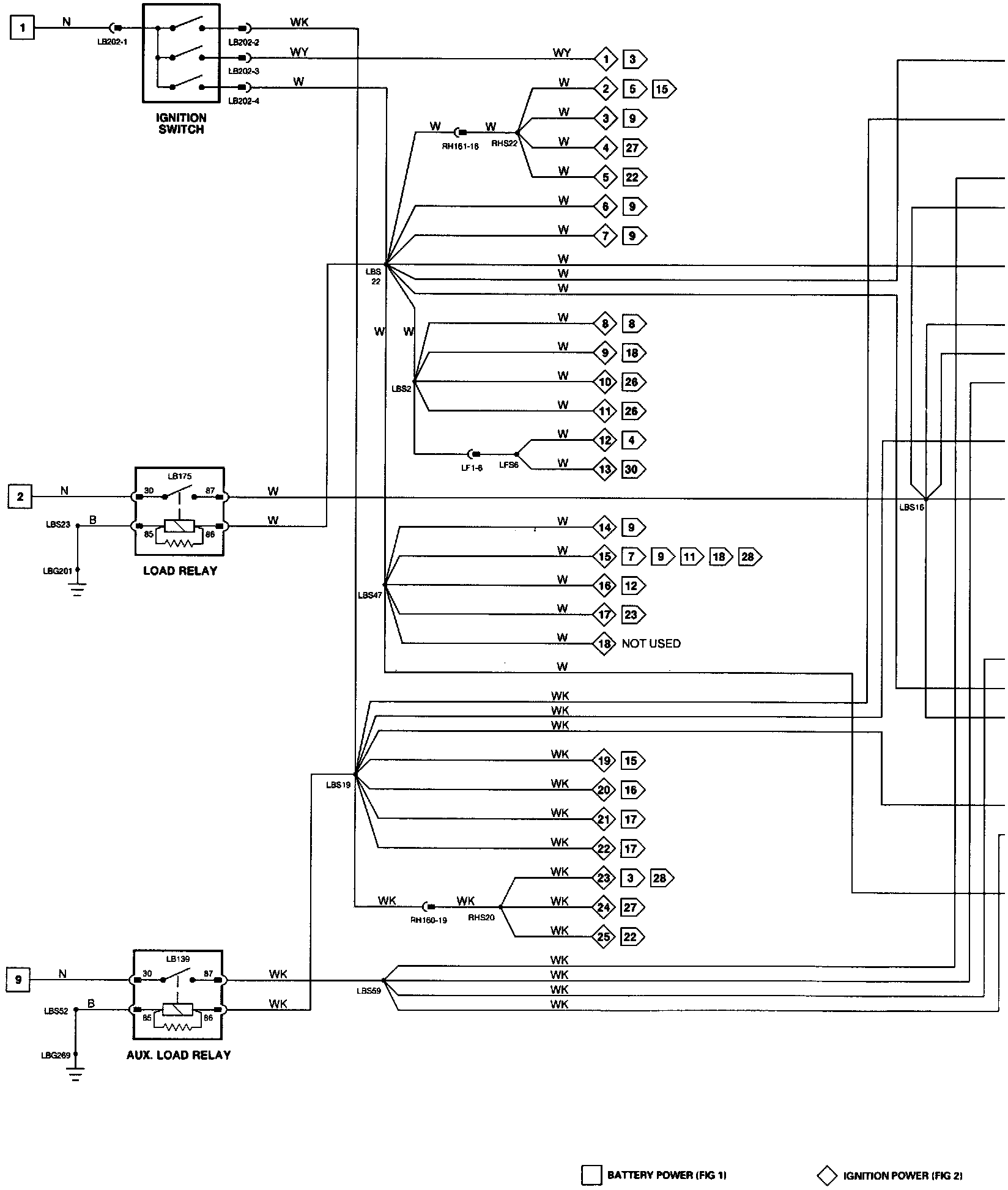

Wiring Diagram

Use the Hyperlink to access Figure Numbers referred to in the wiring diagram. Refer to -- Vehicle / Diagrams

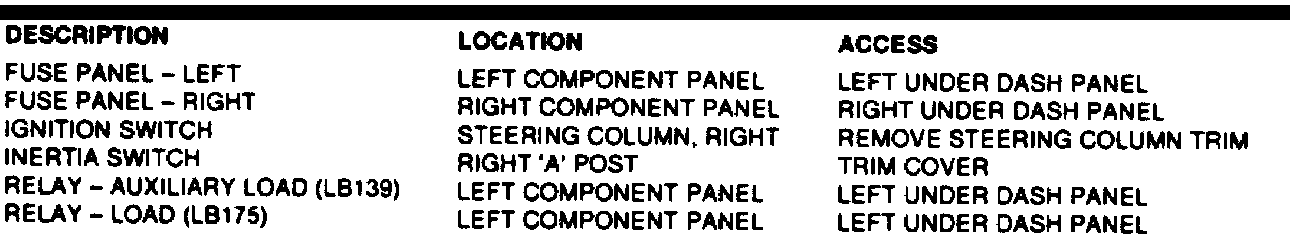

Ignition Switched Power Distribution: Components:

Component Informations

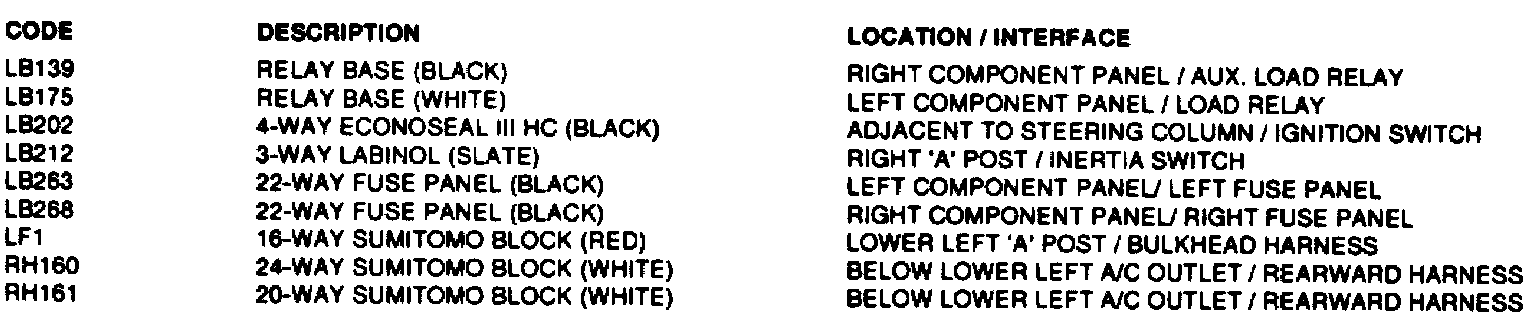

Ignition Switched Power Distribution: Connectors:

Connector Informations

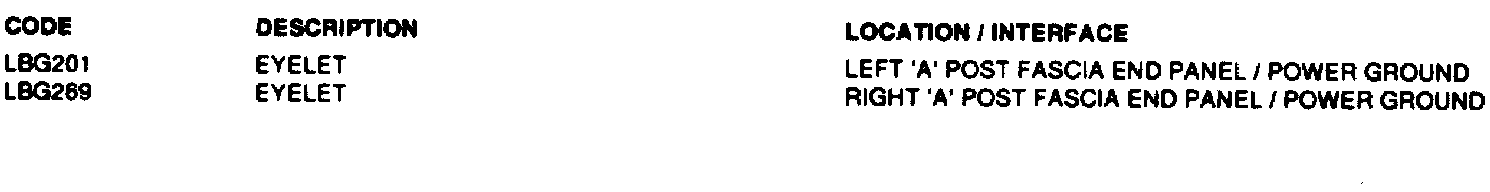

Ignition Switched Power Distribution: Grounds:

Ground Informations
