Inertia Fuel Shutoff Switch: Service and Repair

- Disconnect battery earth lead.

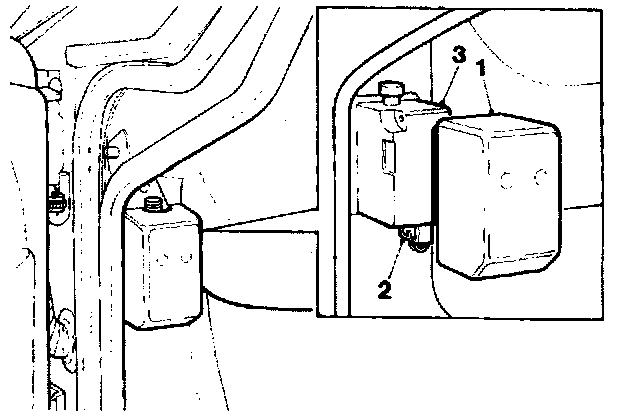

Fig. 2:

- Remove the inertia switch trim cover (1 Fig. 2).
- Release the switch block connector (2 Fig. 2) retaining catch and withdraw the connector.
- Remove the passenger side dash linen.
- Remove the two screws securing the switch and remove the switch (3 Fig. 2).
- On refitting a new switch ensure it is correctly reset.
