Recall - T493, R493 Replacement PROMs and EGR valve: Overview

17-12
Amended
08/02

DATE: 11/01

MODEL:
1995-96 MY XJS 4.0L

VIN:
194775-226645

Recall T493 - 1995 MY/Recall
R493 - 1996 MY - AJ16 EGR System - Replace PROMs and EGR Valve

Remove and destroy Bulletin 17-12, amended 11/01. Replace with this Bulletin.

This Recall supersedes Service Action S483.

Note:
In January 2002 Jaguar advised you that the above recall action required on 1995 MY vehicles was temporarily suspended due to unforeseen problems with one of the components associated with this recall. Jaguar had requested that dealers cease conducting further actions on 1995 MY vehicles until the problem with the affected component had been resolved.

Jaguar is now pleased to inform you that the issue with the EPROMS have now been resolved, and that Jaguar would once again will be contacting owners requesting that they contact their dealer to have the repair performed.

This version of the recall bulletin has a revised part number for the 1995 MY vehicle. Additional Warranty Information has been added for those 1995 MY vehicles previously re-worked under this Recall Action. Please destroy all previous versions of Recall Action Bulletin R493 and replace it with this version.

Please note that the Recall number for 1995 MY vehicles is now T493, R493 will continue to be used for 1996 MY vehicles.

ISSUE:

Since the introduction of the AJ16 engine Jaguar has seen a high rate of replacement of EGR valves following illumination of the malfunction indicator lamp (MIL). This is understood to be a result of accumulated contamination within the EGR valve that can produce possible drivability issues such as rough idle, hesitation, and difficult starting.

Following consultation with the US Environmental Protection Agency (EPA) Jaguar has decided to recall all vehicles equipped with this engine and carry out a number of modifications including the introduction of a cleaning cycle to the EGR valve. The following actions apply to all vehicles within the above VIN ranges.

Replace PROMs within Engine Control Module (ECM). Jaguar Cars has upgraded the PROMs within the ECM to provide a cleaning cycle of the EGR system.

^ Replace EGR valve and gasket, to ensure that it is free from contamination.

^ Replace throttle return spring. Some vehicles may experience customer complaints of high idle speeds.

Jaguar Cars is writing to all owners of the above vehicles (in timed mailings) to advise them to take their vehicles into their local dealer to have the above modifications made.

This recall will supersede Service Action S483, S675, and S676, no further claims for these Service Actions will be accepted.

APPLYING MODIFICATION LABEL

Note:
Use this label for T493 also.





Enter the dealer number and date on the authorized modification label and apply the label (Illustration 10, part no. R 493 STK) next to the left hood hinge.

PROOF OF CORRECTION FORM

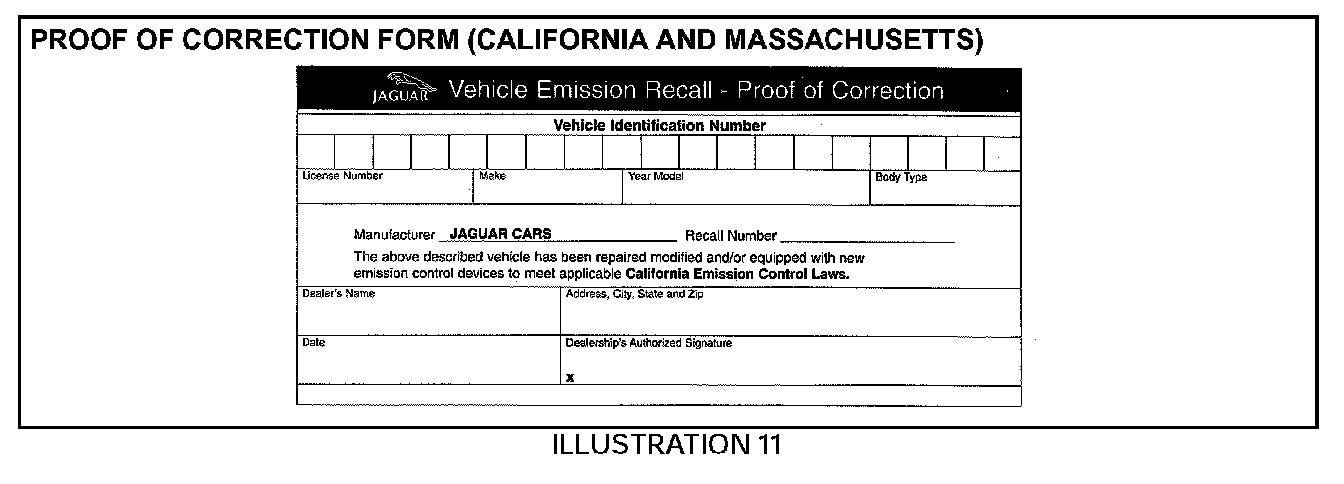

California and Massachusetts Dealers (and any other states where required): Fill out and place the salmon colored "Vehicle Emission Recall - Proof of Correction" form (Illustration 11, part no. S CAL RCL) in the vehicle glove compartment.

ADDITIONAL INITIATIVES





The diagnostic procedures shown that may be followed should a drivability concern still be apparent after the recall action has been completed.The completion of any subsequent repairs are subject to normal New Car Warranty or Select Edition Warranty, or customer pay authorization as appropriate.

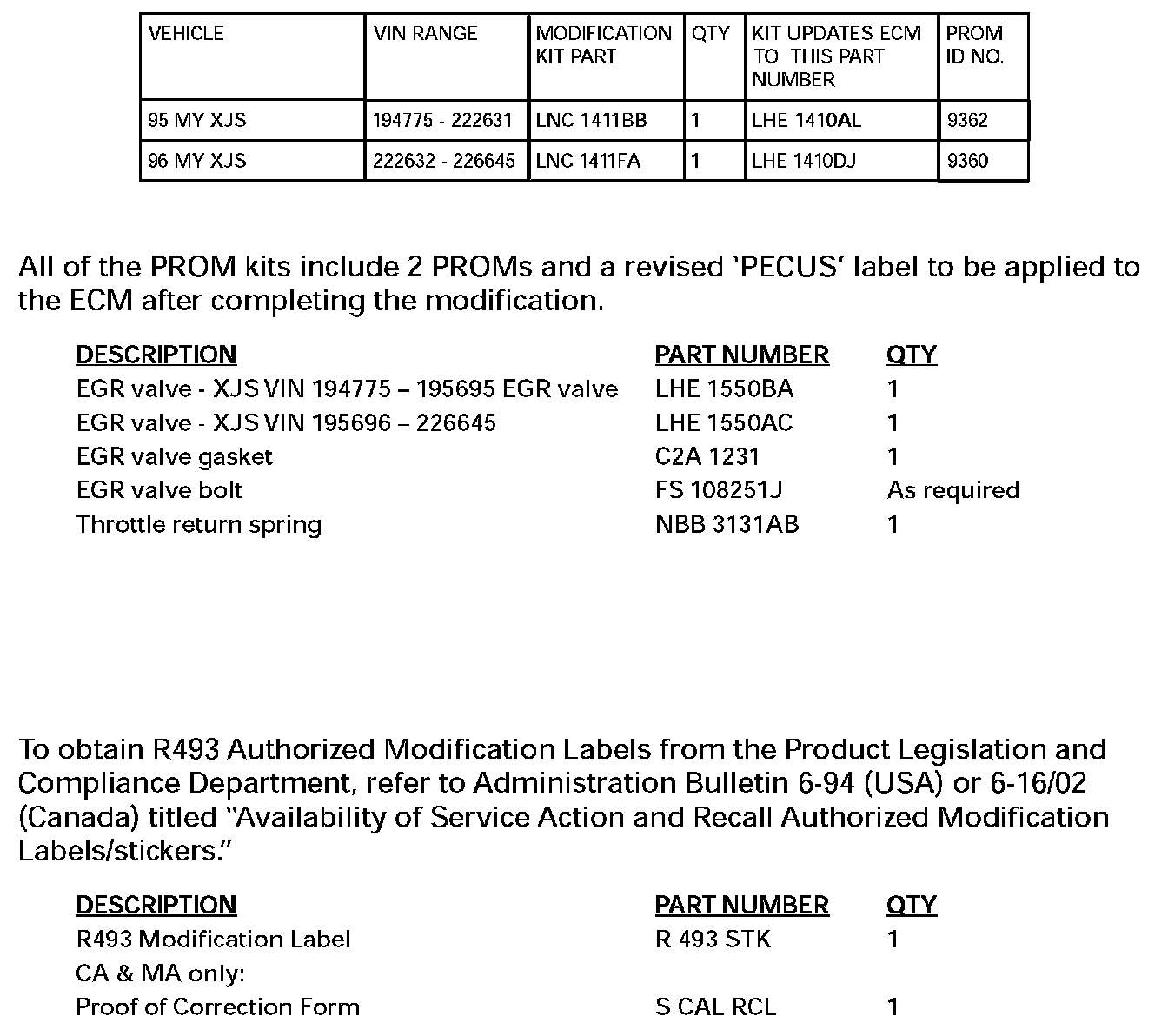

PARTS INFORMATION:





The appropriate modification kit for the 1995 MY only (LNC 1411BB) initially will be allocated to each dealer based on size and volume to ensure an even distribution and full coverage. After the initial allocation, parts should be ordered from Jaguar Parts Operations following normal procedures. All other parts required should be ordered through Jaguar Parts Operations following the normal process.

WARRANTY INFORMATION:

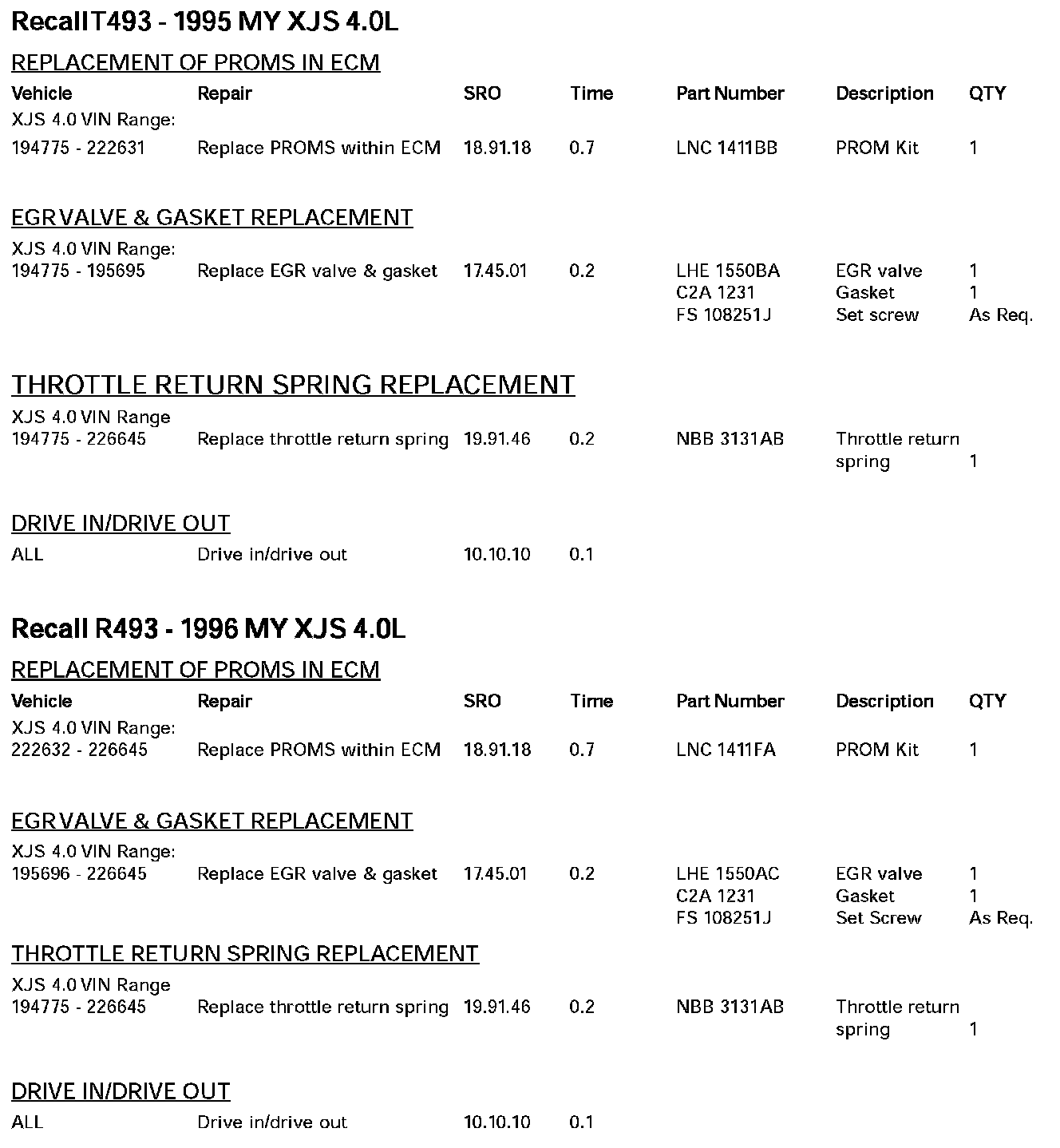

Warranty claims should be submitted quoting the information found in the table. This will result in payment of the stated time and, where applicable parts/ miscellaneous expense codes as listed.

Drive in/drive out may only be claimed when the vehicle has been brought in for this action alone to be undertaken.

Please use option code of X and also enter the SRO(s) and parts details on the claim applicable to the repair completed.
