Data Link Connector: Description and Operation

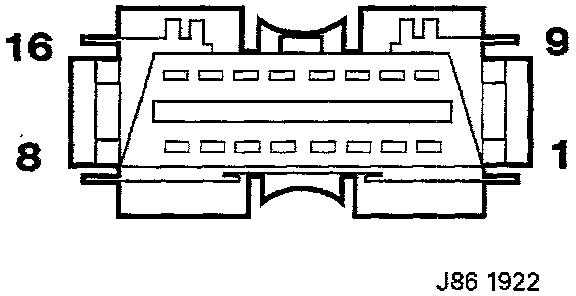

Fig 1 Data Link Connector:

The DLC is rectangular in design and capable of accommodating up to sixteen terminals. The connector has keying features to allow easy connection in a one handed / blind operation. The vehicle connector and the test equipment connector have latching features that ensure the test equipment connector will remain mated when properly connected.
