Oil Strainer, Engine

- Remove the oil pan.

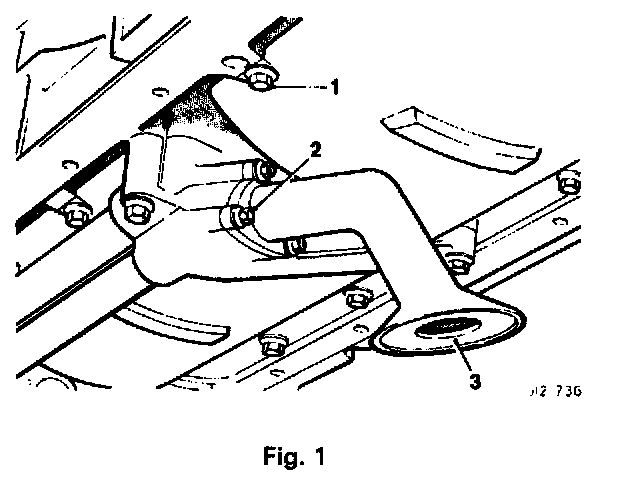

- Remove the bolts securing the rear windage tray (1 Fig. 1) to the cylinder block and remove the tray.

- Remove the three bolts (2 Fig. 1) securing the strainer and remove the strainer (3 Fig. 1).

- Clean all components and examine for damage and wear.

- Apply sealant to the replacement strainer, and fit and secure to the housing with the bolts. See Service Materials under Engine Specifications, Fluid Types.

- Refit the rear windage tray to the cylinder block and secure with the bolts.

- Refit the oil pan.
