Oil Pump Pick Up

Oil Pump Pipe `O' rings, Renew

- Remove the oil pan.

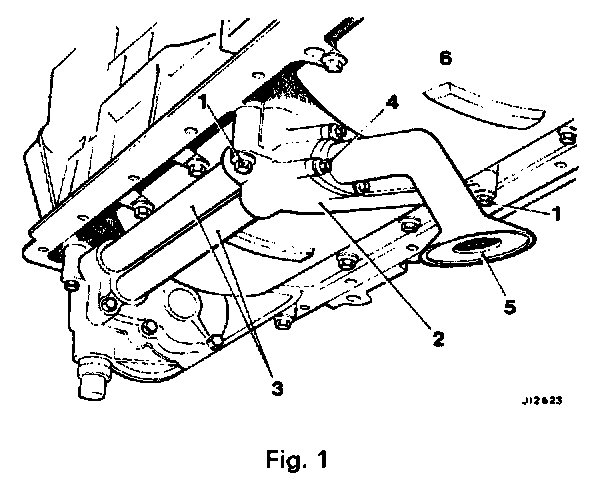

- Place a suitable drain tray under the oil transfer housing area and remove the transfer housing/pick-up pipe (1, 2, 4, 5 Fig. 1).

- Remove the oil pump pick-up pipes (3 Fig. 1).

- Remove and discard the `O' rings. Clean the transfer housing and oil pipes.

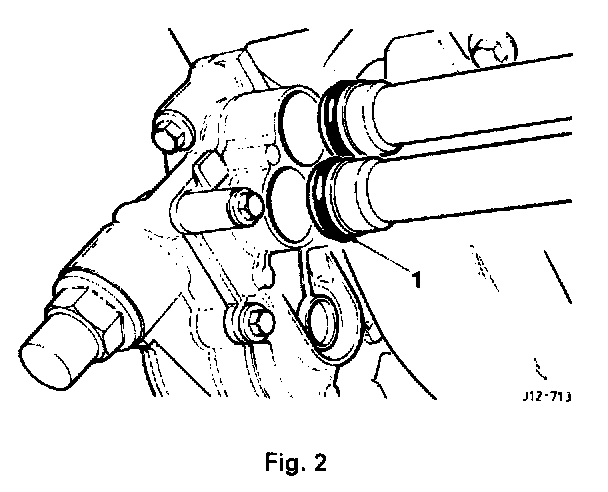

- Carefully fit new `O' rings (lubricated with petroleum jelly) to the oil pipes (1 Fig. 2) and refit the pipes to the oil pump.

- Fit the transfer housing to the engine. Fit and tighten the securing bolts.

- Refit the oil pan.
