Audible Warning Device

��#Audible Warnings:

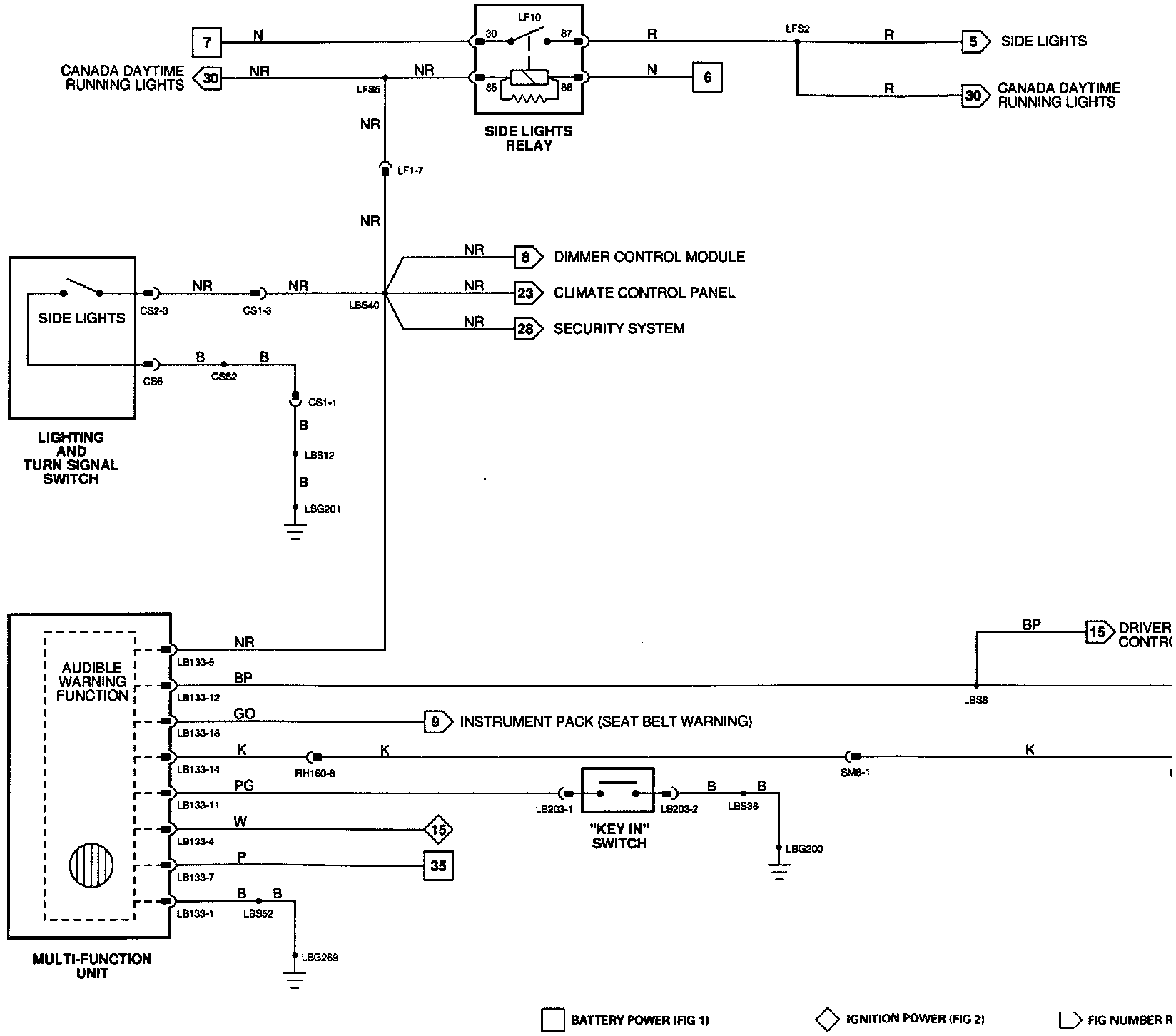

Wiring Diagram

Use the Hyperlink to access Figure Numbers referred to in the wiring diagram. Refer to -- Vehicle / Diagrams Electrical Diagrams

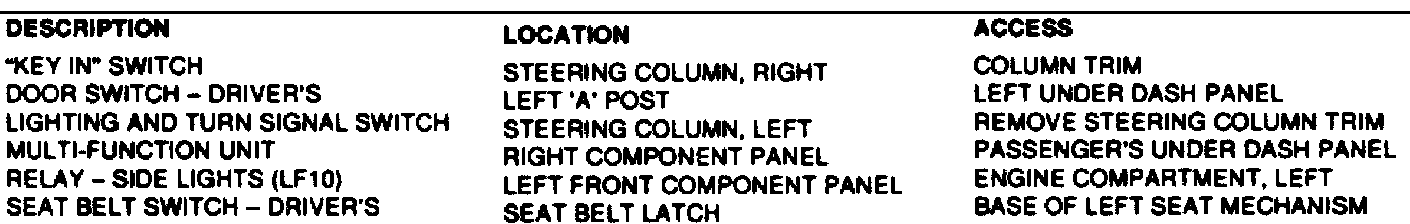

Audible Warnings: Components:

Component Informations

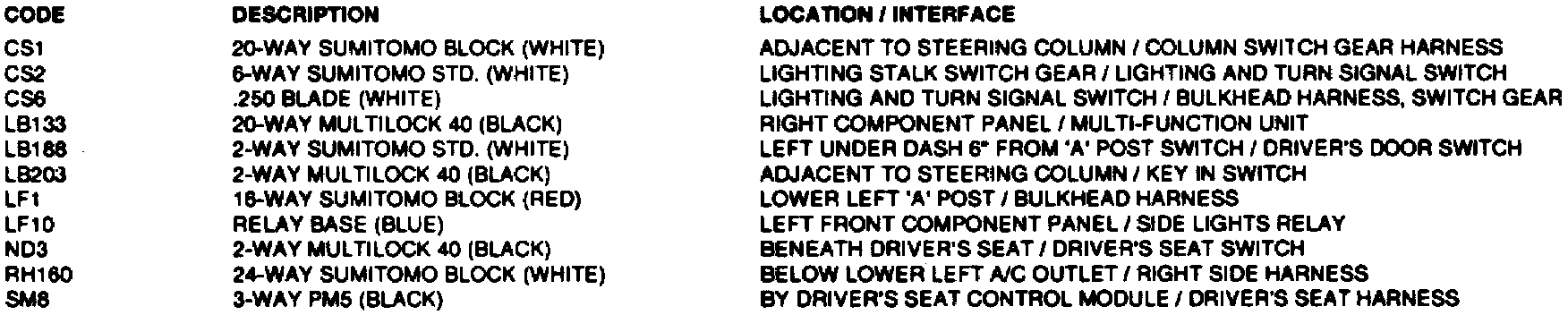

Audible Warnings: Connectors:

Connector Informations

Audible Warnings: Grounds:

Ground Informations

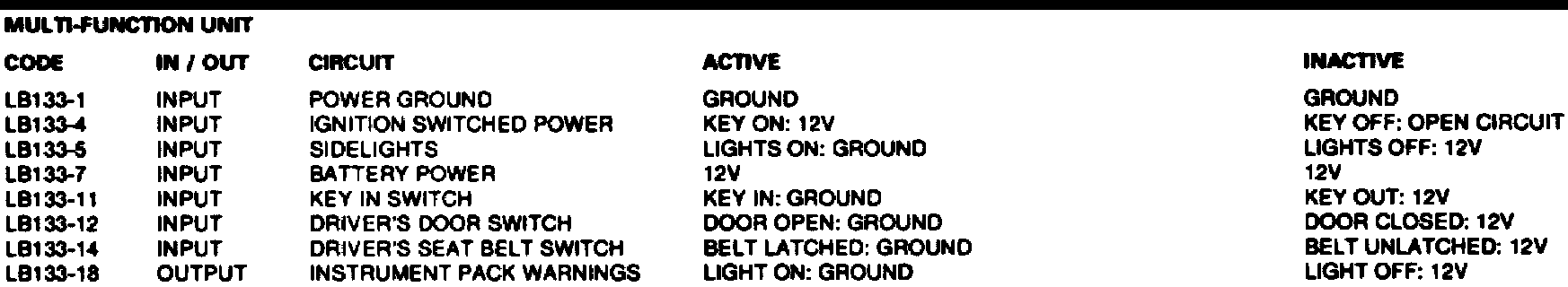

Audible Warnings: Inputs/Outputs:

Inputs/Outputs Informations
