System Diagram

��Security System:

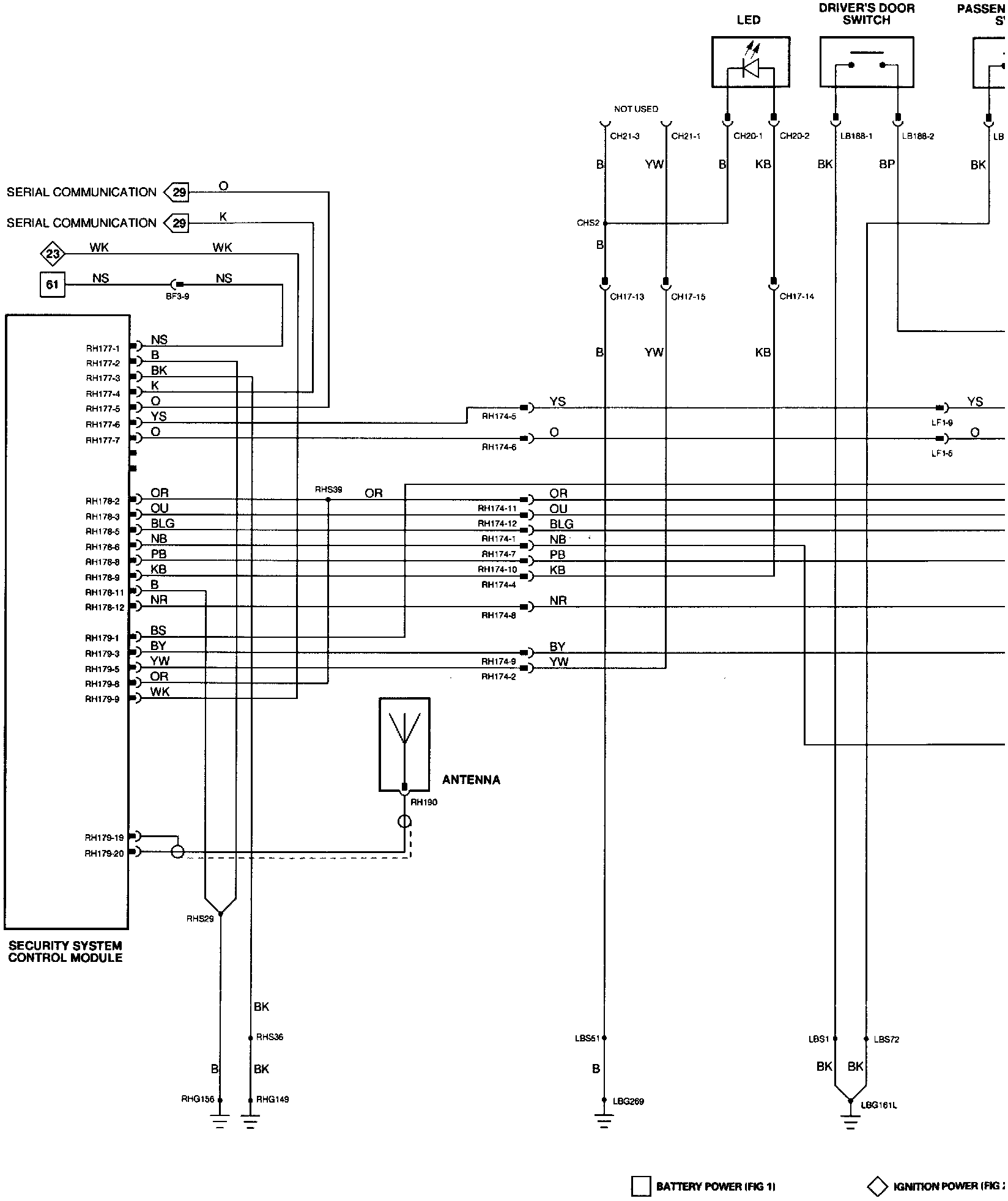

Wiring Diagram

Use the Hyperlink to access Figure Numbers referred to in the wiring diagram. Refer to -- Vehicle / Diagrams Electrical Diagrams

Security System: Components:

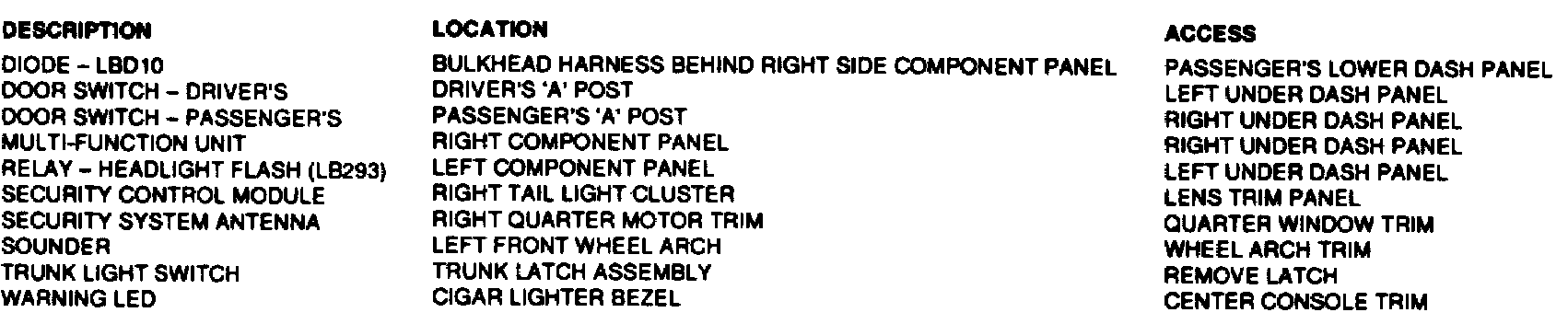

Component Informations

Security System: Connectors:

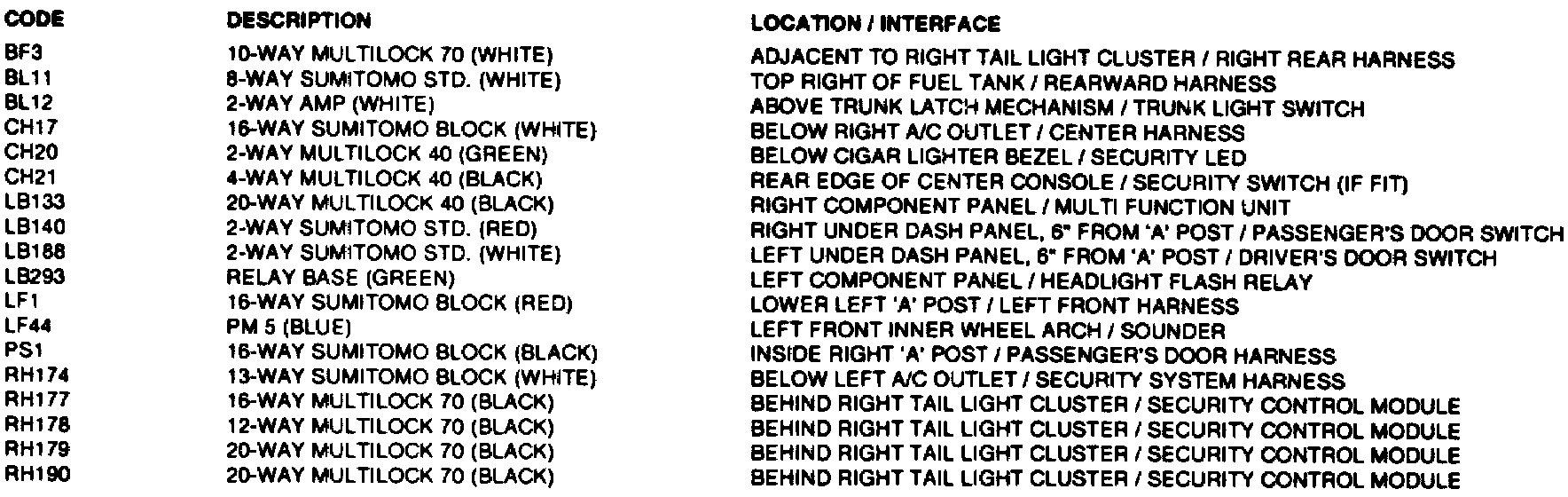

Connector Informations

Security System: Grounds:

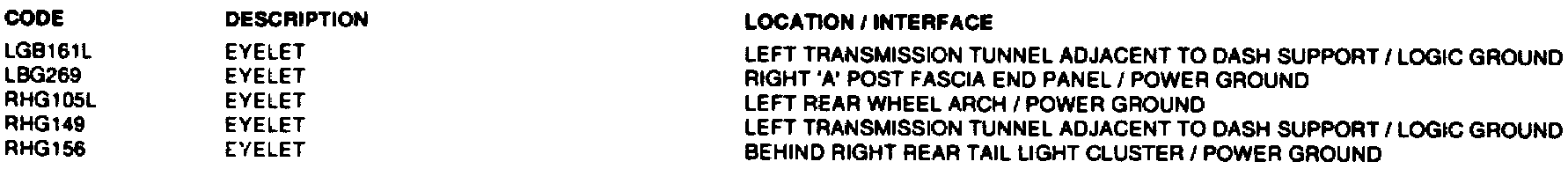

Ground Informations

Security System: Inputs/Outputs:

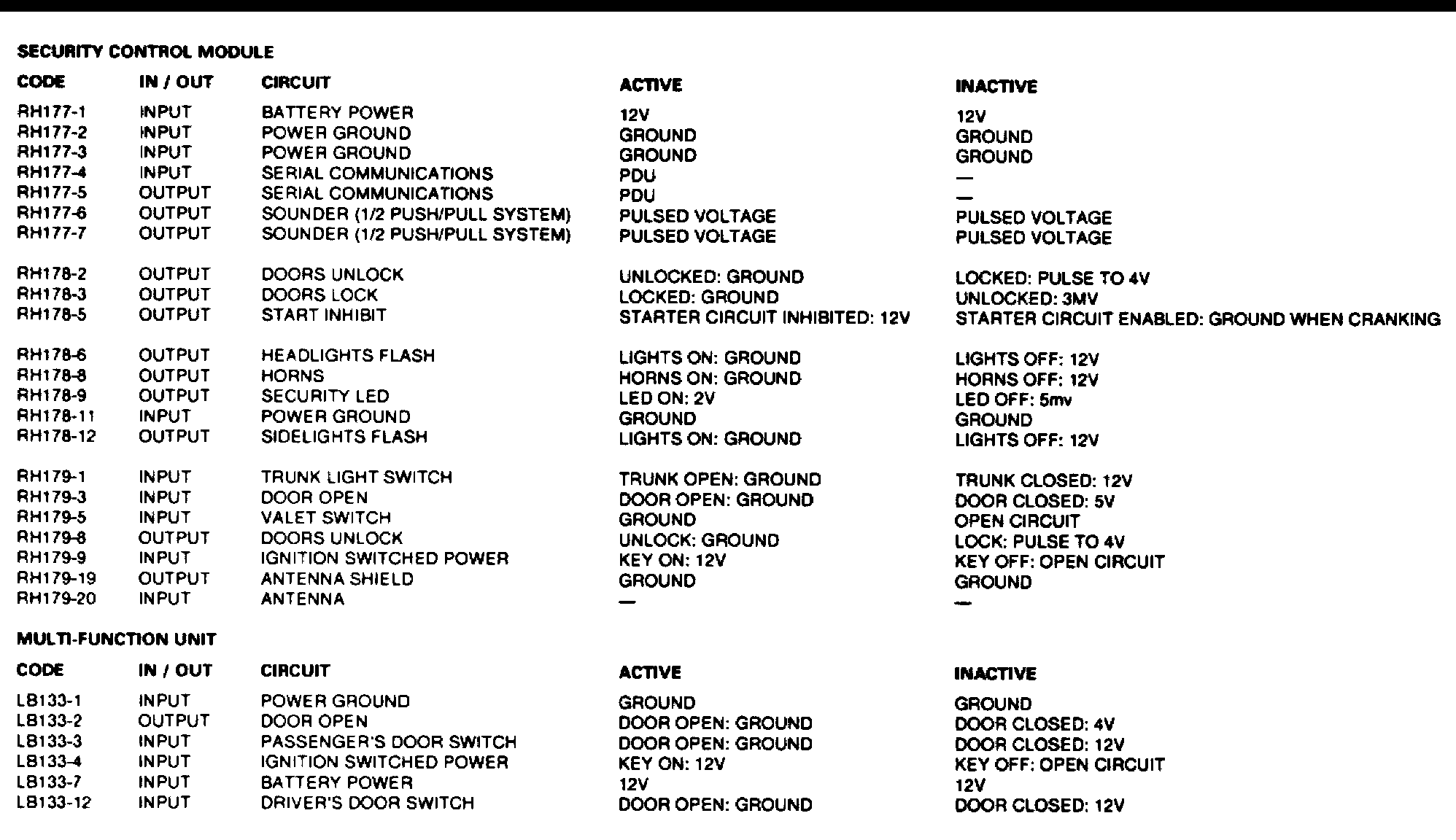

Inputs/Outputs Informations
