Security System

Security System

The factory integrated security system fitted in the 1994 XJS Range is derived from the system introduced in the 1993 Sedan Range.

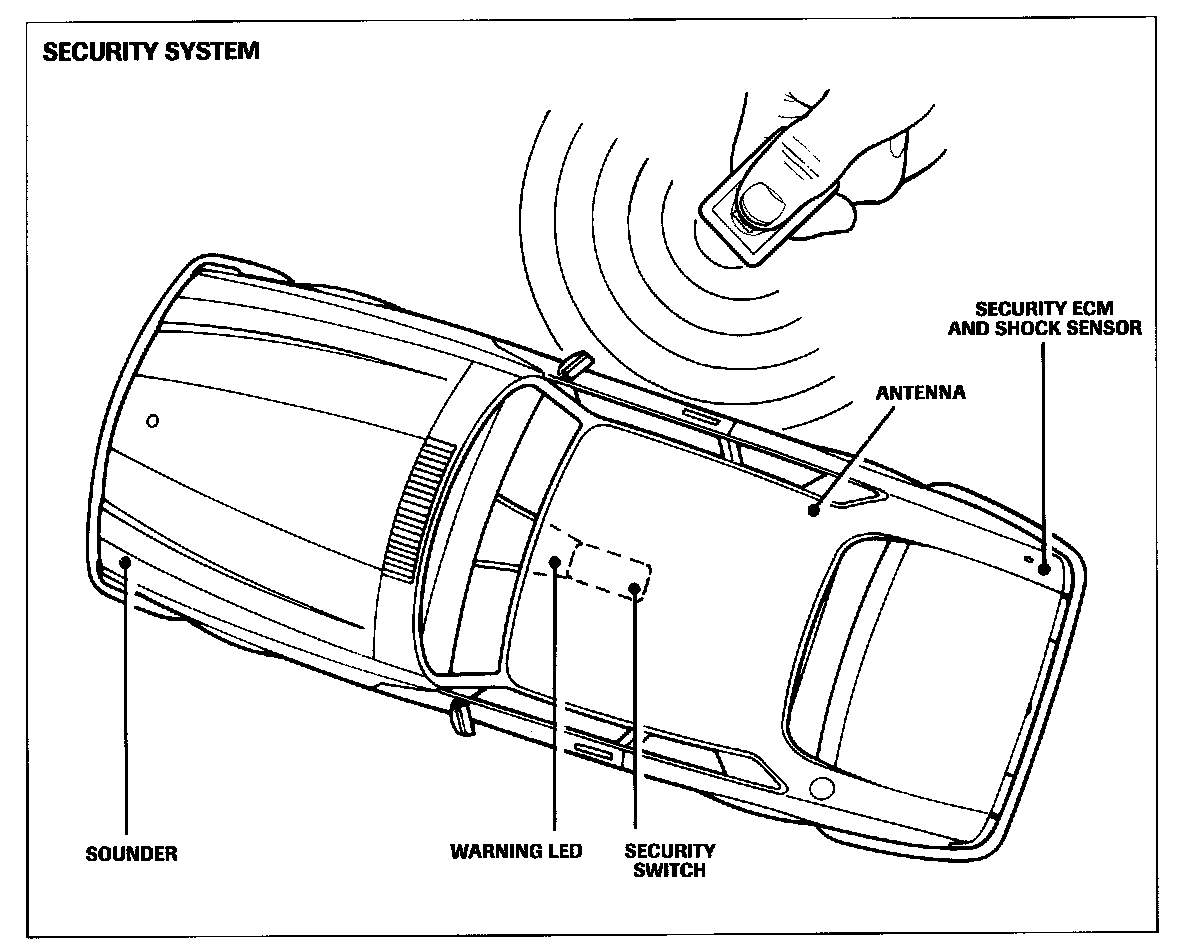

System layout and features



The new XJS security system provides both audible and visual alarms. In addition to the standard security and convenience features, the system can be equipped with a shock sensor. The system is supplied with two radio frequency (RF) key fob transmitters.

Audible and visual alarms (FULL ALARM)
The audible alarm is an intermittent siren and quiet zone lasting 90 seconds, then repeating twice. The visual alarm consists of flashing the headlights (low beams), the side lights and tail lights, the turn signals, and the interior lights.

Standard features
Standard system features include: remote lock/unlock engine starter disable, transmitter signal received indicator (chirp and side lights flash), security OFF reminder tone, quiescent current shutdown, alarm restart (battery removed) and emergency disarm procedure.

Dealer-programmable standard features
The following programmable features are initially enabled:
^ Active arming
^ Audible confirmation of transmission
^ Remote headlight convenience
^ Remote panic alarm

At the customer's option, active arming can be changed to passive arming and the remaining features can be disabled, both by the dealer, using JDS.

Dealer-installed accessory security features
Shock sensing is a dealer-installed feature requiring additional parts.

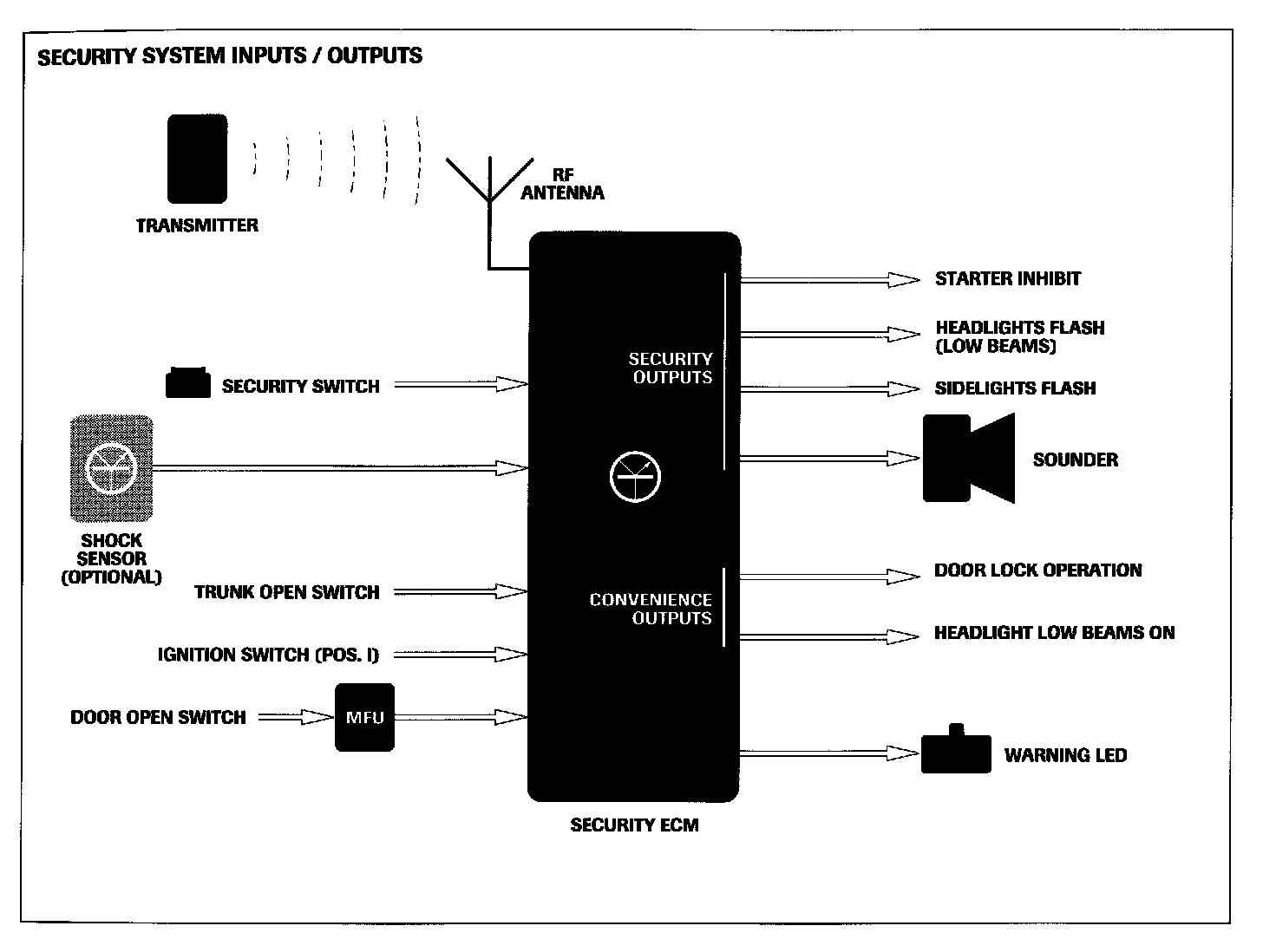

Inputs to the security ECM
The ECM receives inputs from the following sources:

^ Door open switches (via Multi-Function Unit)
^ Trunk open switch
^ Ignition switch (position I)
^ RF transmitter (via antenna)
^ Security switch
^ Shock sensor (optional)

Outputs from the security ECM
The ECM outputs to the following systems and components:
^ Headlights flash (low beams)
^ Side lights flash
^ Horn sounding
^ Security system sounder tones Warning LED

Vehicle function control
The ECM controls the following vehicle functions:
^ Starter inhibit
^ Central door locking
^ Headlights ON (low beams)
