Up to VIN 198335

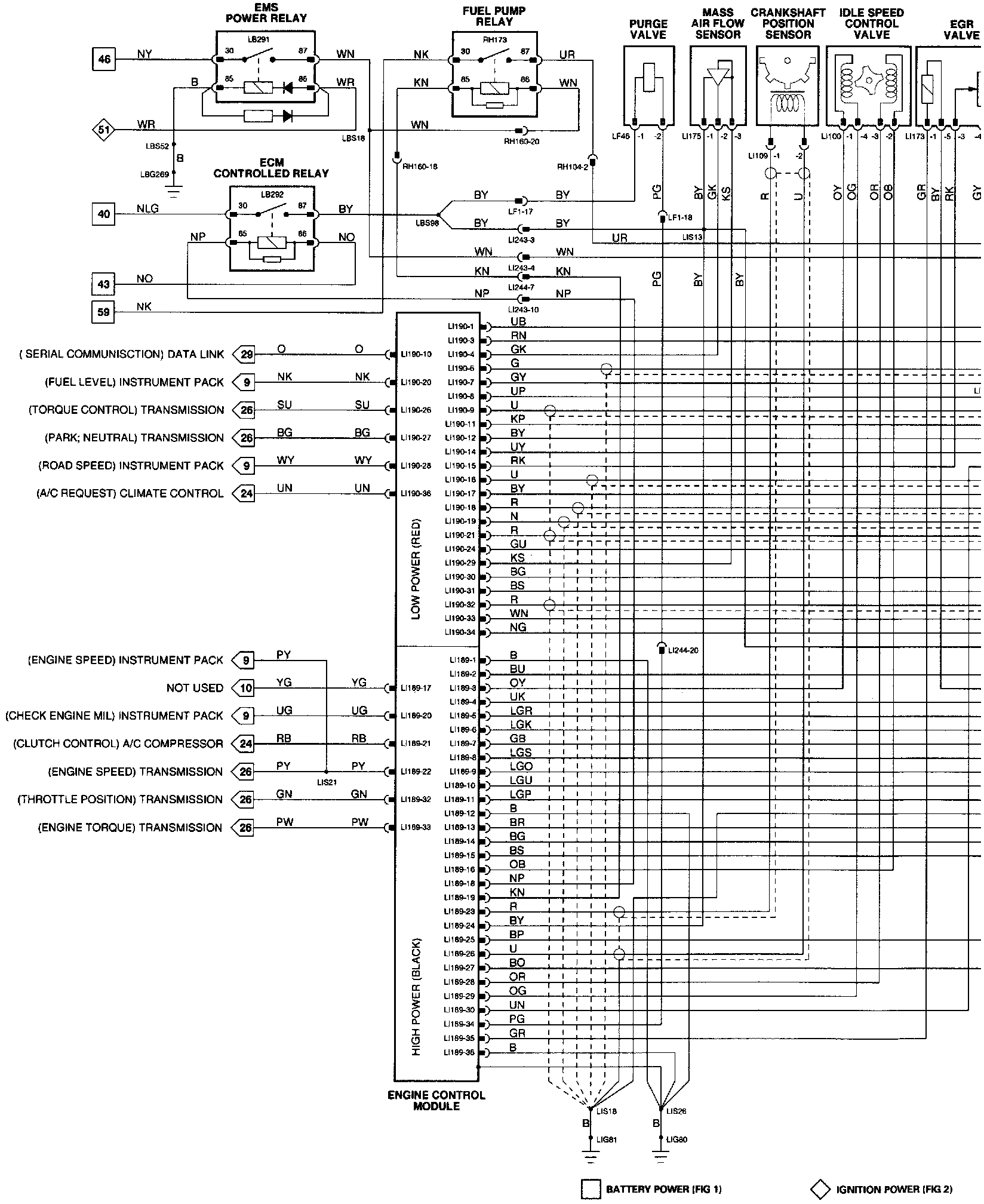

'��Engine Management System:

Wiring Diagram

Use the Hyperlink to access Figure Numbers referred to in the wiring diagram. Refer to -- Vehicle / Diagrams Electrical Diagrams

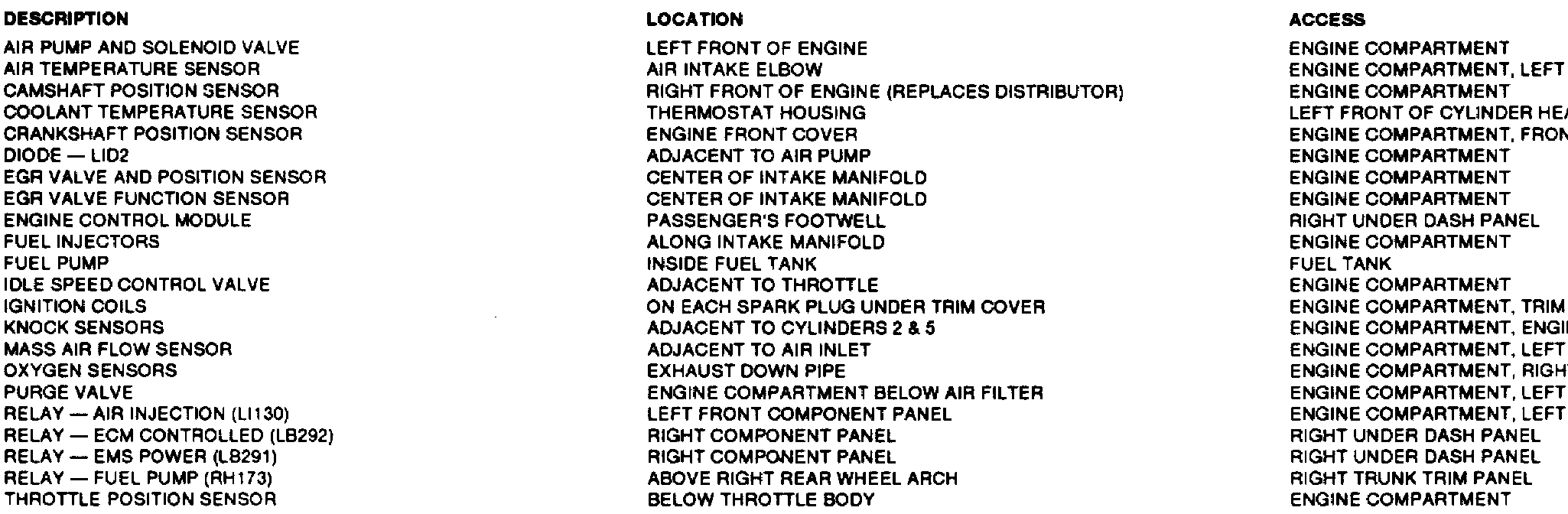

.�Engine Management System: Components:

Component Informations

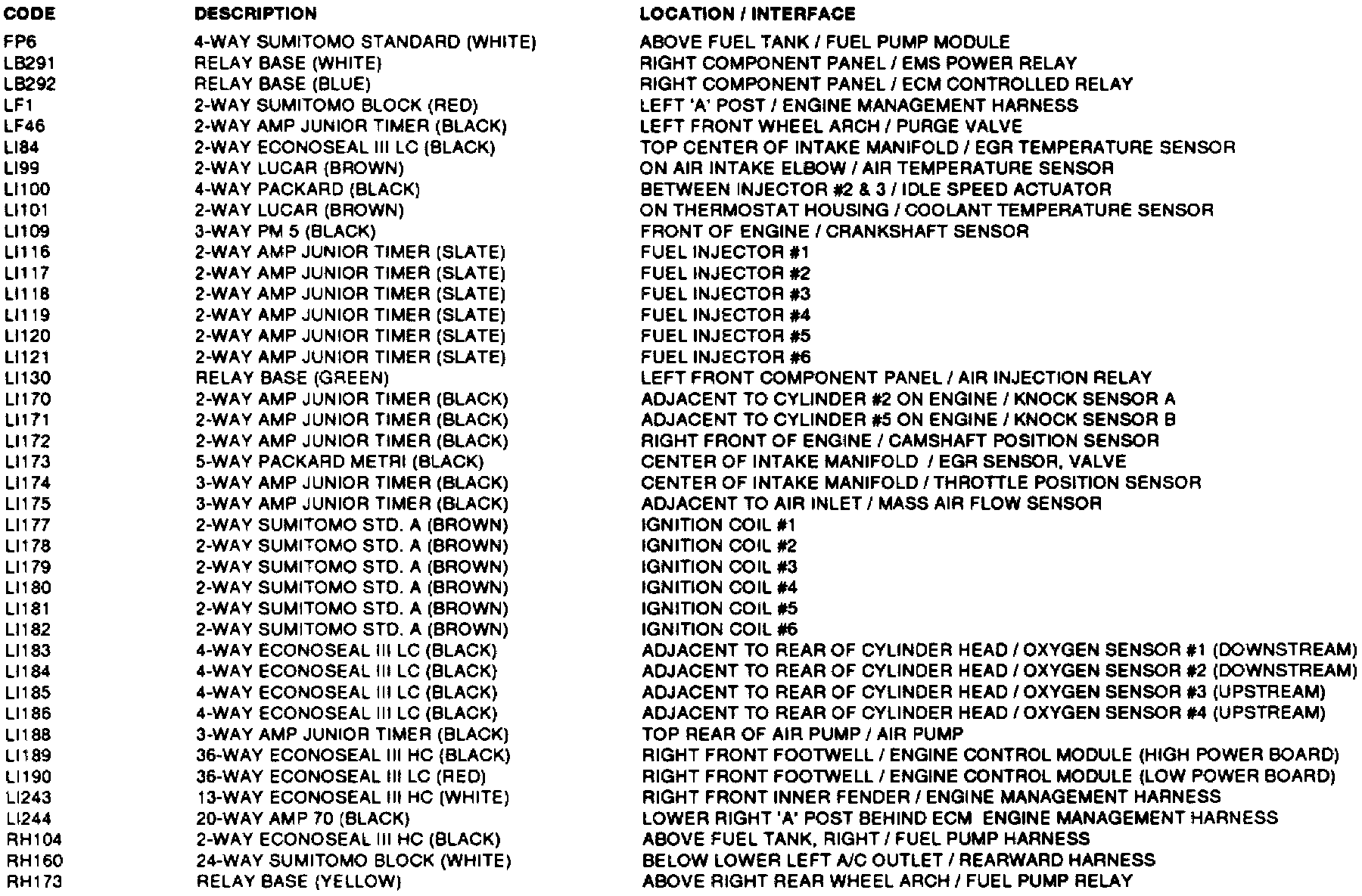

Engine Management System: Connectors:

Connector Informations

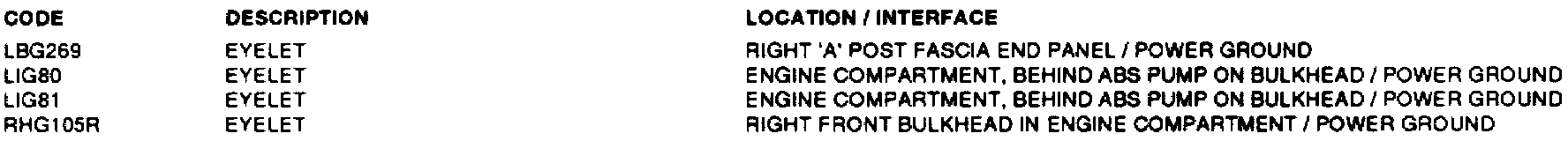

Engine Management System: Grounds:

Ground Informations

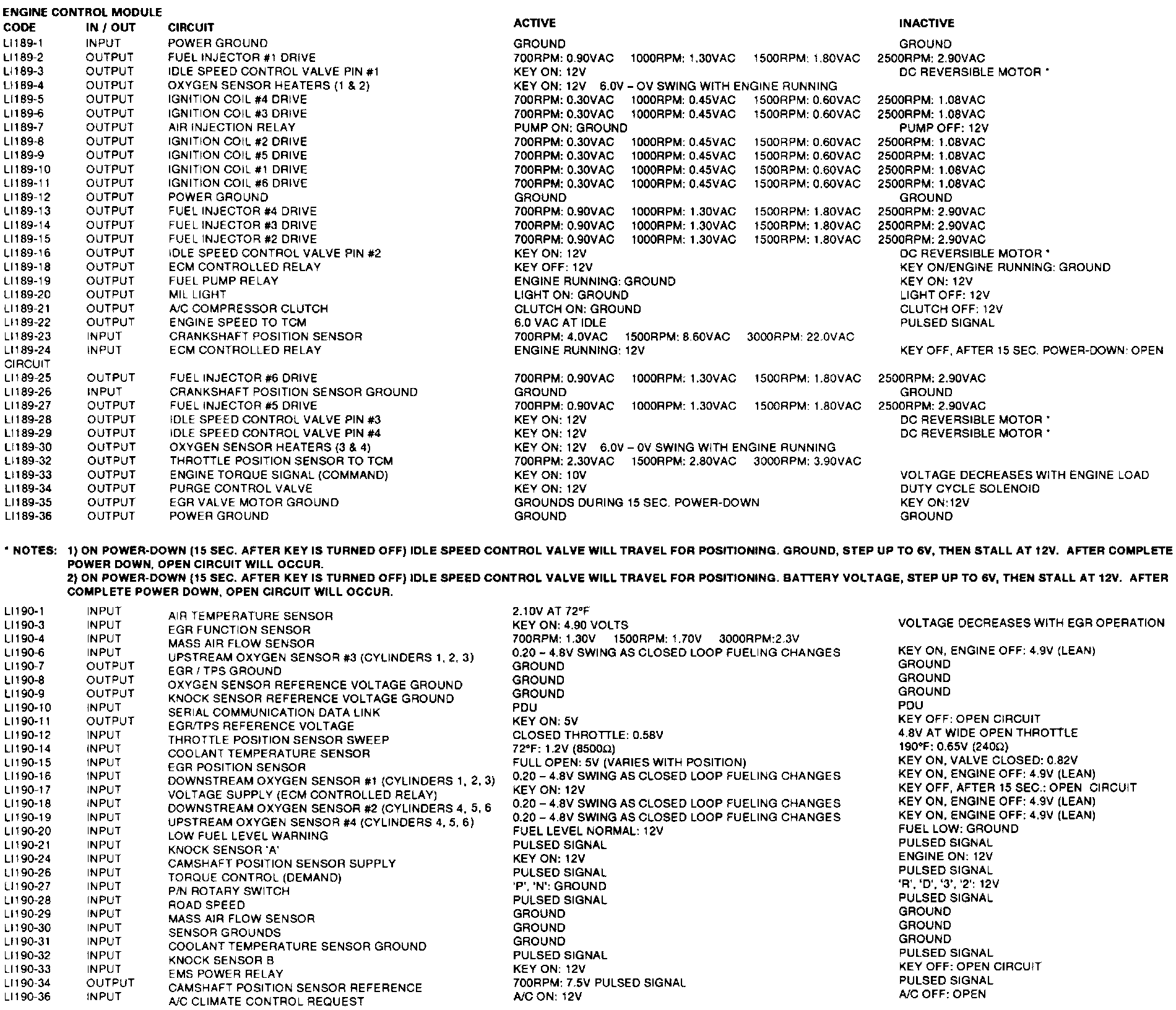

Engine Management System: Inputs/Outputs:

Inputs/Outputs Informations
