Up to VIN 198335

Climate Control System - Up to VIN 198335

έ�Climate Control:

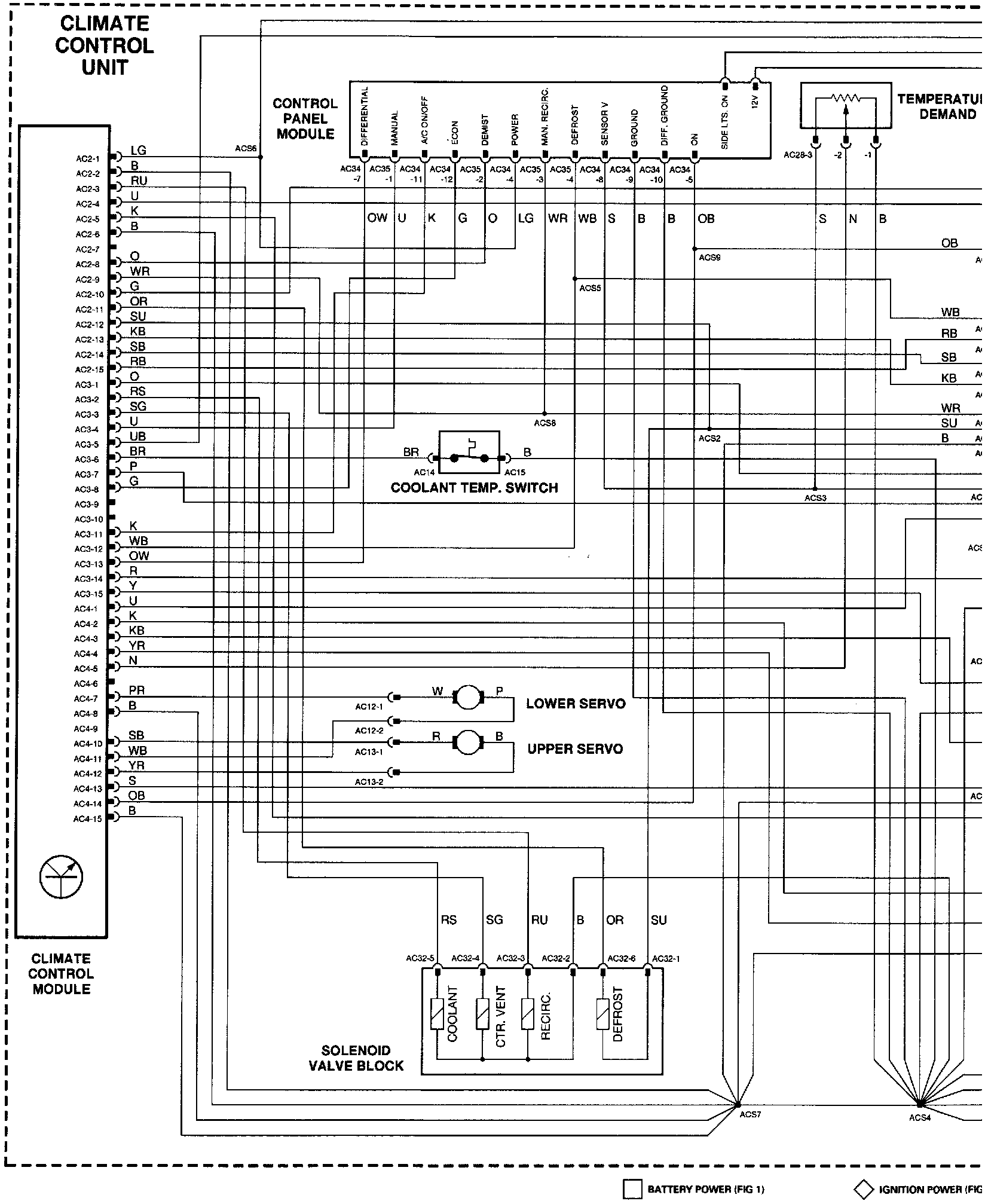

Wiring Diagram

Use the Hyperlink to access Figure Numbers referred to in the wiring diagram. Refer to -- Vehicle / Diagrams Electrical Diagrams

Climate Control: Components:

Component Informations

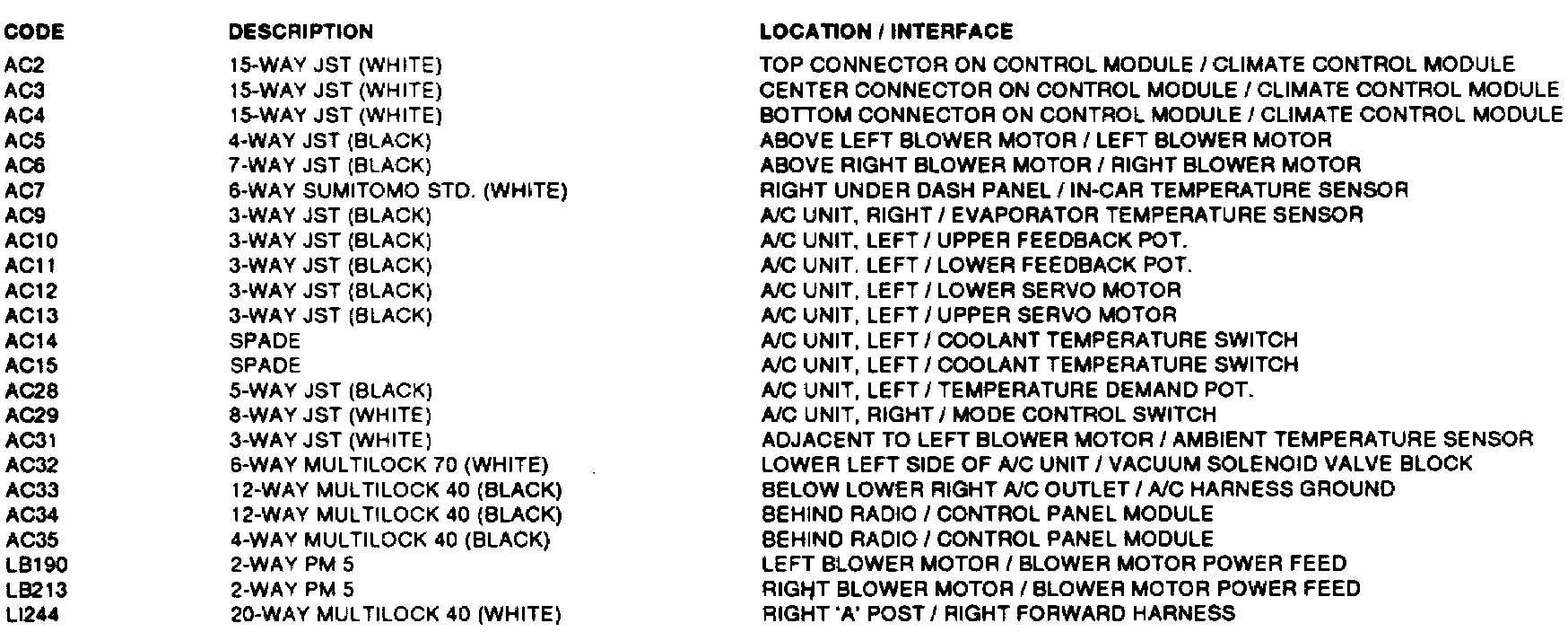

Climate Control: Connectors:

Connector Informations

Climate Control: Grounds:

Ground Informations

Climate Control: Inputs/Outputs:

Inputs/Outputs Informations
