Up to VIN 198335

� Convertible Top:

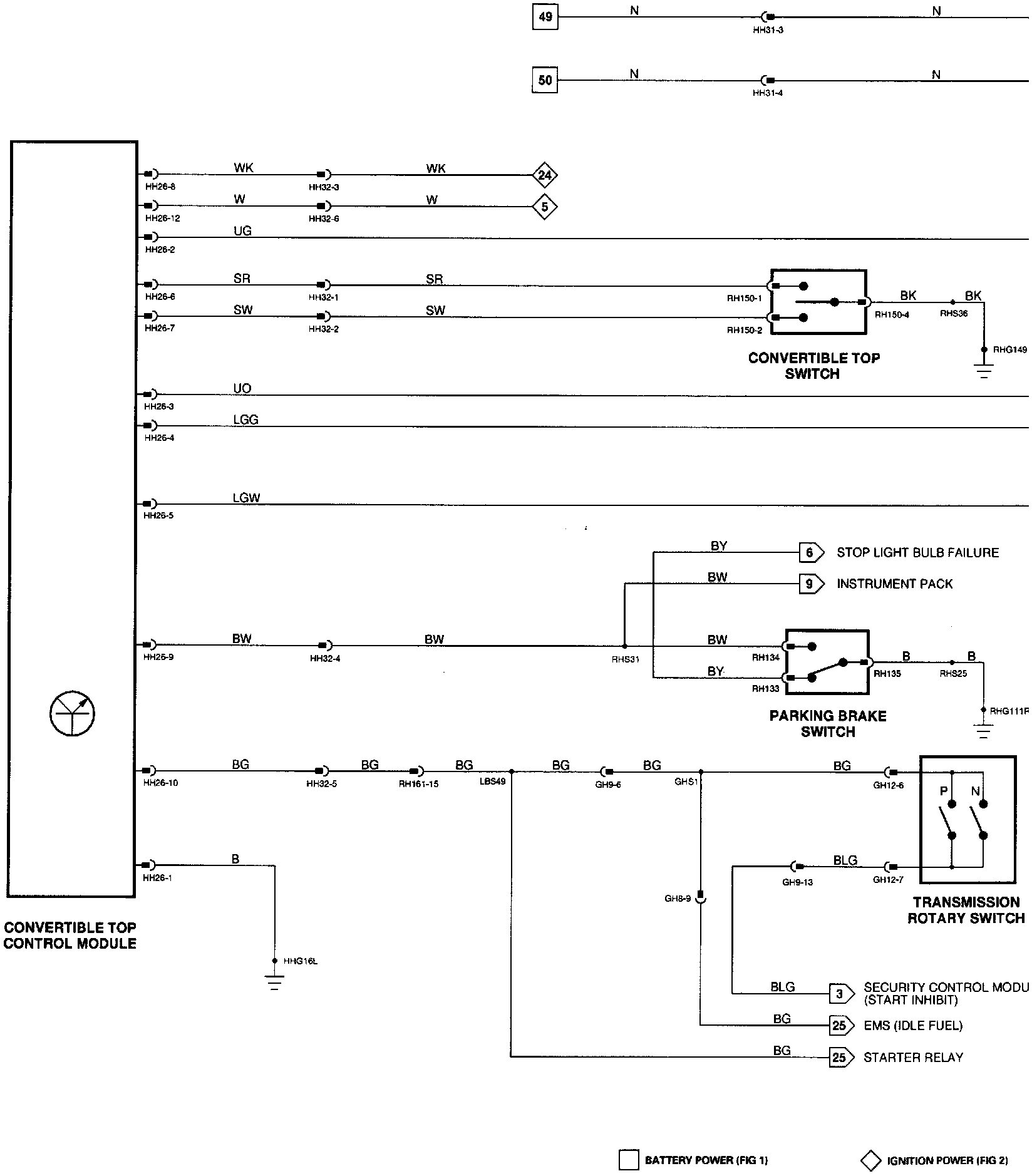

Wiring Diagram

Use the Hyperlink to access Figure Numbers referred to in the wiring diagram. Refer to -- Vehicle / Diagrams Electrical Diagrams

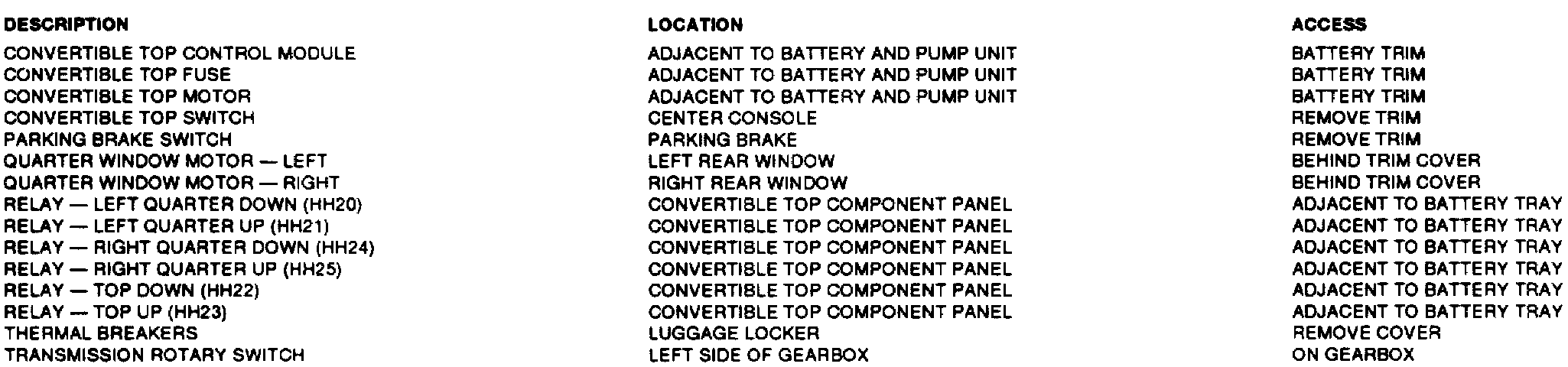

Convertible Top: Components:

Component Informations

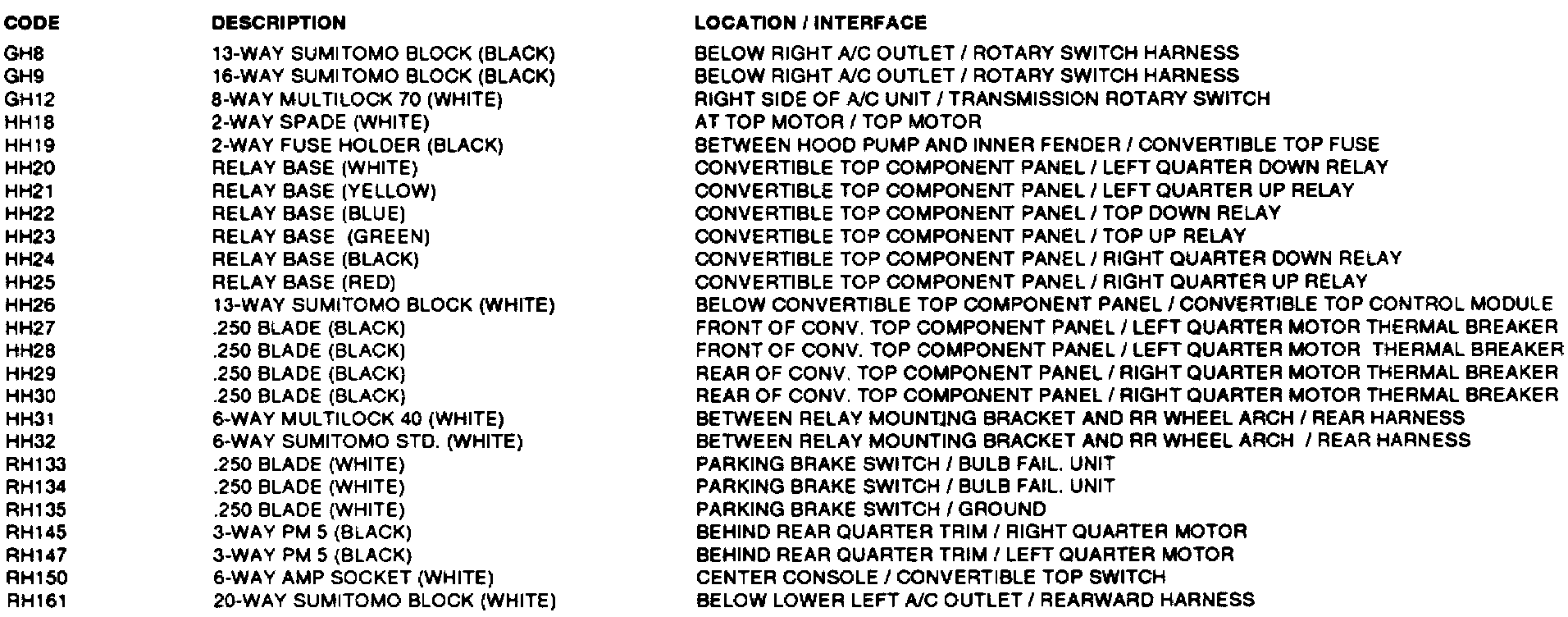

Convertible Top: Connectors:

Connector Informations

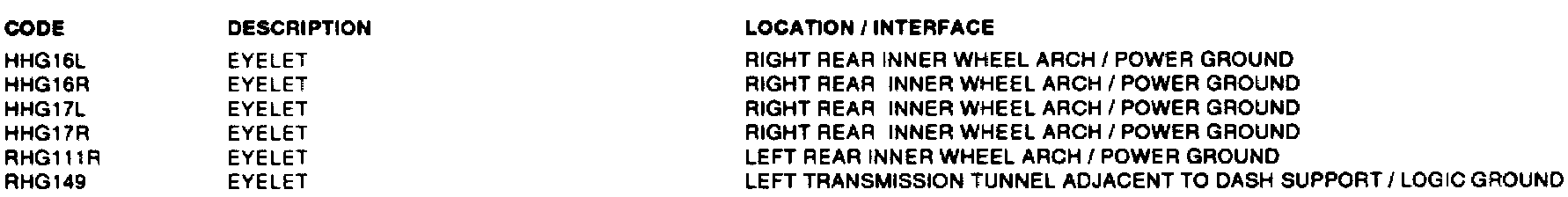

Convertible Top: Grounds:

Ground Informations

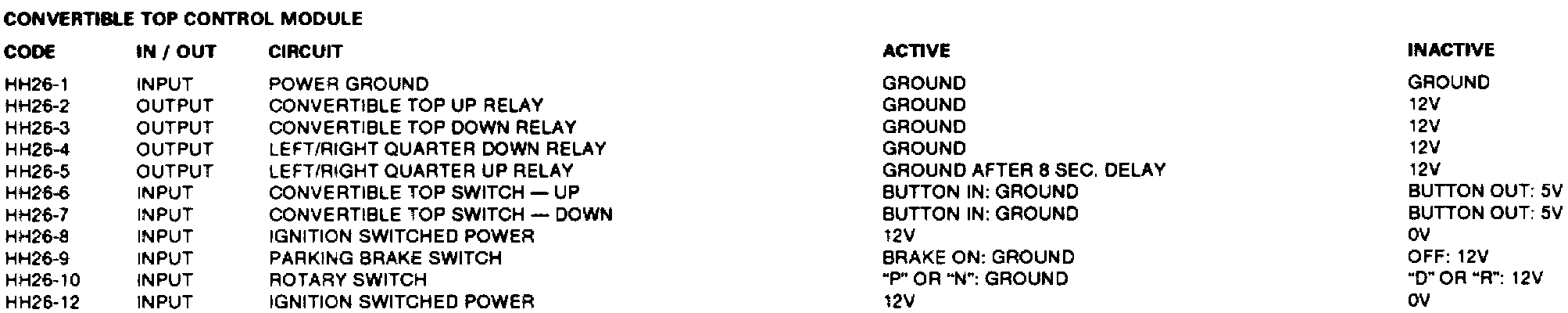

Convertible Top: Inputs/Outputs:

Inputs/Outputs Informations
