Trunk Release Button - Sticking
76-101DATE: 1/95
MODEL: Sedan Range 1995 MY VIN 720001 - 723562
SUBJECT:
Trunk Release Button - Sticking - Repair Procedure - Action 5614
ISSUE:
The trunk release button of 1995 MY Sedan Range vehicles (VIN 720001 - 723562) may stick in position when the button is depressed.
ACTION:
Replace the trunk release button on 1995 MY Sedan Range vehicles within the VIN range at the next service opportunity.
TRUNK RELEASE BUTTON REPLACEMENT PROCEDURE:
1. Remove the interior trunk lights from the trunk lid.
2. Remove the trunk lid trim pad and disconnect the release button electrical connector.
3. Remove the exterior trunk lid finisher.
NOTE:
The trunk release button is secured to the inside of the trunk lid finisher
4. Remove and discard the existing trunk release button assembly and securing screws.
5. Fully seat a new trunk release button assembly to the trunk lid finisher. Apply Loctite-290 to the threads of the new screws (part number JSL 10308 D) and secure the release button assembly.
6. Run the release button harness through the trunk lid and seat the sealing grommet
7. Install the trunk lid finisher and connect the release button electrical connector.
8. Fit the trunk lid trim pad and trunk lights.
9. Check the operation of the trunk lights and the trunk release button.
PARTS INFORMATION:
DESCRIPTION PART # QTY
Trunk release button -
Grey Jaguar head/green background GNA 352OBB 1
Trunk release button VDP -
Gold Jaguar head/red background GNA 352OAB 1
Screw JSL 1O3O8D 2

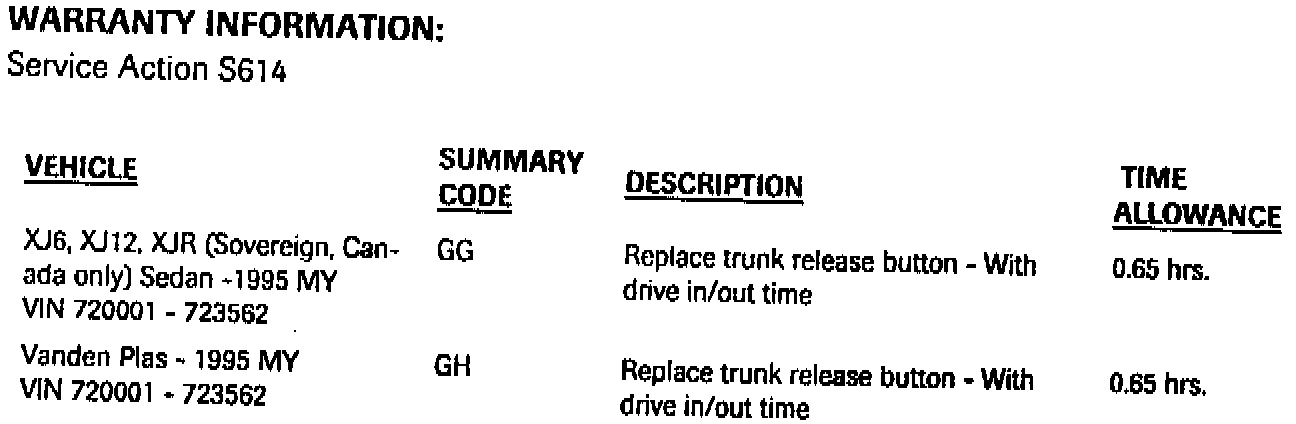

WARRANTY INFORMATION
CLAIM SUBMISSION PROCEDURE:
Warranty summary codes have been assigned to this service action in order to simplify claim submission. The dealership will be reimbursed the parts and labor time allowance as indicated.
DCS Dealers
Submit claims using the appropriate summary code for the vehicle model and work performed. Follow standard campaign submission procedures.
Non-DCS Dealers
Submit claims on the Recall Campaign Summary form W-25. Enter the appropriate summary code for the vehicle model and work performed in the Repair Code column. Do not use the W-1 warranty claim form.
