Security System Transmitter - Battery Replacement

NO: 36-135

Security System Transmitter - Battery
Replacement

MODEL: Sedan Range 1995 MY

DATE: 11/94

ISSUE:

Attempting to pry the battery access cover off of the security system transmitter may cause the transmitter to separate and damage electronic components.

ACTION:

To prevent damage when removing the battery access cover of 1995 MY Sedan Range security system transmitters, use the following procedure.

SECURITY SYSTEM TRANSMITTER BATTERY ACCESS COVER REMOVAL

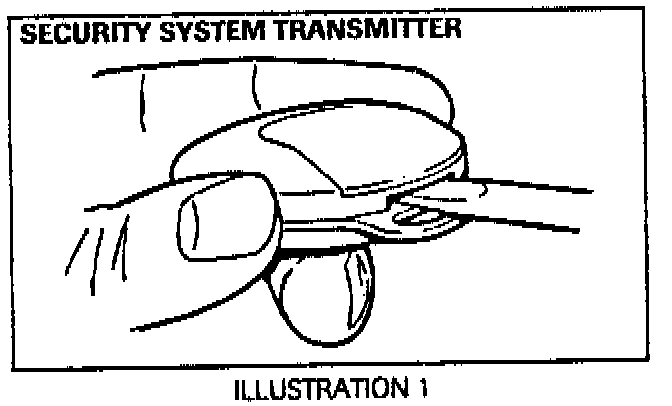

1. Insert a small (1/16" thick) screwdriver between the access cover and body (Illustration 1).

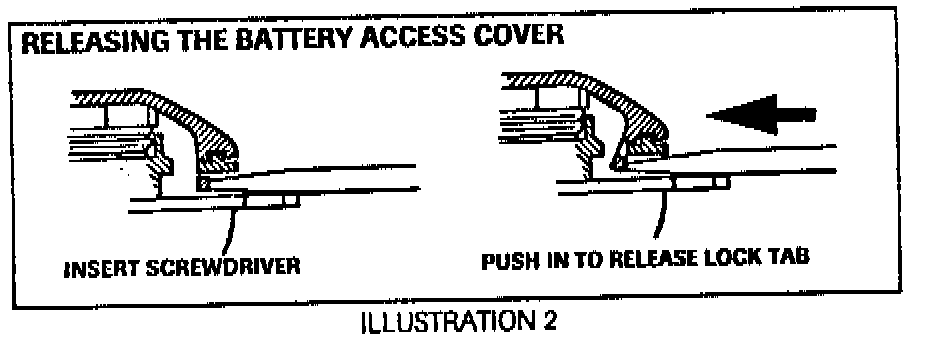

2. Push the screwdriver straight in to release the lock as shown in Illustration 2.

CAUTION
Twisting the screwdriver or attempting to pry the cover open will damage the transmitter.




3. The internal spring will push the access cover open.
