P1792
SPORT MODE INDICATOR - P1792The sport mode lamp is located in the instrument pack. The input is "pulled up" to nominal battery voltage (+12V) and is supplied by an ignition switch feed. The TCM drives the signal to ground to turn the lamp ON. The diagnostic runs on the sport mode indicator output continuously during initialization and operation. The check can detect an open circuit, a short circuit to battery and short circuit to ground, although the diagnostic cannot distinguish between an open circuit and a short to ground.
Possible Causes:
Faulty wiring harness/connectors.
Faulty indicator lamp.
Faulty instrument pack.
Effects:
No illumination of indicator lamp on instrument pack.
Permanent illumination of indicator lamp on instrument pack.
Remedy:
Repair or renew harness/wiring.
Renew indicator lamp.
Examine instrument pack fault diagnosis.

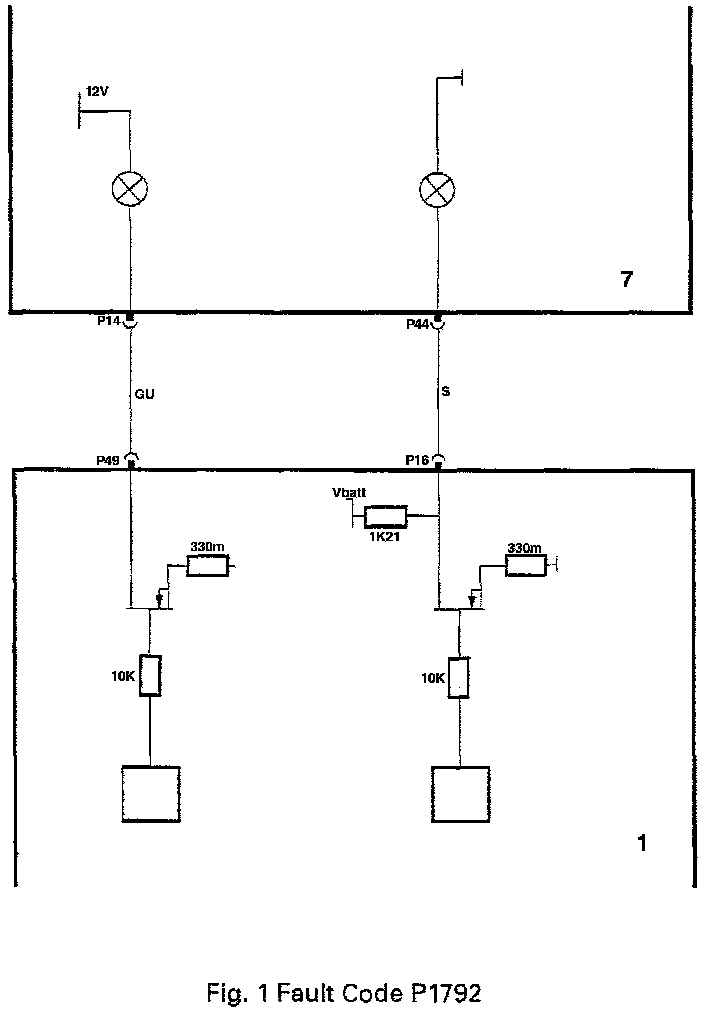

Troubleshooting Schematic
Key To Schematic Diagrams
1. Transmission Control Module (TCM)
2. Transmission Unit
3. TCM Multi-pin Connector
4. Transmission Rotary Switch
5. Transmission Connector Plug
6. Engine Control Module
7. Instrument Pack
8. ABS/Traction Control Control Module
9. Kickdown Switch
Pin Outs
