P0706
TRANSMISSION RANGE SENSOR - P0705/P0706The rotary switch is located on the LH side of the transmission. The harness incorporates the transmission wiring and runs into the car through the a hole in the LH side of the tunnel. The connectors GB001 and GB002 are located on the side of the selector mechanism "J" gate assembly.
Transmission Range Sensor Circuit - P0705
This test is performed continuously by the background diagnostics during operation. The test is a plausibility check on the 3 bit Gray code. The test criteria is that an invalid code must not be seen. If a Z code is seen for more than 100 ms, then this fault code will be stored and the transmission will adopt the default function.
Transmission Range Sensor Circuit Range/Performance - P0706
This is a plausibility check on the 3 bit Gray code which is only performed once during cranking when the engine speed reaches a specific threshold. If the gear is not P or N when this test is performed, then this fault cede will be flagged and the transmission will adopt the default function.
Rotary Switch (GB002)
PIN 1 - SWITCH COMMON
PIN 2 - CODE X OUTPUT
PIN 3 - CODE Y OUTPUT
PIN 4 - CODE Z OUTPUT
Possible Causes:
Open circuit on X, Y or Z line from rotary switch.
Faulty operation of rotary switch.
Effects:
MIL illuminated.
Transmission warning lamp illuminated.
Maximum fluid pressure applied.
Limp home mode applied.
Remedy:
Repair or renew harness 1 connectors.
Check selector cable and adjust or renew if necessary.
Check rotary switch and adjust or renew if necessary.

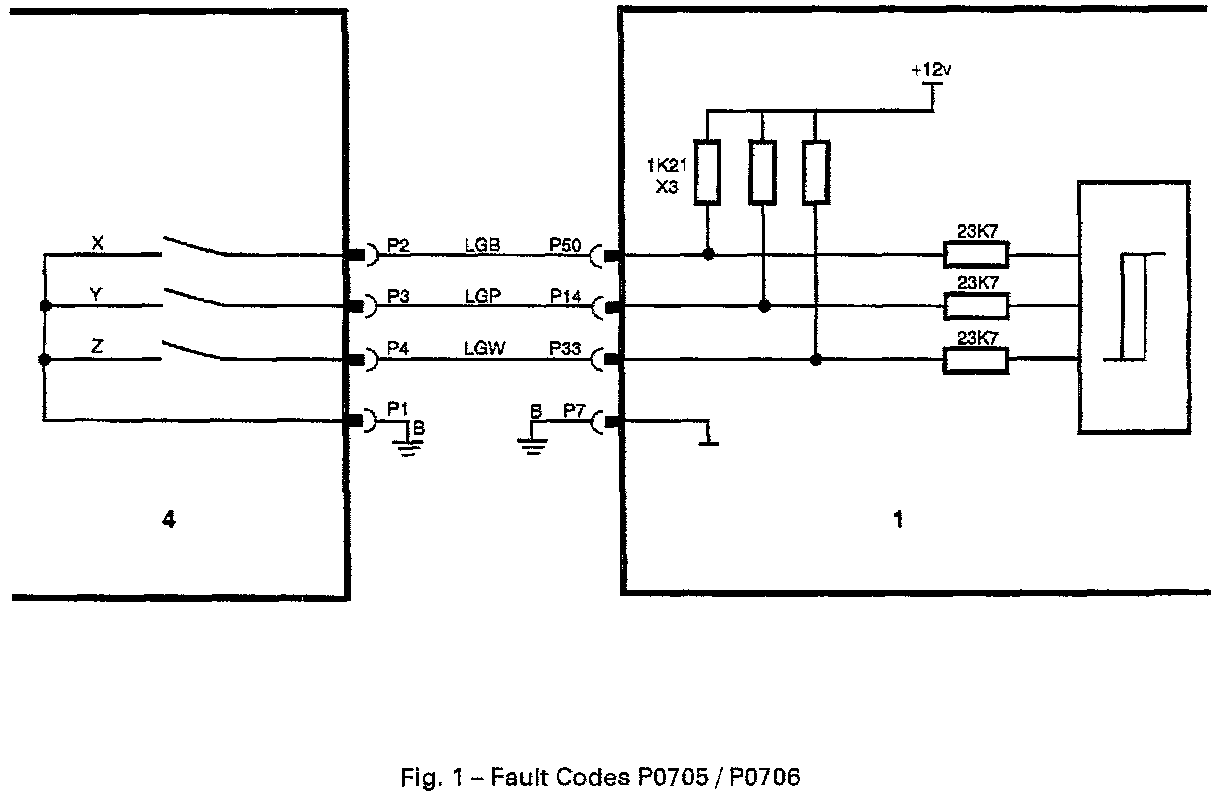

Troubleshooting Schematic
Key To Schematic Diagrams
1. Transmission Control Module (TCM)
2. Transmission Unit
3. TCM Multi-pin Connector
4. Transmission Rotary Switch
5. Transmission Connector Plug
6. Engine Control Module
7. Instrument Pack
8. ABS/Traction Control Control Module
9. Kickdown Switch
