Overdrive Assembly Removal

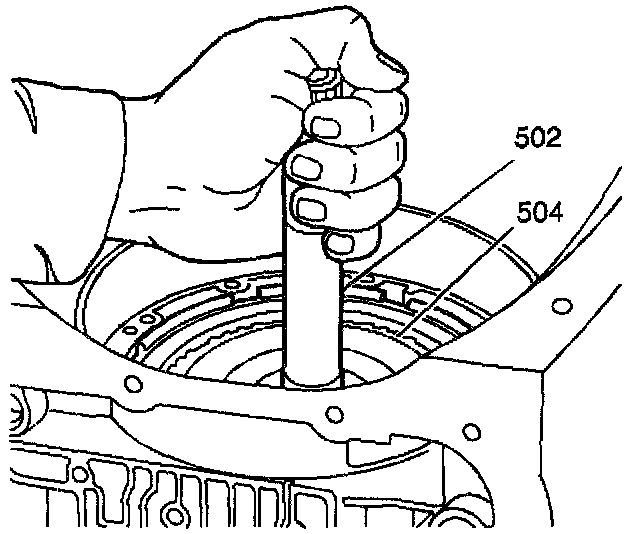

Remove the overdrive unit assembly (504) by grasping the turbine shaft (502) and lifting.
