Front End Play Check

^ Tools Required
- J 8001-3 Dial Indicator
- J 8520 Cam Lobe Lift Indicator - Dial Indicator Adapter Set
- J 28585 Snap Ring Remover

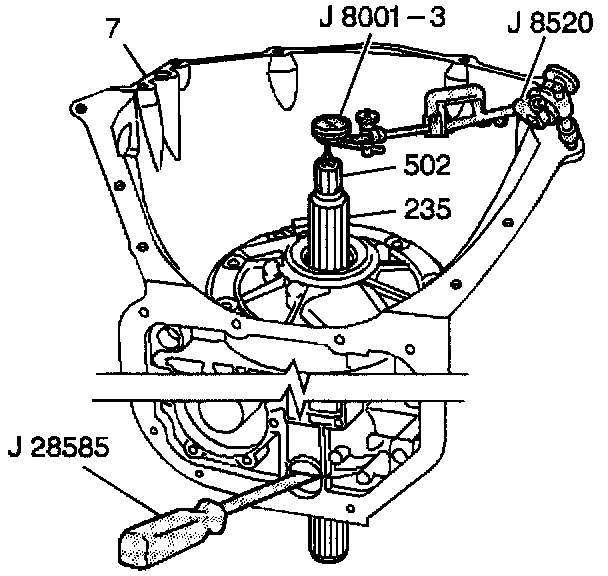

1. Assemble the J 8520 by attaching the threaded rod and the dial indicator holder to one of the bolt holes on the transmission case.
2. Assemble J 8001-3 and mount the tool onto the holder. Index the tool to the end of the turbine shaft (502).
3. Eliminate any slack by pressing down on the turbine shaft (502).
4. Apply upward pressure on the output carrier (661) with J 28585.
5. Set the J 8001-3 to 0.
6. Pull up on the turbine shaft (502) while holding up the output carrier (661) with J 28585. The correct end play is between 0.102 - 0.559 mm (0.004 - 0.022 inch).
7. Retain this measurement for future reference.
8. Remove the tools.
