Campaign - Ground Strap Installation: Overview
18-57DATE: 08/01
MODEL:
1994-95 MY V12XJS
1994 MY XJ12
MIL Illuminated - H02S - DTC 44 and/or 45 - Add Ground Straps - Service Action S494
ISSUE:
Service Action S494 applies to the following vehicles:
^ 1994 to 1995 Model Year XJSV12 Vehicles
VIN Range: 188105-221234
^ 1994 Model Year XJ12 Vehicles
VIN Range: 673590-708235
In addition, the following 1994 Model Year pre-production XJ12 vehicles should be modified: 671007, 671040, 671110, 671139, 671177, 671224, 672305 and 672308 (USA) and 671078 for Canada.
Some XJS 6.0LV12 and XJ12 series vehicles within the above VIN ranges may experience customer concerns of the 'check engine' malfunction indicator light illuminating with diagnostic trouble codes (DTCs) FF44 and/or FF45 stored. These DTCs show an inconsistent reading from the Heated Oxygen Sensors (H025). The H025 are giving a faulty reading due to a slight degradation of the engine to body ground straps.
In order to prevent this issue occurring again, two supplementary ground straps need to be added to all vehicles within the above VIN range.

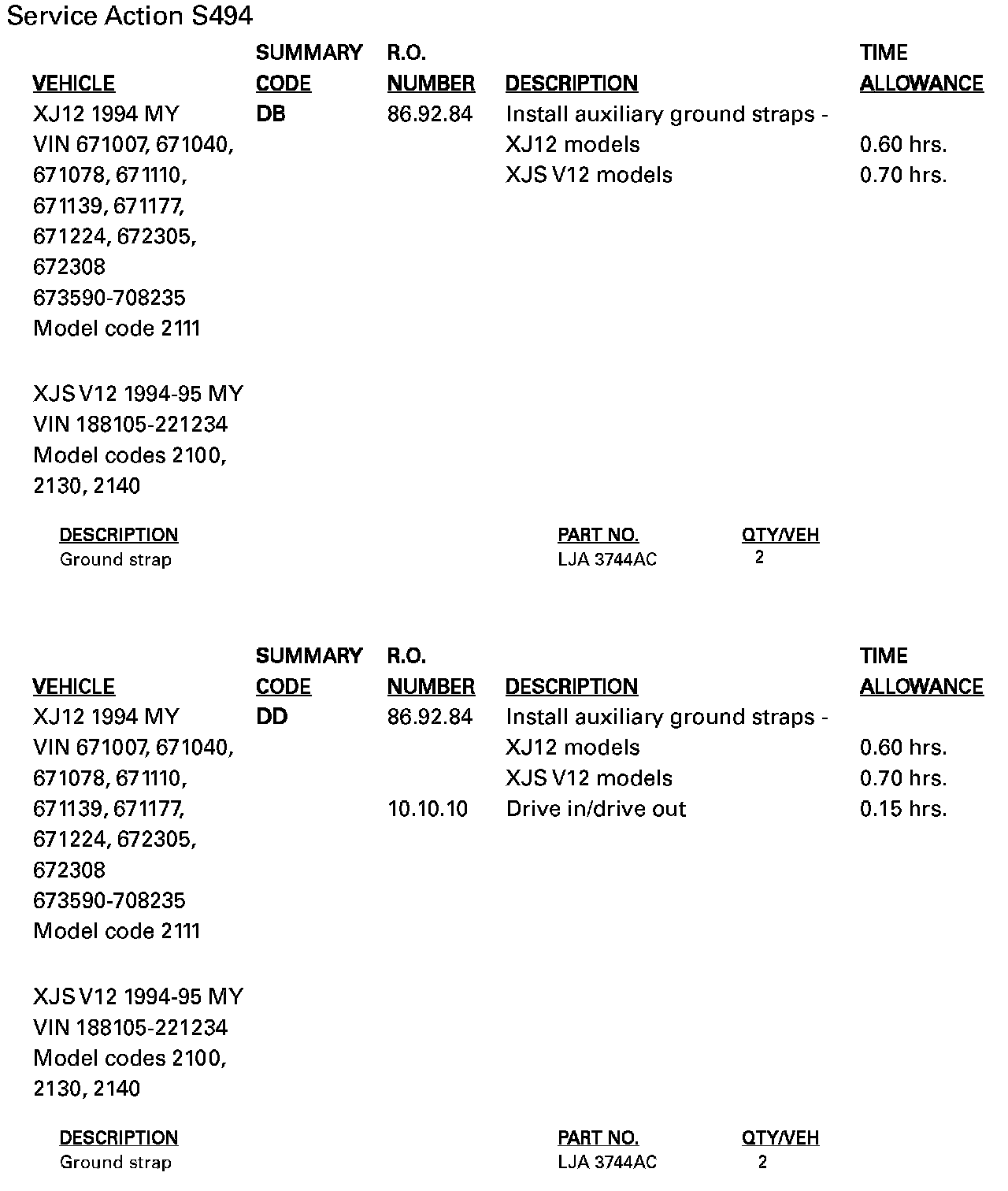

PARTS INFORMATION
WARRANTY INFORMATION:
NOTE:
Always perform a DCS claim search first to determine whether this service action has been performed on this vehicle. The warranty selection under the vehicle inquiry will give a listing of all claims against the vehicle. If S494 appears in the fault code field, do not perform this service action.
CLAIM SUBMISSION PROCEDURE:
Warranty summary codes have been assigned to this service action in order to simplify claim submission. The dealership will be reimbursed the parts and labor time allowance as indicated.
DCS DEALERS
Submit claims using the appropriate summary code for the vehicle model and work performed. Follow standard campaign submission procedures.
NON-DCS DEALERS
Submit claims on the Recall Campaign Summary form W-25. Enter the appropriate summary code for the vehicle model and work performed in the Repair Code column. Do not use the W-1 warranty claim form.
