Fuse Block: Application and ID
Fuse Identification and Location
Component Panel Location:

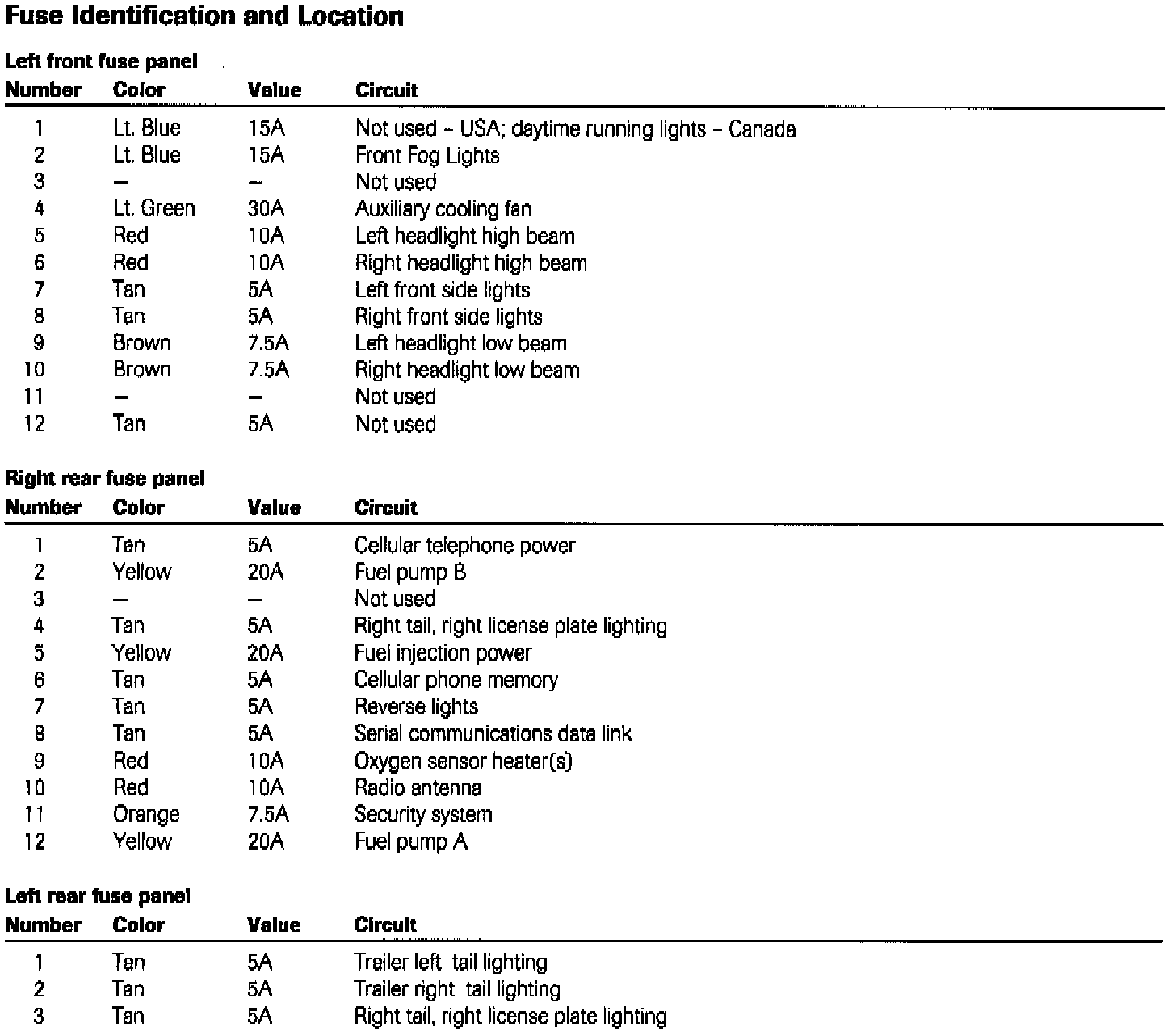

Fuse ID & Location:

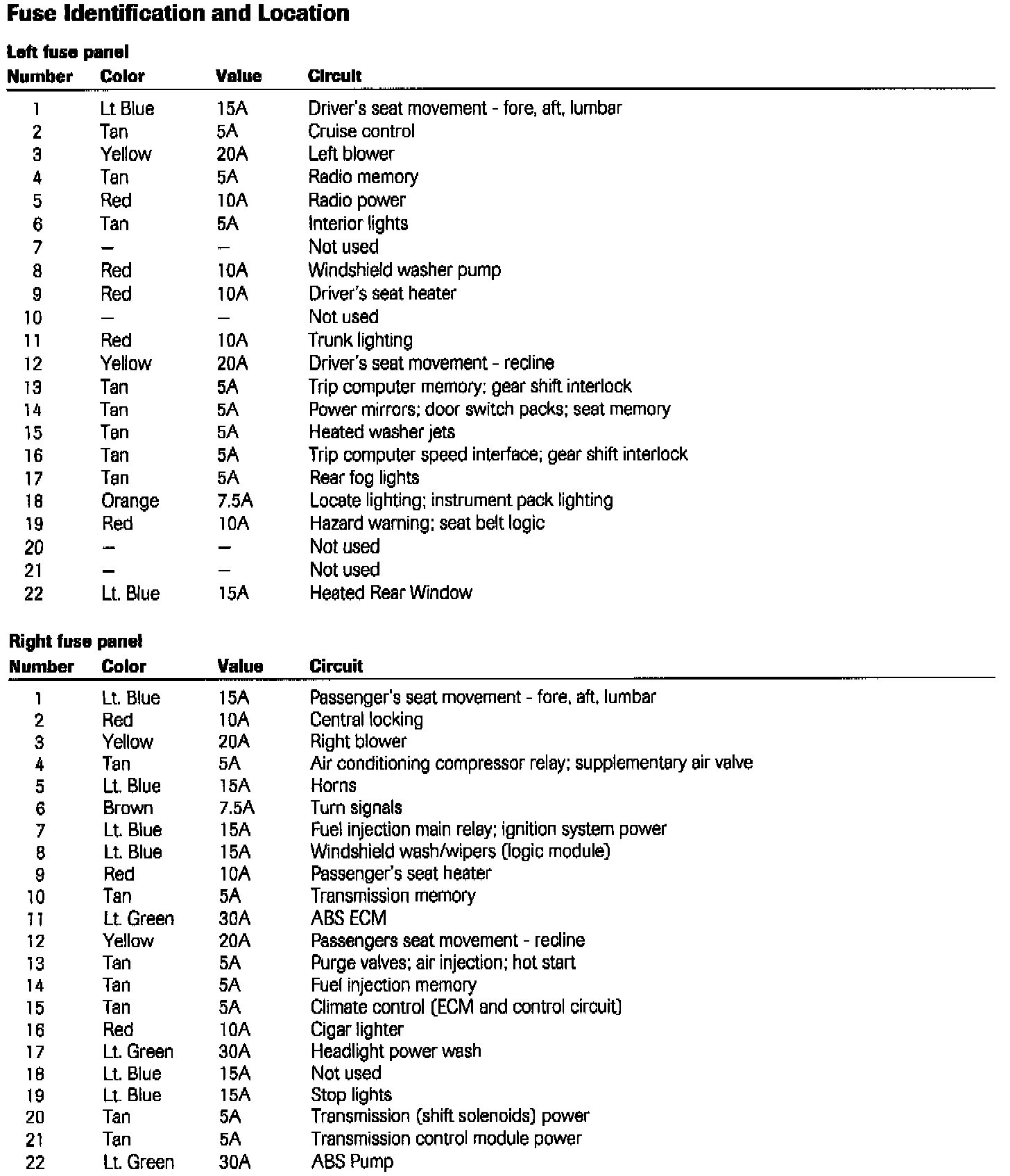

Fuse ID & Location:
