Rear Servo Pin Spec (Visual ID)








Rear Servo Pin Specification

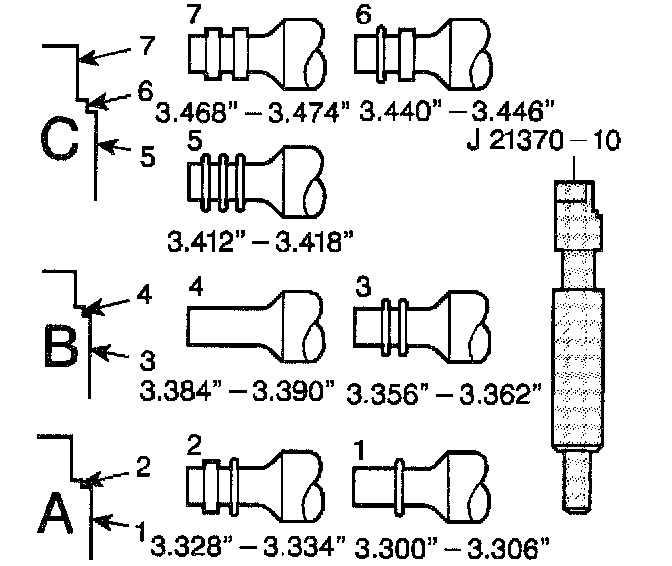

Refer to the rear servo pin selection chart above in order to determine the correct pin usage.
