Home >> Jaguar >> 1994 >> XJ-S Convertible (XJ27) V12-6.0L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> System Specifications >> Overhaul 4L80-E >> End Play Specifications

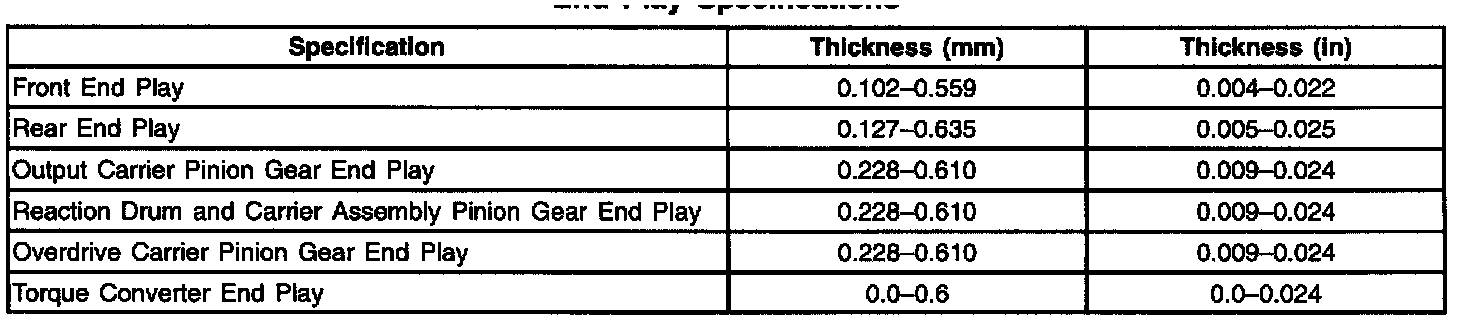

End Play Specifications







END PLAY
