ZF 4HP 24E

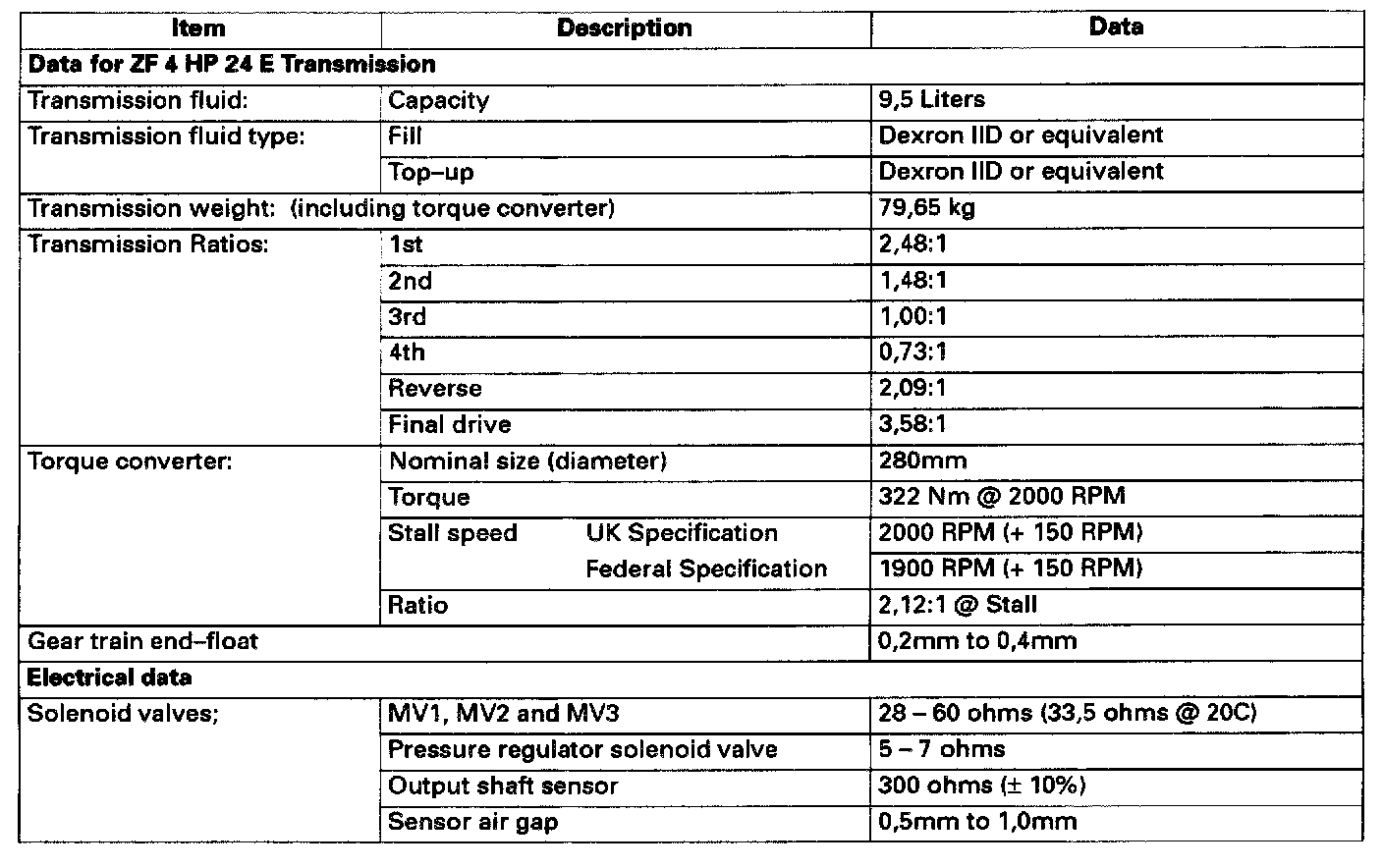

Transmission Specifications

Shift Points for 1994-1997 vehicles with AJ16 4,0L Engine

Transmission Specifications 4.0:





Transmission Description:





Transmission Overview:
