Home >> Jaguar >> 1994 >> XJ-S Convertible (XJ27) V12-6.0L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications

System Specifications


Engine Torque Specifications

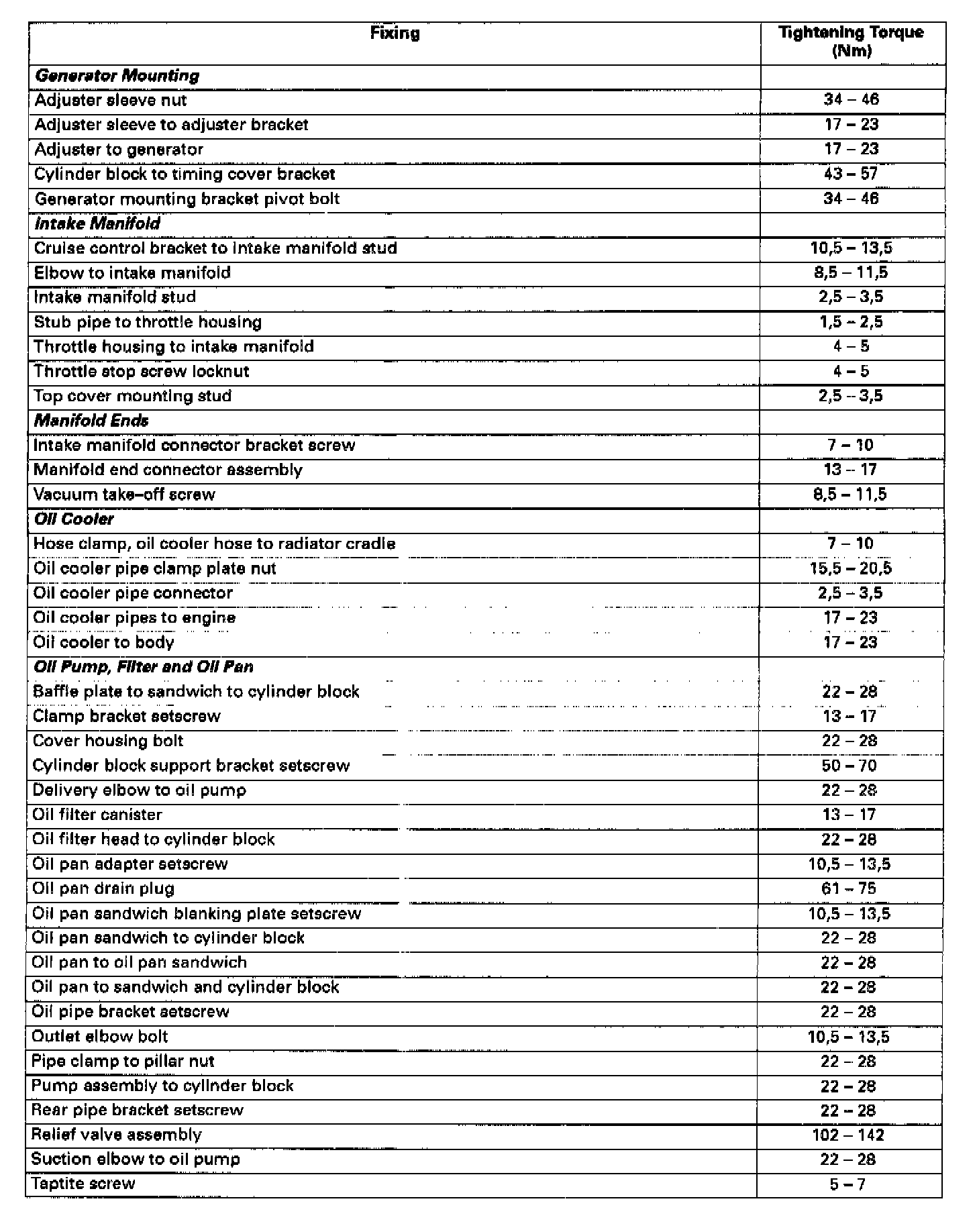

Torque Specifications:

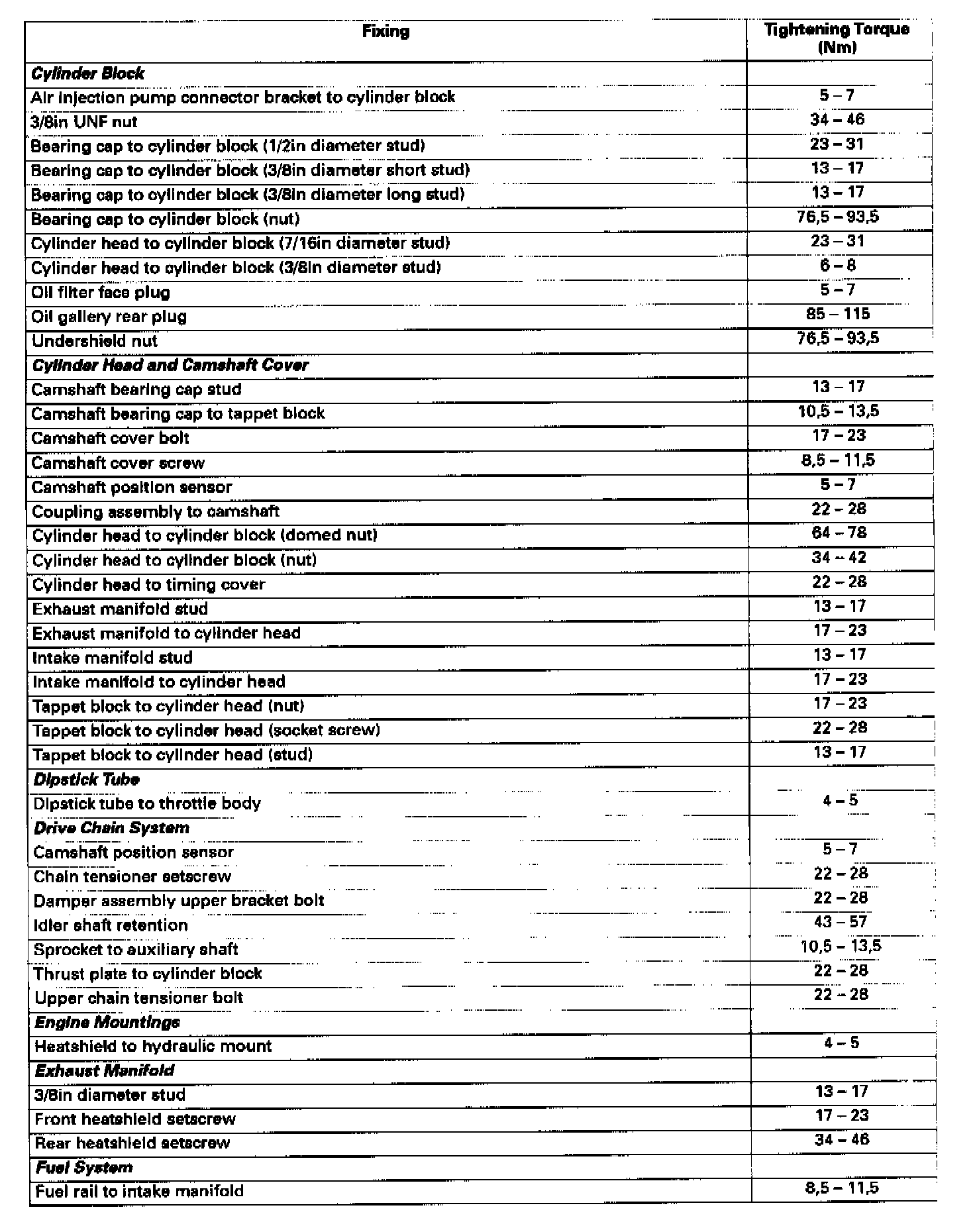

Torque Specifications:

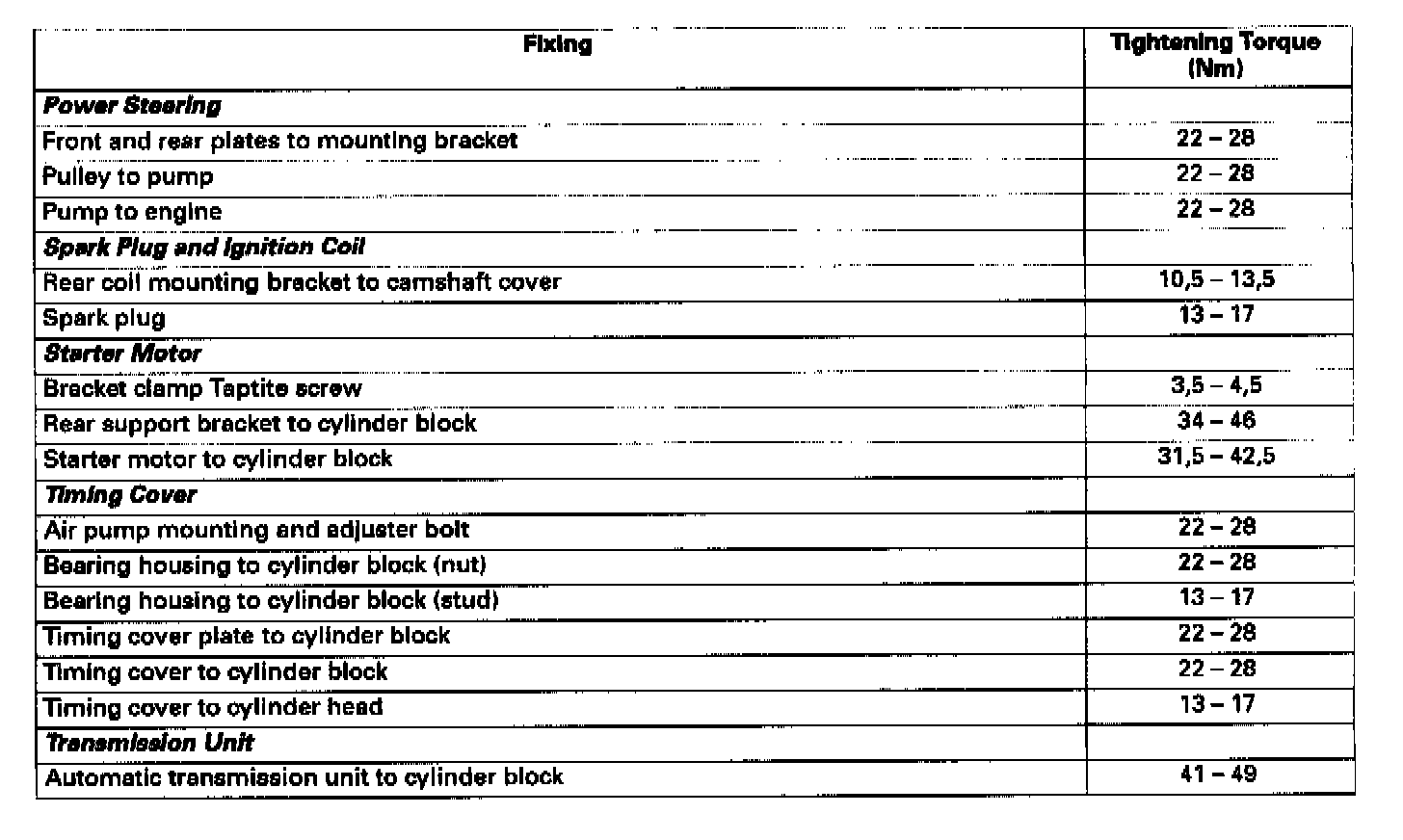

Torque Specifications (continued):

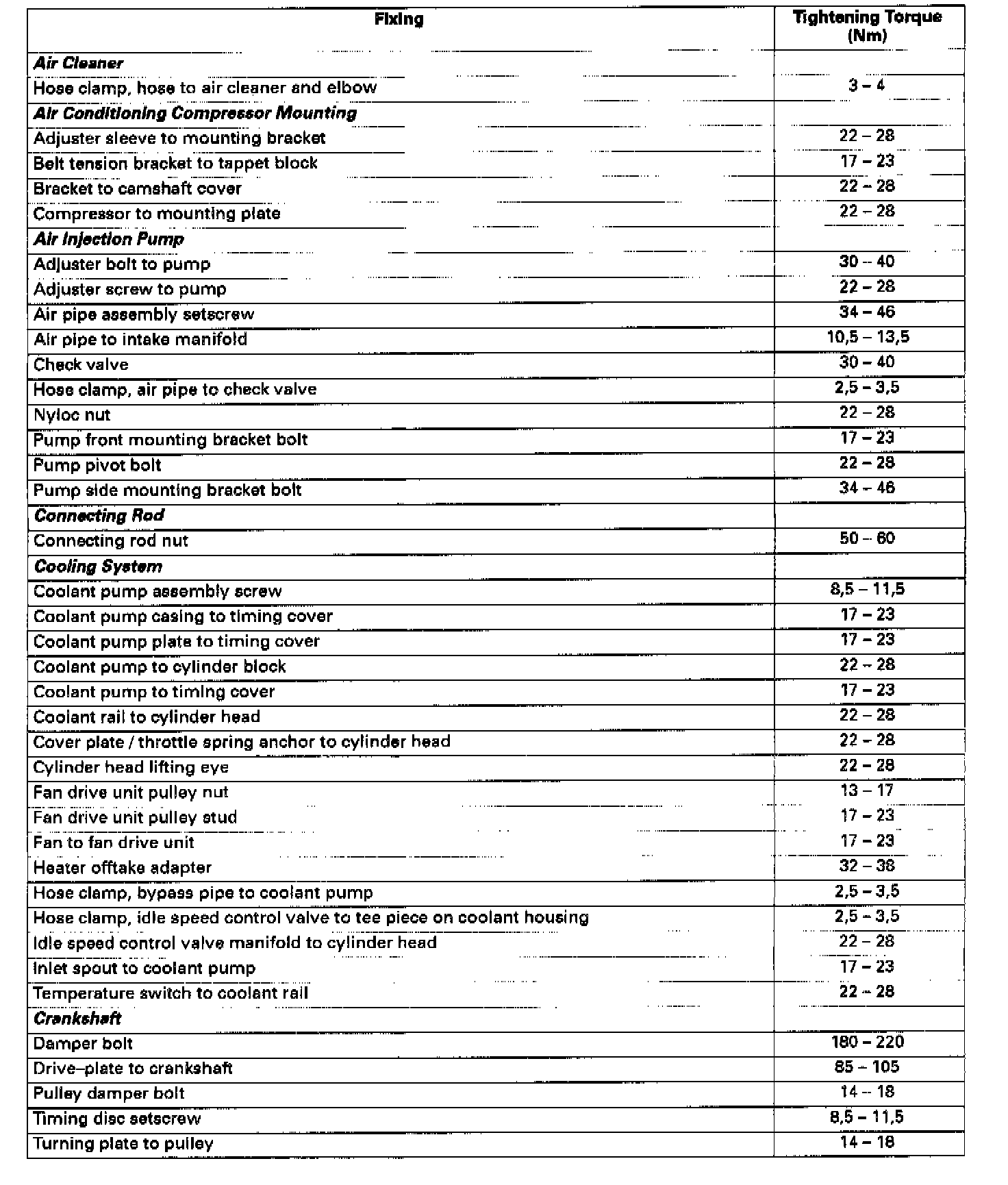

Torque Specifications:

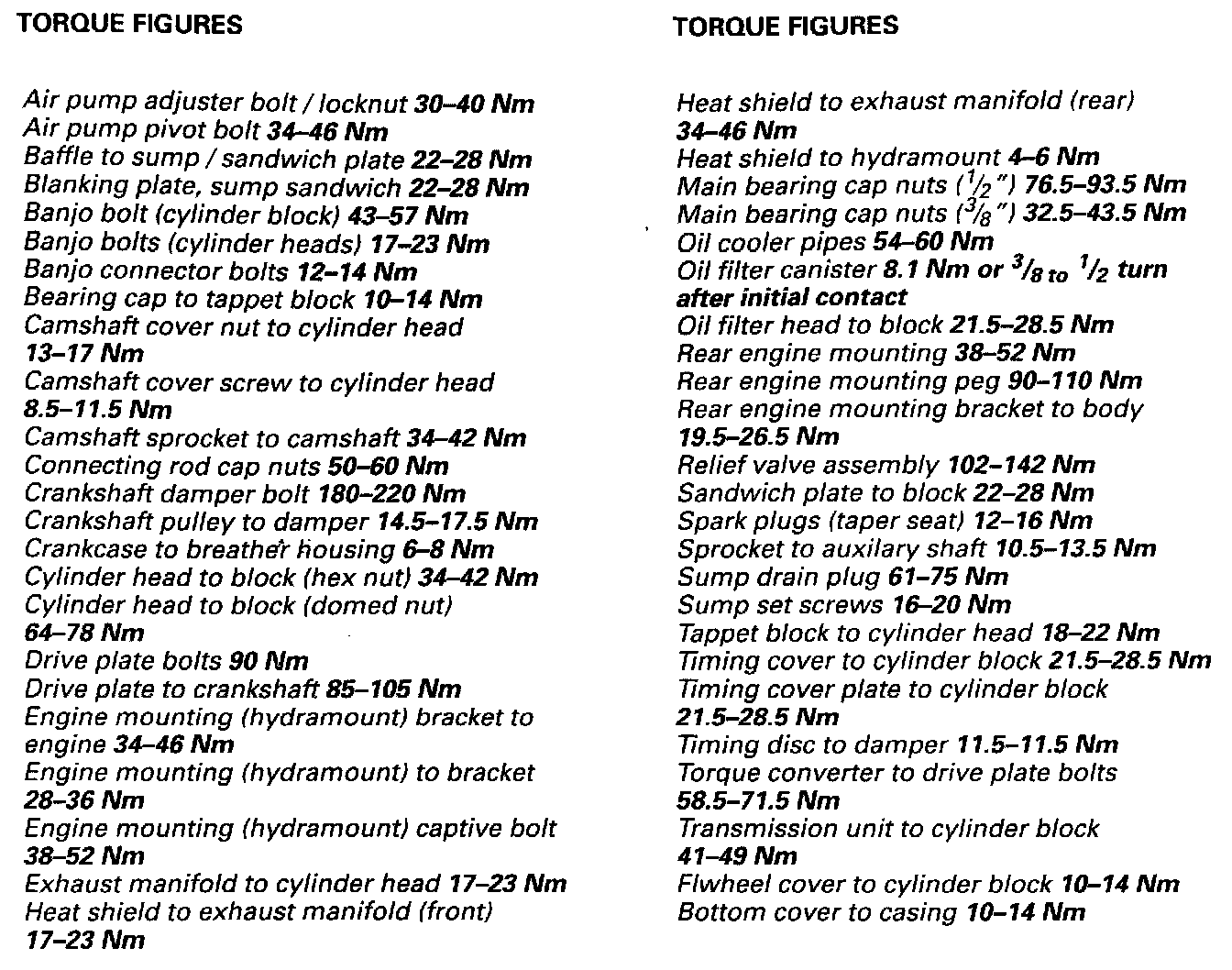

Torque Specifications:
