System Specifications

COOLING SYSTEM TORQUE FIGURES

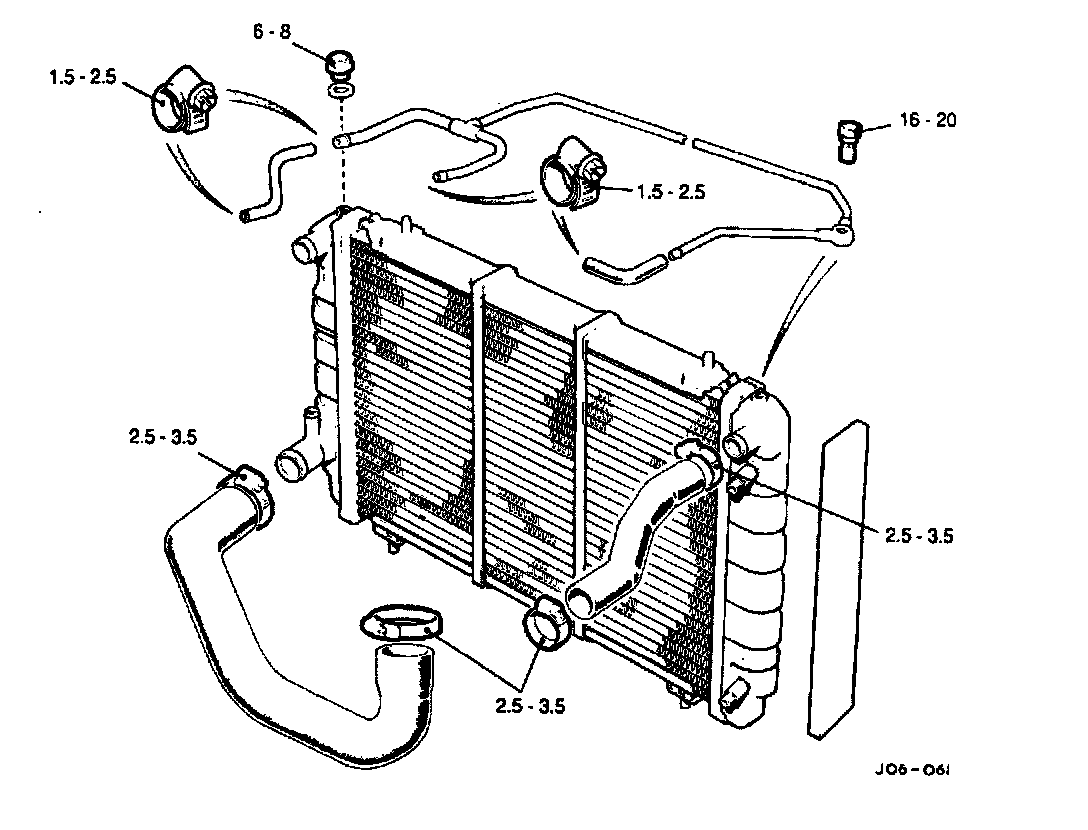

Radiator Torque Figures:

Cooling Fans Torque Figures:

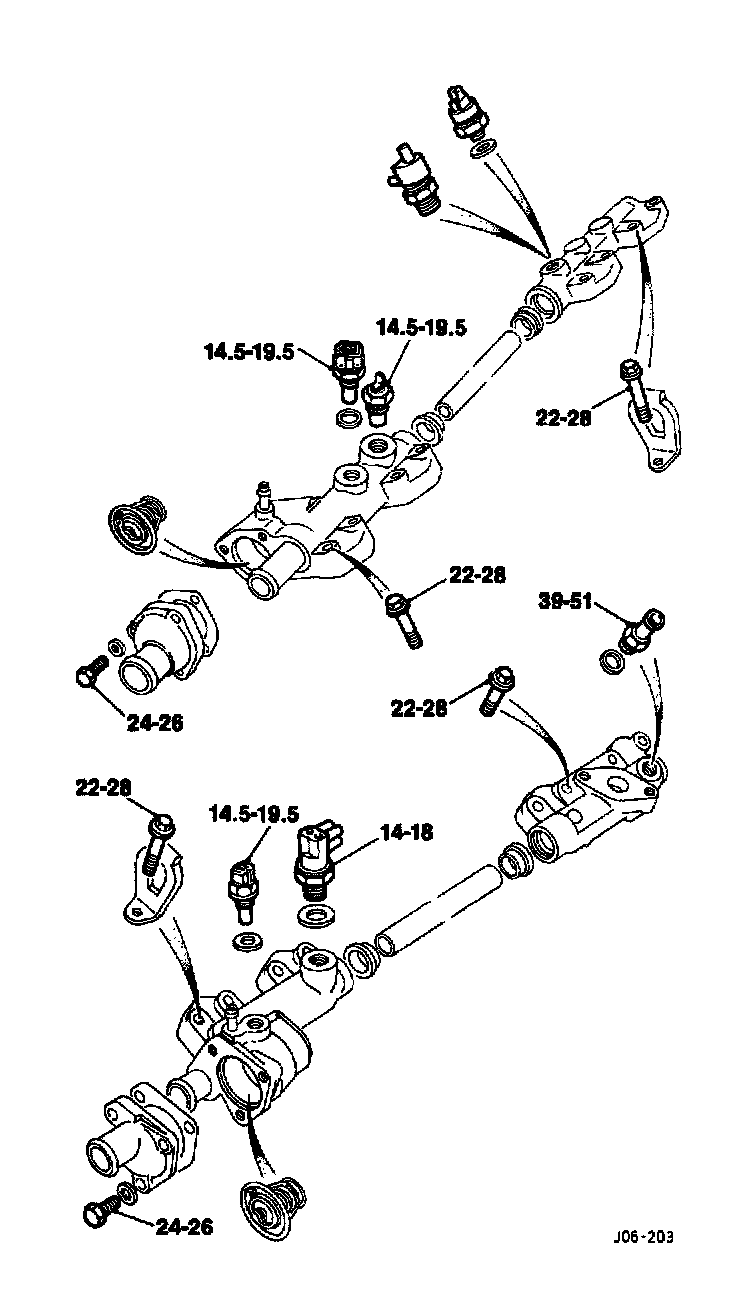

Thermostat Housing, Water Rails And Temperature Sensors:

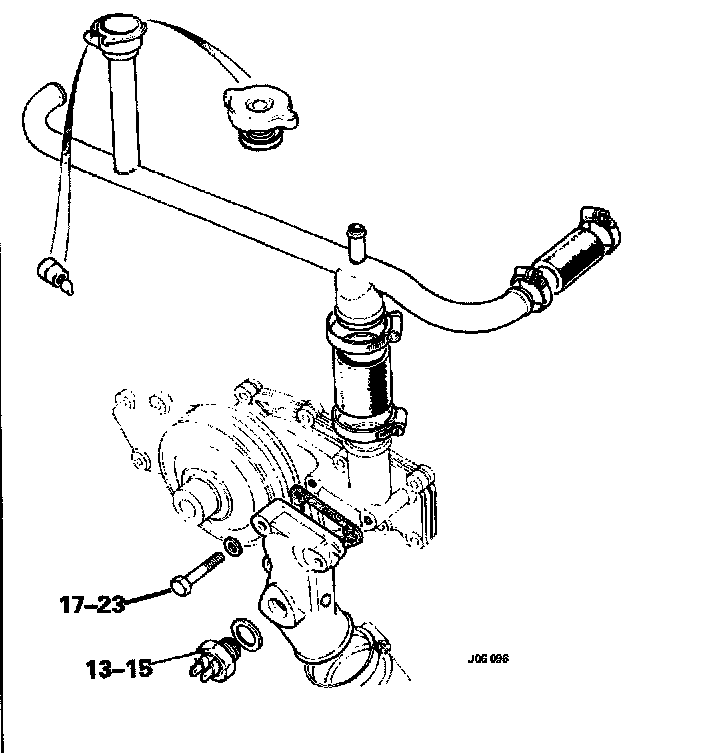

Water Pump And Inlet Spout:

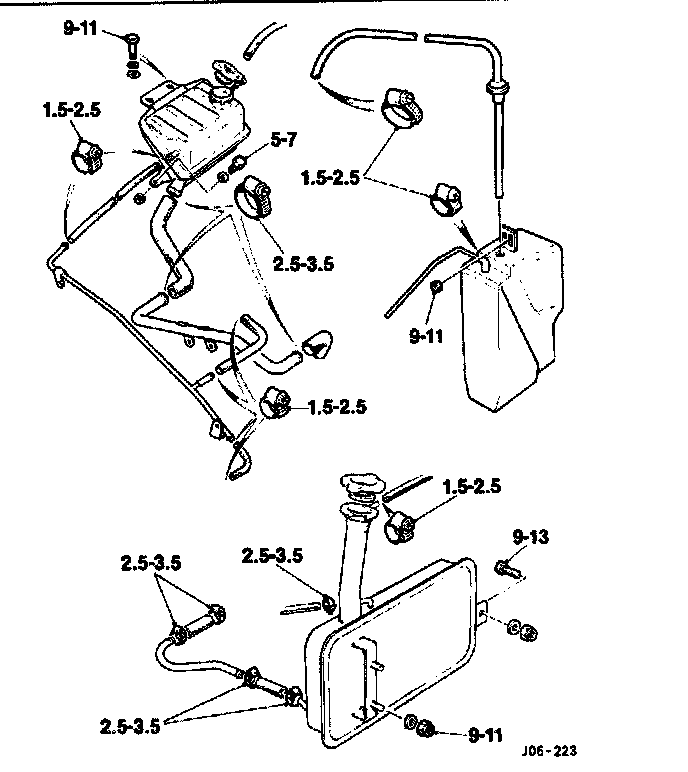

Expansion And Overflow Tanks:

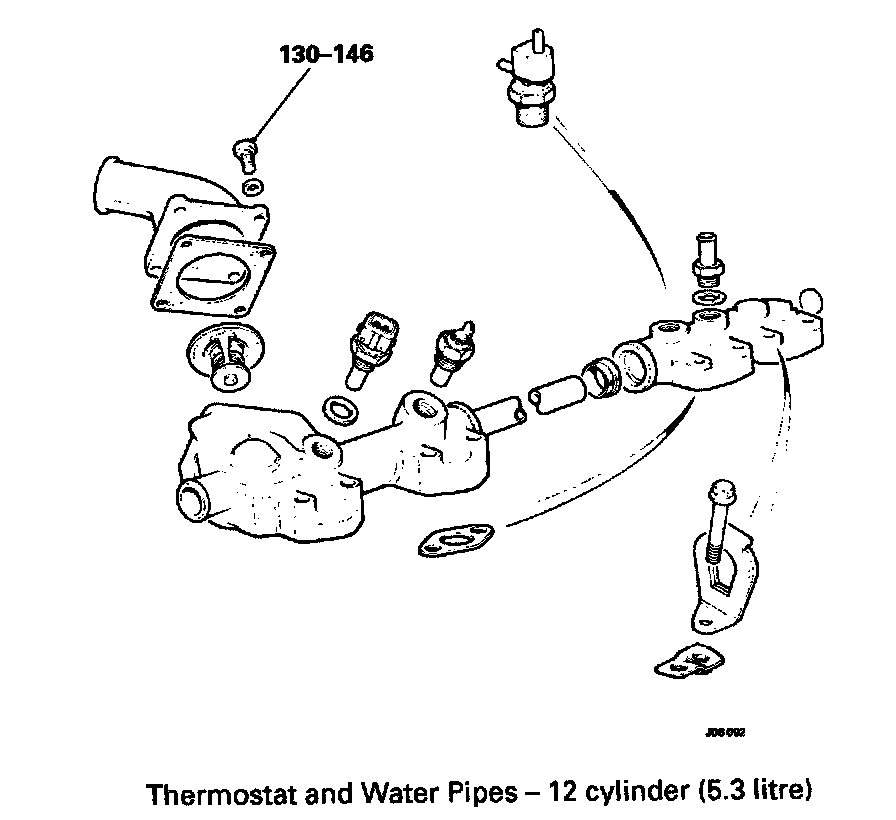

Thermostat And Water Pipes:
